Grade 7 math worksheets

Build your own math worksheets from 35,000+ problems for grades 3 to 12, from fractions to AP Calculus. Every problem comes with step-by-step solutions.

Angle relationships

Learning goals

  • Identifies relevant angle relationships.
  • Uses vertical, adjacent, complementary, supplementary, or parallel-line relationships as appropriate.
  • Sets up and solves equations for unknown angle measures.
  • Justifies each angle relationship used.

Click problems to add them to your worksheet.

Angle relationships 1
Quadrilateral \(ABCD\) is a rhombus. Opposite angles in a rhombus are congruent, and consecutive angles are supplementary. If \(\alpha = 74^\circ\) at vertex \(A\), find \(\beta\) at vertex \(B\).

Hints

- What relationship do consecutive angles in a rhombus have? - Use that relationship with the given \(74^\circ\) angle.

Solution

1. Consecutive angles in a rhombus are supplementary, so \(\alpha + \beta = 180^\circ\). 2. Substitute \(\alpha = 74^\circ\): \(74^\circ + \beta = 180^\circ\). 3. \(\beta = 106^\circ\).

Answer

\(\beta = 106^\circ\)
Angle relationships 2

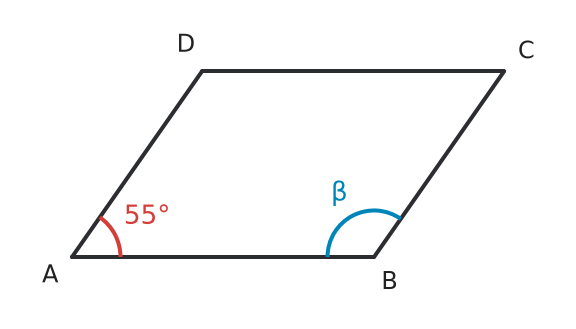

Quadrilateral \(ABCD\) is a parallelogram, and \(\angle A = 55^\circ\). Find \(\beta = \angle B\).

Hints

- What is the relationship between consecutive angles in a parallelogram? - Apply that relationship to \(\angle A\) and \(\angle B\).

Solution

1. Consecutive angles in a parallelogram are supplementary. 2. Therefore, \(\beta = 180^\circ - 55^\circ = 125^\circ\).

Answer

\(\beta = 125^\circ\)
Angle relationships 3
Two angles are complementary. One angle measures \(28^\circ\). What is the measure of the other angle?

Hints

- What total do complementary angles have? - Subtract the known angle from that total.

Solution

1. Complementary angles have a sum of \(90^\circ\). 2. The missing angle is \(90^\circ-28^\circ=62^\circ\).

Answer

\(62^\circ\)
Angle relationships 4
Adjacent angles \(\alpha\) and \(\beta\) form a linear pair. If \(\alpha=117^\circ\), find \(\beta\) and name the relationship between the two angle measures.

Hints

- What total is formed by a linear pair? - Which vocabulary word describes two angles whose measures have that total?

Solution

1. A linear pair has a sum of \(180^\circ\). 2. \(\beta=180^\circ-117^\circ=63^\circ\). 3. Because their measures sum to \(180^\circ\), the angles are supplementary.

Answer

\(\beta=63^\circ\). The angles are supplementary.
Angle relationships 5

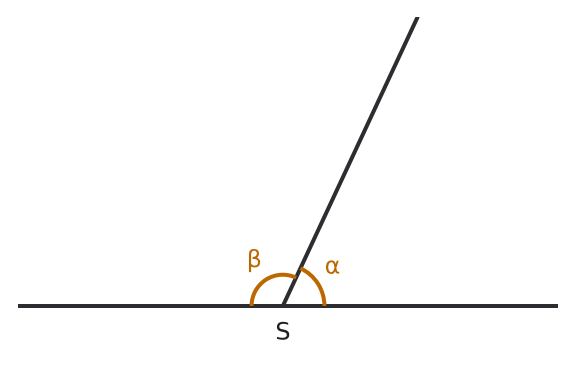

Two rays from \(S\) make a straight line. A third ray divides the straight angle into angles \(\alpha\) and \(\beta\). Do \(\alpha\) and \(\beta\) form a linear pair? Explain what makes them one.
Figure for problem 559757

Hints

- What parts must two adjacent angles share? - Look at the sides that are not shared. - How does a straight line help identify a linear pair?

Solution

1. The angles share vertex \(S\) and the dividing ray. 2. Their other sides are opposite rays on the same straight line. 3. They form a linear pair, so together they measure \(180^\circ\).

Answer

Yes. They share one side, and their other sides are opposite rays. Their measures add to \(180^\circ\).
Angle relationships 6

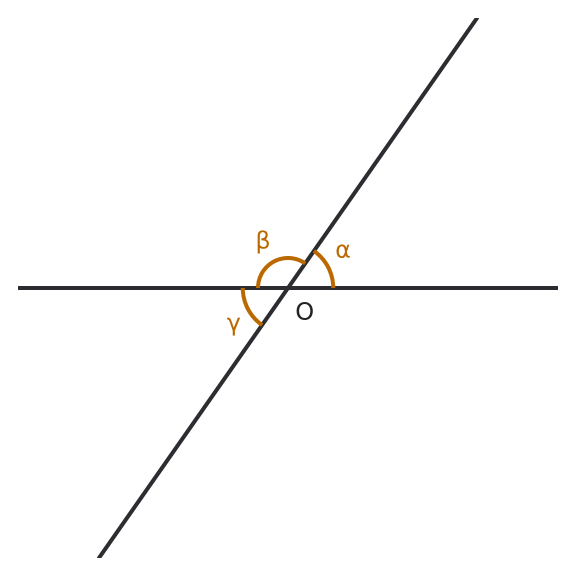

Two lines cross at \(O\). Which marked angle has the same measure as \(\alpha\): \(\beta\) or \(\gamma\)? State the angle relationship.
Figure for problem 559758

Hints

- Which angles lie across the vertex from each other? - Which marked angle shares a side with \(\alpha\)? - Recall the relationship between vertical angles.

Solution

1. Angle \(\gamma\) is opposite \(\alpha\) across the intersection. 2. Opposite angles formed by two intersecting lines are vertical angles and have equal measures. 3. Angle \(\beta\) is next to \(\alpha\) and is supplementary, not necessarily equal.

Answer

\(\gamma\), because \(\alpha\) and \(\gamma\) are vertical angles.
Angle relationships 7
One angle is \(38^\circ\). Its partner makes a right angle with it. Is the partner a complement or a supplement? How many degrees does it measure?

Hints

- What angle measure makes one right angle? - How are angles named when their measures add to that total? - Subtract the known measure from the full right angle.

Solution

1. Two angles that together make a right angle are complementary. 2. A right angle measures \(90^\circ\), so the missing measure is \(90^\circ-38^\circ=52^\circ\).

Answer

A complement, measuring \(52^\circ\).
Angle relationships 8
An angle measures \(215^\circ\). How many degrees short of a full turn is it? How many degrees past a straight angle is it?

Hints

- Picture the given angle beside a straight angle and a full turn. - Which benchmark is smaller than the given angle, and which is larger?

Solution

1. A full turn is \(360^\circ\), so the angle is \(360^\circ-215^\circ=145^\circ\) short of a full turn. 2. A straight angle is \(180^\circ\), so the angle is \(215^\circ-180^\circ=35^\circ\) past a straight angle.

Answer

It is \(145^\circ\) short of a full turn and \(35^\circ\) past a straight angle.
Angle relationships 9
A sector of a circle has an angle of \(75^\circ\). Find the angle \(\alpha\) for the rest of the circle and classify \(\alpha\).

Hints

- Subtract the given angle from \(360^\circ\). - A reflex angle is greater than \(180^\circ\) and less than \(360^\circ\).

Solution

1. A full circle measures \(360^\circ\). 2. The remaining angle is \(\alpha=360^\circ-75^\circ=285^\circ\). 3. Because \(180^\circ<285^\circ<360^\circ\), \(\alpha\) is a reflex angle.

Answer

\(\alpha=285^\circ\), a reflex angle
Angle relationships 10

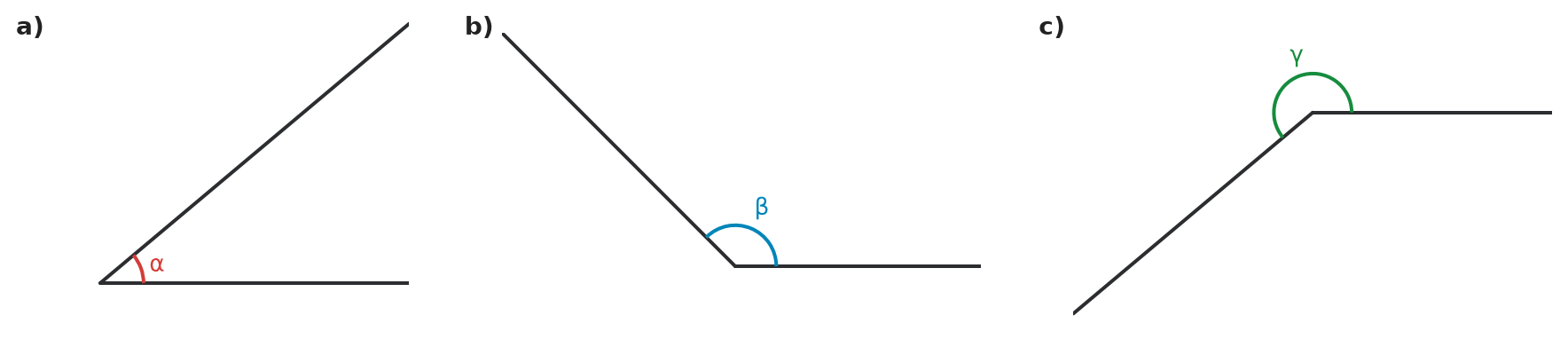

Use the marked angles to answer the questions. a) Which angle has an acute supplement? Find it. b) How far past a straight angle is \(\gamma\)? c) Which angle can be paired with another angle to make \(90^\circ\)? Find the missing angle.
Figure for problem 531464

Hints

- Compare each marked angle with a right angle and a straight angle. - A complement adds to \(90^\circ\), while a supplement adds to \(180^\circ\). - A reflex angle is more than \(180^\circ\); how much greater is \(\gamma\)?

Solution

1. For a supplement to be acute, the given angle must be between \(90^\circ\) and \(180^\circ\). That is \(\beta\), with supplement \(180^\circ-135^\circ=45^\circ\). 2. A straight angle measures \(180^\circ\). Therefore \(\gamma\) exceeds it by \(220^\circ-180^\circ=40^\circ\). 3. Only \(\alpha\) is less than \(90^\circ\), so it can have a complement: \(90^\circ-40^\circ=50^\circ\).

Answer

a) \(\beta\) has an acute supplement of \(45^\circ\). b) \(40^\circ\). c) \(\alpha\) has a complement of \(50^\circ\).
Angle relationships 11

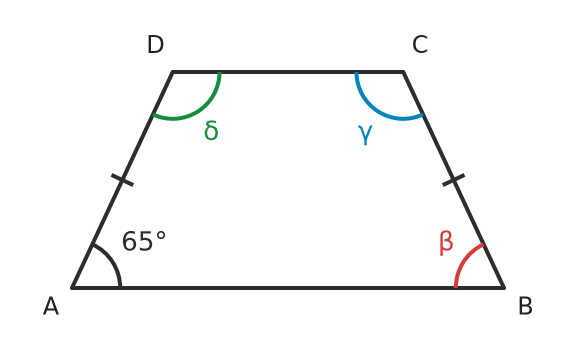

Isosceles trapezoid \(ABCD\) has parallel bases \(AB\) and \(CD\), with congruent legs \(AD\) and \(BC\), as shown. Find \(\beta\), \(\gamma\), and \(\delta\).
Figure for problem 531465

Hints

- What symmetry property does an isosceles trapezoid have? - How are consecutive interior angles related when lines are parallel? - Work along one leg at a time.

Solution

1. Base angles of an isosceles trapezoid are congruent, so \(\beta = \alpha = 65^\circ\). 2. Consecutive interior angles along each leg are supplementary because \(AB \parallel CD\). 3. Therefore, \(\delta = 180^\circ - 65^\circ = 115^\circ\). 4. Likewise, \(\gamma = 180^\circ - 65^\circ = 115^\circ\).

Answer

\(\beta = 65^\circ\), \(\gamma = 115^\circ\), and \(\delta = 115^\circ\).
Angle relationships 12

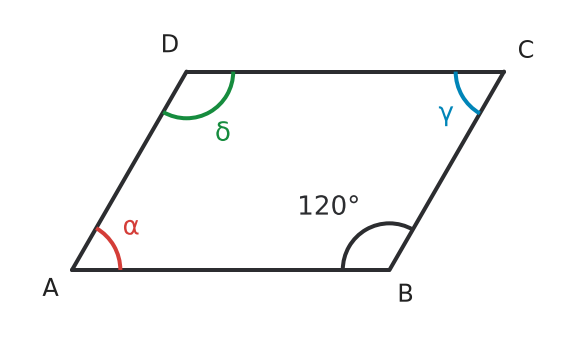

Parallelogram \(ABCD\) is shown with one interior angle given. Find \(\alpha\), \(\gamma\), and \(\delta\).
Figure for problem 531466

Hints

- What is true about opposite angles in a parallelogram? - How are consecutive angles in a parallelogram related? - You may also use the quadrilateral angle sum.

Solution

1. Opposite angles of a parallelogram are congruent, so \(\delta = \beta = 120^\circ\). 2. Consecutive angles of a parallelogram are supplementary. 3. Therefore, \(\alpha = 180^\circ - 120^\circ = 60^\circ\). 4. Since opposite angles are congruent, \(\gamma = \alpha = 60^\circ\).

Answer

\(\alpha = 60^\circ\), \(\gamma = 60^\circ\), and \(\delta = 120^\circ\).
Angle relationships 13

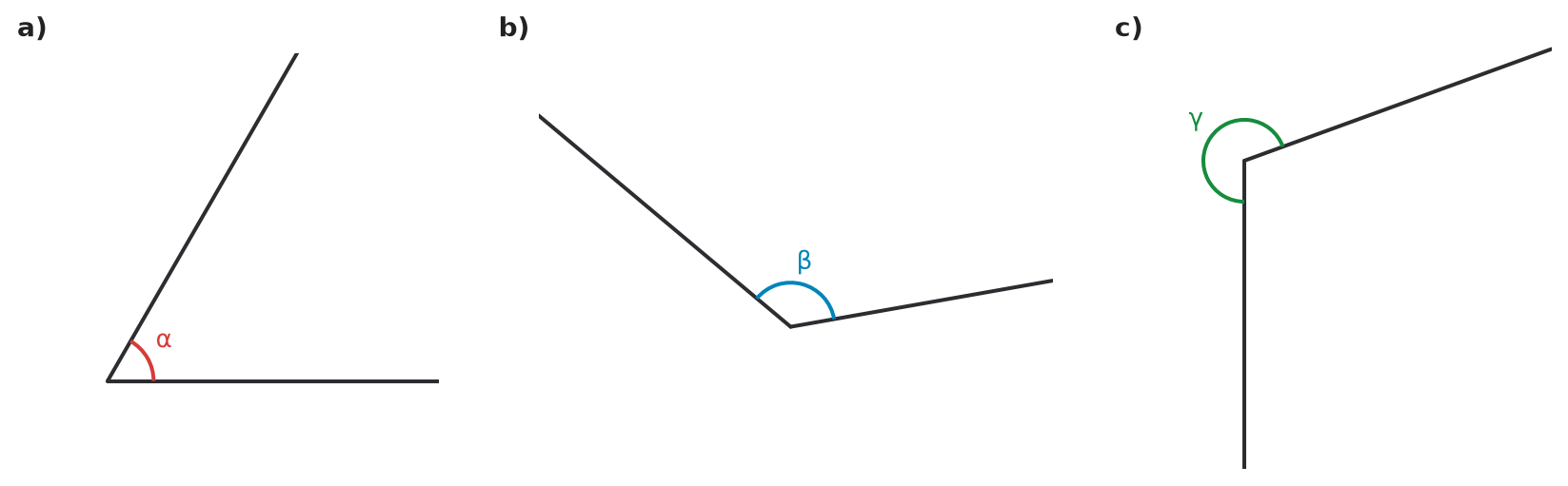

Use the diagrams to classify \(\alpha\), \(\beta\), and \(\gamma\) as acute, right, obtuse, straight, or reflex. Then answer: a) Which marked angle or angles can have a positive complementary angle? b) Which marked angle or angles can have a positive supplementary angle? c) Explain why \(\gamma\) has neither a positive complement nor a positive supplement.
Figure for problem 531475

Hints

- Classify each angle by comparing it with a right angle and a straight angle. - A positive complement is possible only for an angle smaller than \(90^\circ\). - A positive supplement is possible only for an angle smaller than \(180^\circ\).

Solution

1. Angle \(\alpha\) is acute, \(\beta\) is obtuse, and \(\gamma\) is reflex. 2. Only an angle less than \(90^\circ\) can have a positive complement, so only \(\alpha\) can. 3. Any angle less than \(180^\circ\) can have a positive supplement, so \(\alpha\) and \(\beta\) can. 4. Since \(\gamma>180^\circ\), subtracting it from either \(90^\circ\) or \(180^\circ\) would give a negative value, so it has neither a positive complement nor a positive supplement.

Answer

\(\alpha\): acute; \(\beta\): obtuse; \(\gamma\): reflex a) \(\alpha\) only b) \(\alpha\) and \(\beta\) c) \(\gamma>180^\circ\), so neither \(90^\circ-\gamma\) nor \(180^\circ-\gamma\) is positive.
Angle relationships 14

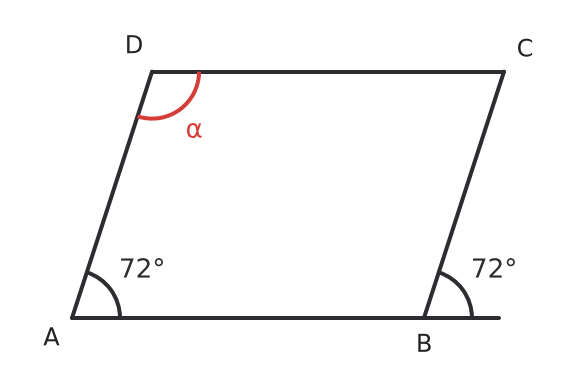

Quadrilateral \(ABCD\) is a parallelogram. Use the given interior angle in the diagram to find \(\alpha\) at \(D\), and justify your calculation.
Figure for problem 531477

Hints

- How are consecutive interior angles in a parallelogram related? - What total must the angles at \(A\) and \(D\) have? - Write an equation containing \(\alpha\).

Solution

1. Consecutive interior angles of a parallelogram are supplementary because opposite sides are parallel. 2. The angles at \(A\) and \(D\) are consecutive, so \(72^\circ + \alpha = 180^\circ\). 3. Therefore, \(\alpha = 180^\circ - 72^\circ = 108^\circ\).

Answer

\(\alpha = 108^\circ\)
Angle relationships 15

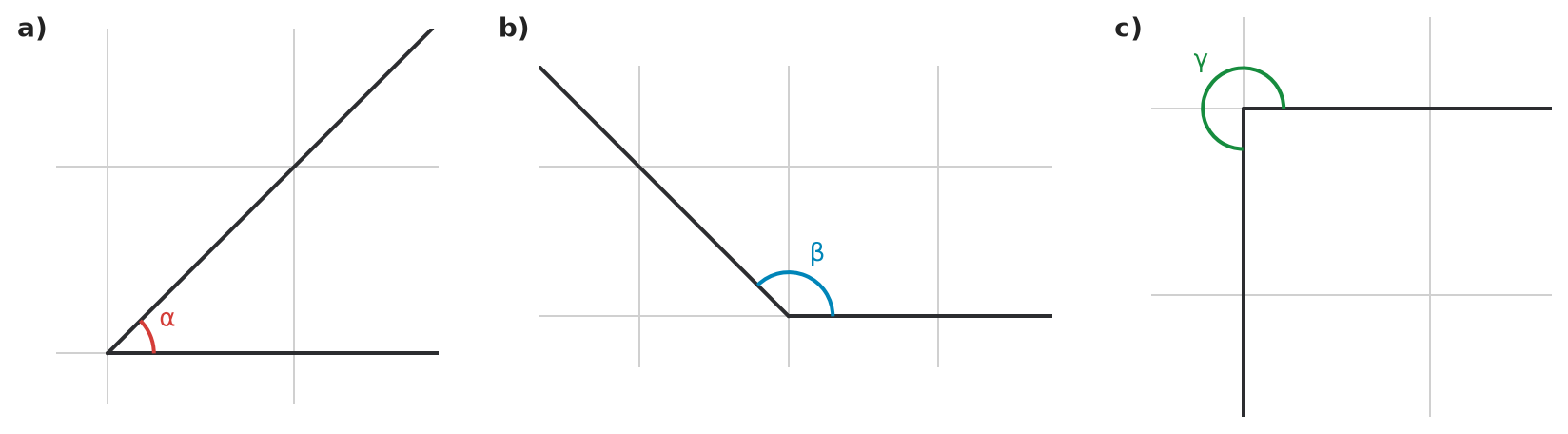

Each diagram shows an angle on a square grid. 1. Find the exact measures of \(\alpha\), \(\beta\), and \(\gamma\). 2. Classify each angle as acute, right, obtuse, straight, or reflex.
Figure for problem 531483

Hints

- A vertical and horizontal grid line form \(90^\circ\). - A square’s diagonal divides a right angle into two equal angles. - Pay attention to the direction in which the reflex angle is marked.

Solution

1. In a), the diagonal of a square divides a right angle in half, so \(\alpha=45^\circ\). 2. In b), the ray points along the northwest diagonal, so \(\beta=90^\circ+45^\circ=135^\circ\). 3. In c), the angle is measured counterclockwise from the right-pointing ray to the downward ray, which is three-fourths of a full turn: \(\gamma=270^\circ\). 4. Therefore, \(\alpha\) is acute, \(\beta\) is obtuse, and \(\gamma\) is reflex.

Answer

a) \(\alpha=45^\circ\), acute b) \(\beta=135^\circ\), obtuse c) \(\gamma=270^\circ\), reflex
Angle relationships 16

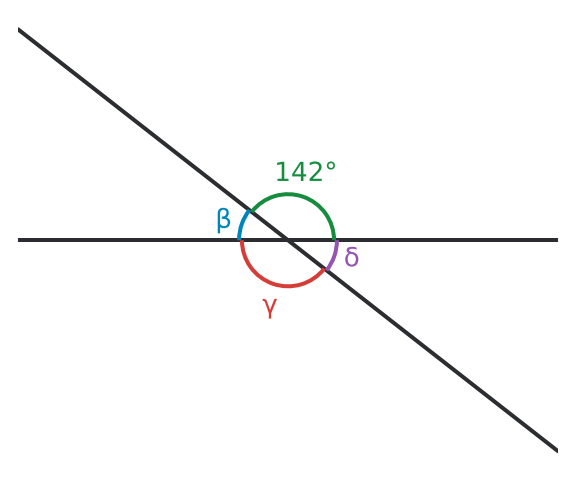

Two lines intersect. One of the four angles measures \(142^\circ\). Find \(\beta\), \(\gamma\), and \(\delta\). What are the pairs of opposite angles at the intersection called?
Figure for problem 532978

Hints

- What angle measure forms a straight line? - How are adjacent angles at an intersection related? - What is true about opposite angles at an intersection?

Solution

1. Angle \(\beta\) forms a linear pair with the \(142^\circ\) angle, so \(\beta = 180^\circ - 142^\circ = 38^\circ\). 2. Angle \(\gamma\) is vertical to the \(142^\circ\) angle, so \(\gamma = 142^\circ\). 3. Angle \(\delta\) is vertical to \(\beta\), so \(\delta = 38^\circ\). 4. Opposite angles formed by two intersecting lines are called vertical angles.

Answer

\(\beta = 38^\circ\), \(\gamma = 142^\circ\), and \(\delta = 38^\circ\). The opposite angle pairs are vertical angles.
Angle relationships 17

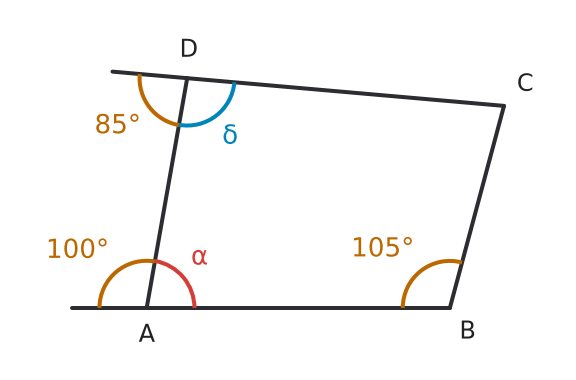

At vertex \(A\) of a quadrilateral, interior angle \(\alpha\) and an adjacent \(100^\circ\) exterior angle form a linear pair. At vertex \(D\), interior angle \(\delta\) and an adjacent \(85^\circ\) exterior angle form a linear pair. Find \(\alpha\) and \(\delta\).

Hints

- What is the sum of two angles that form a linear pair? - Treat the two vertices independently; the quadrilateral angle sum is not needed.

Solution

1. Since \(\alpha\) and \(100^\circ\) form a linear pair, \(\alpha = 180^\circ - 100^\circ = 80^\circ\). 2. Since \(\delta\) and \(85^\circ\) form a linear pair, \(\delta = 180^\circ - 85^\circ = 95^\circ\).

Answer

\(\alpha = 80^\circ\) and \(\delta = 95^\circ\)
Angle relationships 18

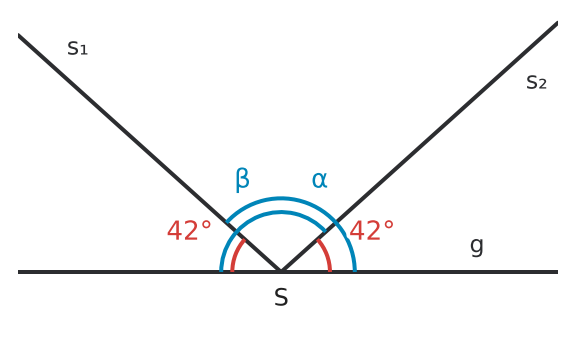

Point \(S\) lies on line \(g\). Ray \(s_1\) forms a \(42^\circ\) angle with the left ray of \(g\), and ray \(s_2\) forms a \(42^\circ\) angle with the right ray of \(g\). Find the two adjacent angles \(\alpha\) and \(\beta\) that each form a linear pair with one of the \(42^\circ\) angles.

Hints

- What is the total measure of a linear pair? - Each unknown angle is adjacent to a \(42^\circ\) angle on a straight line.

Solution

1. Each unknown angle and an adjacent \(42^\circ\) angle form a linear pair, so their measures sum to \(180^\circ\). 2. \(\alpha = 180^\circ - 42^\circ = 138^\circ\). 3. Likewise, \(\beta = 180^\circ - 42^\circ = 138^\circ\).

Answer

\(\alpha = 138^\circ\) and \(\beta = 138^\circ\)
Angle relationships 19
Two angles are equal. Each has a neighboring angle that forms a linear pair with it. Explain why the two neighboring angles must also be equal.

Hints

- What stays the same when equal angles are part of two different straight angles? - Let both given angles measure \(x^\circ\). - How would you describe the unknown angle in either pair?

Solution

1. Each remaining angle makes a straight angle with one of the given congruent angles. 2. If each given angle measures \(x^\circ\), each remaining angle measures \(180^\circ-x^\circ\). 3. Both remaining angles therefore have the same measure and are congruent.

Answer

Both remaining angles are supplements of congruent angles, so each measures \(180^\circ-x^\circ\). They are congruent.
Angle relationships 20

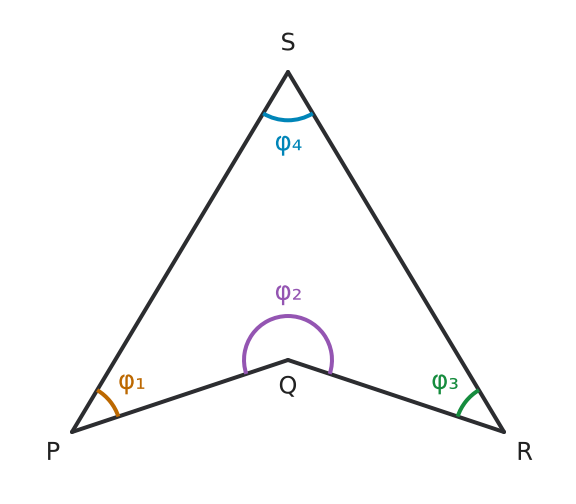

Consider quadrilateral \(PQRS\). a) Which marked interior angle is reflex? b) Which marked angles can have positive supplements? c) Which marked angles can have positive complements? d) Explain why the reflex interior angle has neither a positive complement nor a positive supplement.
Figure for problem 533110

Hints

- Locate the inward-pointing vertex to identify the reflex interior angle. - Decide which marked angles are below \(90^\circ\) and which are below \(180^\circ\). - Connect those comparisons to the definitions of complement and supplement.

Solution

1. The inward vertex is \(Q\), so \(\phi_2\) is greater than \(180^\circ\) and is reflex. 2. Angles \(\phi_1\), \(\phi_3\), and \(\phi_4\) are acute, so each is less than \(90^\circ\). 3. Therefore, \(\phi_1\), \(\phi_3\), and \(\phi_4\) each have both a positive complement and a positive supplement. 4. Since \(\phi_2>180^\circ\), it has neither a positive complement nor a positive supplement.

Answer

a) \(\phi_2\) b) \(\phi_1,\phi_3,\phi_4\) c) \(\phi_1,\phi_3,\phi_4\) d) \(\phi_2>180^\circ\), so subtracting it from \(90^\circ\) or \(180^\circ\) cannot give a positive angle measure.
Angle relationships 21
Two lines intersect. One of the four angles measures \(32^\circ\). Find the measure of its vertical angle and the measures of its two adjacent angles.

Hints

- Which angles are vertical when two lines intersect? - What is the sum of the measures in a linear pair?

Solution

1. Vertical angles are congruent, so the opposite angle also measures \(32^\circ\). 2. Each adjacent angle forms a linear pair with the given angle, so its measure is \(180^\circ - 32^\circ = 148^\circ\). 3. Therefore, both adjacent angles measure \(148^\circ\).

Answer

The vertical angle measures \(32^\circ\), and each adjacent angle measures \(148^\circ\).
Angle relationships 22

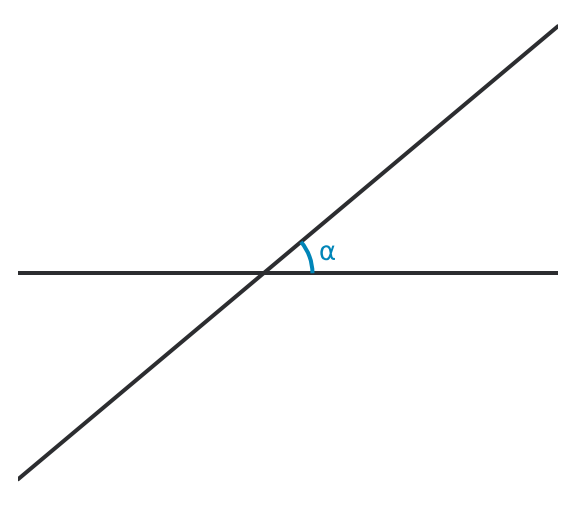

At the intersection of two lines, angle \(\alpha\) is one ninth of the total measure of all four angles. Find \(\alpha\) and the measure of an angle adjacent to it.
Figure for problem 536640

Hints

- What is the total angle measure around a point? - First find one ninth of that total. - Then use the relationship between angles in a linear pair.

Solution

1. The four angles around the intersection total \(360^\circ\). 2. Find one ninth of the total: \(\alpha = \frac{1}{9} \cdot 360^\circ = 40^\circ\). 3. An adjacent angle forms a linear pair with \(\alpha\), so its measure is \(180^\circ - 40^\circ = 140^\circ\).

Answer

\(\alpha = 40^\circ\), and an adjacent angle measures \(140^\circ\).
Angle relationships 23
Two lines intersect. One angle measures \(68^\circ\). Priya says, “Its vertical angle must be supplementary to it.” Is Priya correct? Find the measure of the vertical angle and the measure of either adjacent angle.

Hints

- Separate the relationships “vertical” and “adjacent.” - Which pair is congruent, and which pair forms a straight angle? - Use the relationship before doing any subtraction.

Solution

1. Vertical angles are congruent, so the vertical angle also measures \(68^\circ\). 2. Adjacent angles at the intersection form linear pairs with the \(68^\circ\) angle. 3. Each adjacent angle measures \(180^\circ-68^\circ=112^\circ\). 4. Priya is incorrect: the vertical angle is congruent to the given angle, while an adjacent linear-pair angle is supplementary to it.

Answer

Priya is incorrect. The vertical angle is \(68^\circ\), and each adjacent angle is \(112^\circ\).
Angle relationships 24
Angle \(A\) measures \(42^\circ\). Match each measure below to its relationship with angle \(A\): complementary, supplementary, or congruent. \(48^\circ\), \(138^\circ\), \(42^\circ\)

Hints

- Write the target total for a complementary pair and for a supplementary pair. - “Congruent angles” means their measures are equal.

Solution

1. A complementary angle has measure \(90^\circ-42^\circ=48^\circ\). 2. A supplementary angle has measure \(180^\circ-42^\circ=138^\circ\). 3. A congruent angle has the same measure, \(42^\circ\).

Answer

Complementary: \(48^\circ\) Supplementary: \(138^\circ\) Congruent: \(42^\circ\)
Angle relationships 25
Nora says, “The complement of \(63^\circ\) is \(117^\circ\) because \(180^\circ-63^\circ=117^\circ\).” Explain the error. Then find both the complement and the supplement of \(63^\circ\).

Hints

- Which total belongs to complementary angles? - Which total belongs to supplementary angles? - Check which of Nora's calculations actually matches her result.

Solution

1. Nora used the total for supplementary angles, \(180^\circ\), instead of the total for complementary angles, \(90^\circ\). 2. The complement is \(90^\circ-63^\circ=27^\circ\). 3. The supplement is \(180^\circ-63^\circ=117^\circ\).

Answer

Nora used the supplementary total instead of the complementary total. The complement is \(27^\circ\), and the supplement is \(117^\circ\).
Angle relationships 26
Two lines cross at \(P\). Without using the vertical angles rule, explain why \(\angle APB\) and \(\angle CPD\) have equal measures. Use two linear pairs.
Figure for problem 554931

Hints

- Which angle is next to both angles you want to compare? - What sum do two angles in a linear pair have? - What can you conclude when the same angle is subtracted from two equal sums?

Solution

1. Angles \(APB\) and \(BPC\) form a linear pair, so \(m\angle APB+m\angle BPC=180^\circ\). 2. Angles \(BPC\) and \(CPD\) also form a linear pair, so \(m\angle BPC+m\angle CPD=180^\circ\). 3. Subtracting the same \(m\angle BPC\) from both sums gives \(m\angle APB=m\angle CPD\).

Answer

Both angles are \(180^\circ-m\angle BPC\), so \(m\angle APB=m\angle CPD\).
Angle relationships 27

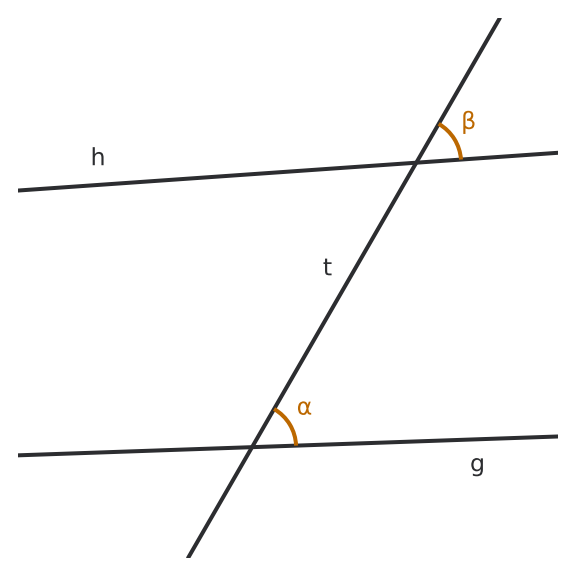

Two slanted lines in a drawing look parallel. A transversal crosses them, and two corresponding angles look equal. Can you conclude from the drawing alone that these angles are equal? Explain what additional fact you would need.
Figure for problem 559760

Hints

- Can you trust exact measurements from a drawing that gives no angles? - Could nearly parallel-looking lines meet if extended? - What would make your answer a proven fact rather than a guess from the picture?

Solution

1. The appearance of two lines does not prove they are parallel. 2. Corresponding angles are guaranteed equal when a transversal crosses parallel lines. 3. The needed information is that the two lines are parallel, given or shown by reliable markings.

Answer

No. The drawing alone is not enough; the two lines must be known to be parallel.
Angle relationships 28
Two angles share a side and form a straight angle. One is \(74^\circ\). Each angle is bisected. Explain why the two smaller angles next to their shared side make a right angle.

Hints

- What total do the original two angles have? - What happens to each measure when its angle is bisected? - Can you halve the combined total instead of working with each angle separately?

Solution

1. The other angle measures \(180^\circ-74^\circ=106^\circ\). 2. Bisecting gives adjacent halves of \(37^\circ\) and \(53^\circ\). 3. They add to \(90^\circ\). In general, half of two angles whose sum is \(180^\circ\) always totals \(90^\circ\).

Answer

The halves are \(37^\circ\) and \(53^\circ\), totaling \(90^\circ\). Halving supplementary angles makes complementary halves.
Angle relationships 29

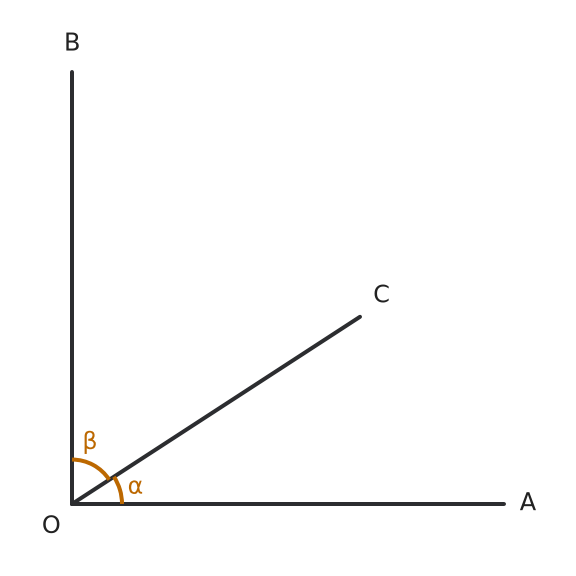

At \(O\), angle \(AOB\) is a right angle. Segment \(OC\) splits it into two angles. A student says the marked angles are supplementary because they are adjacent. Identify the error and give the correct relationship.
Figure for problem 559762

Hints

- What information does the question give about the whole angle \(AOB\)? - Does sharing a side always make two angles supplementary? - What total does each of the two relationship names describe?

Solution

1. The angles are adjacent because they share vertex \(O\) and side \(OC\). 2. Their outer sides \(OA\) and \(OB\) make a right angle, not a straight angle. 3. Their sum is \(90^\circ\), so they are complementary, not supplementary.

Answer

Being adjacent does not make angles supplementary. These two angles form a right angle, so they are complementary.
Angle relationships 30

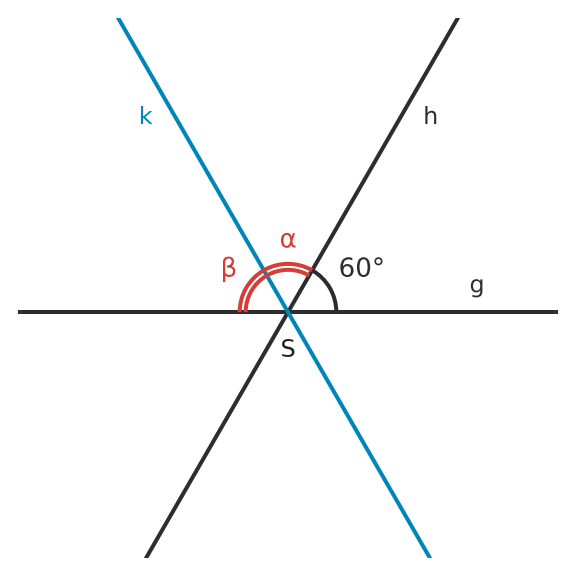

Line \(k\) bisects the angle marked by \(\alpha\) and \(\beta\). Find both angles.
Figure for problem 531455

Hints

- Which two adjacent angles together make a straight angle? - Find the whole angle that line \(k\) divides. - What does an angle bisector do to the whole angle?

Solution

1. The given \(60^\circ\) angle and the angle from \(h\) to the left-hand ray of \(g\) make a straight angle. 2. That larger angle measures \(180^\circ-60^\circ=120^\circ\). 3. Line \(k\) divides it into two equal angles, so \(\alpha=\beta=120^\circ\div2=60^\circ\).

Answer

\(\alpha=60^\circ\) and \(\beta=60^\circ\).
Angle relationships 31

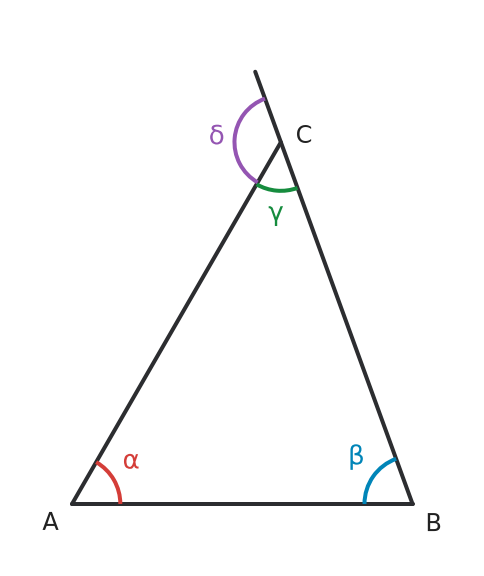

A triangle has interior angles \(\alpha\), \(\beta\), and \(\gamma\). Exterior angle \(\delta\) is shown at vertex \(C\). Which statement is **not** always true? Explain your choice. a) \(\delta = \alpha + \beta\) b) \(\delta = 180^\circ - \gamma\) c) \(\delta + \gamma = 180^\circ\) d) \(\delta = \beta + \gamma\)
Figure for problem 531462

Hints

- What relationship connects an interior angle and its adjacent exterior angle? - What does the exterior angle theorem state? - Test the equations with a triangle whose angles have three different measures.

Solution

1. By the exterior angle theorem, an exterior angle of a triangle equals the sum of the two remote interior angles. Therefore, \(\delta = \alpha + \beta\), so statement a) is true. 2. Angles \(\gamma\) and \(\delta\) form a linear pair, so \(\delta + \gamma = 180^\circ\). Equivalently, \(\delta = 180^\circ - \gamma\). Therefore, statements b) and c) are true. 3. The equation \(\delta = \beta + \gamma\) would require \(\alpha = \gamma\), which is not true for every triangle. Therefore, statement d) is not always true.

Answer

d) \(\delta = \beta + \gamma\) is not always true.
Angle relationships 32

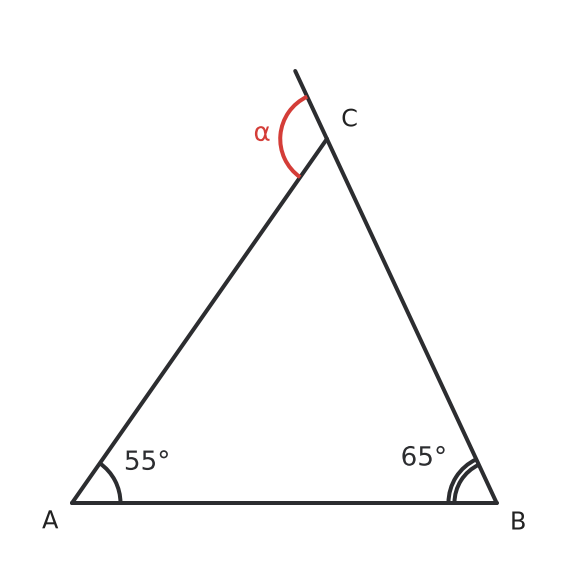

In \(\triangle ABC\), two interior angle measures are shown. Exterior angle \(\alpha\) is marked at vertex \(C\). Find \(m\angle \alpha\) in two different ways. Justify each method with an angle theorem.
Figure for problem 531471

Hints

- What is the sum of the interior angles of a triangle? - After finding the interior angle at \(C\), how can you use its linear pair? - Which theorem relates an exterior angle directly to the two remote interior angles?

Solution

1. Method 1: The triangle angle sum gives the interior angle at \(C\): \(180^\circ - 55^\circ - 65^\circ = 60^\circ\). This angle and \(\alpha\) form a linear pair, so \(m\angle \alpha = 180^\circ - 60^\circ = 120^\circ\). 2. Method 2: By the exterior angle theorem, an exterior angle equals the sum of the two remote interior angles. Therefore, \(m\angle \alpha = 55^\circ + 65^\circ = 120^\circ\).

Answer

\(m\angle \alpha = 120^\circ\)
Angle relationships 33

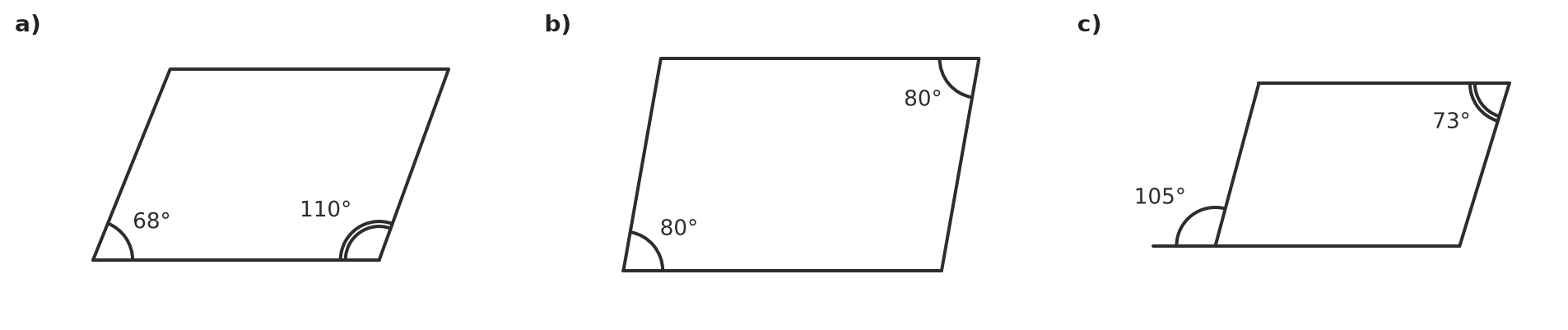

Three sets of angle measurements for a quadrilateral are listed below. For each set, decide whether at least one parallelogram could have those measurements. Justify your decision using angle properties of parallelograms. a) Two consecutive interior angles measure \(68^\circ\) and \(110^\circ\). b) One pair of opposite interior angles both measure \(80^\circ\). c) An exterior angle at one vertex measures \(105^\circ\), and the opposite interior angle measures \(73^\circ\).

Hints

- Recall what must be true about consecutive angles in every parallelogram. - Recall what must be true about opposite angles in every parallelogram. - For the exterior-angle case, first determine the adjacent interior angle.

Solution

1. In a parallelogram, consecutive interior angles are supplementary. For a), \(68^\circ+110^\circ=178^\circ\), so these measurements cannot occur in a parallelogram. 2. In a parallelogram, opposite angles are congruent. For b), opposite angles of \(80^\circ\) are consistent with a parallelogram; the other pair could each be \(100^\circ\). Thus at least one parallelogram can have these measurements. 3. For c), the interior angle adjacent to the \(105^\circ\) exterior angle is \(180^\circ-105^\circ=75^\circ\). 4. Its opposite interior angle is given as \(73^\circ\). Since \(75^\circ\ne73^\circ\), these measurements cannot occur in a parallelogram.

Answer

a) No; \(68^\circ+110^\circ\ne180^\circ\). b) Yes; a parallelogram can have opposite angles of \(80^\circ\) and the other opposite pair of \(100^\circ\). c) No; the interior angle next to the \(105^\circ\) exterior angle is \(75^\circ\), not equal to its opposite \(73^\circ\) angle.
Angle relationships 34

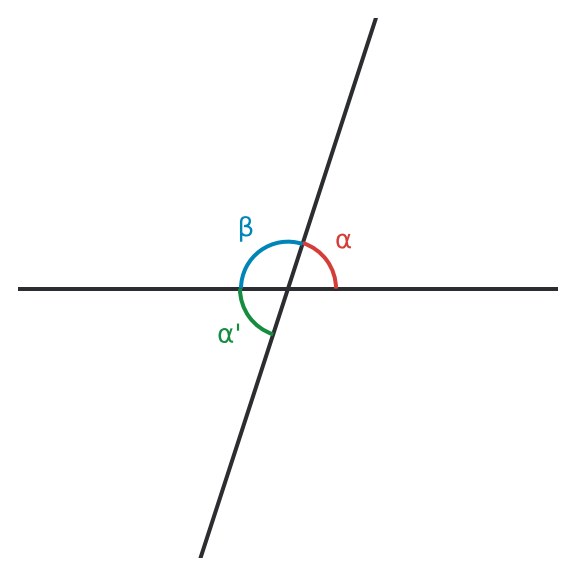

Consider the intersecting lines. Corinna says, “Because \(\alpha\) and \(\beta\) form a linear pair, and \(\alpha'\) and \(\beta\) also form a linear pair, \(\alpha\) and \(\alpha'\) must be congruent.” Explain Corinna’s reasoning step by step using properties of linear pairs.
Figure for problem 532979

Hints

- What is the sum of the angles in a linear pair? - Express both \(\alpha\) and \(\alpha'\) in terms of \(\beta\). - What follows if two angles have the same measure?

Solution

1. Since \(\alpha\) and \(\beta\) form a linear pair, \(\alpha + \beta = 180^\circ\), so \(\alpha = 180^\circ - \beta\). 2. Since \(\alpha'\) and \(\beta\) also form a linear pair, \(\alpha' + \beta = 180^\circ\), so \(\alpha' = 180^\circ - \beta\). 3. Both angles equal \(180^\circ - \beta\), so \(\alpha = \alpha'\). This proves that vertical angles are congruent.

Answer

Both \(\alpha\) and \(\alpha'\) equal \(180^\circ - \beta\), so \(\alpha = \alpha'\).
Angle relationships 35
In parallelogram \(ABCD\), the angle bisectors of adjacent angles \(A\) and \(B\) intersect at point \(P\). Find \(\angle APB\).

Hints

- What is the sum of adjacent angles in a parallelogram? - What does an angle bisector do? - Use the angle sum of triangle \(ABP\).

Solution

1. Adjacent angles in a parallelogram are supplementary, so \(\alpha + \beta = 180^{\circ}\). 2. The angle bisectors create angles of \(\frac{\alpha}{2}\) and \(\frac{\beta}{2}\) in triangle \(ABP\). 3. Thus \(\frac{\alpha}{2} + \frac{\beta}{2} = \frac{180^{\circ}}{2} = 90^{\circ}\). 4. By the triangle angle-sum theorem, \(\angle APB = 180^{\circ} - 90^{\circ} = 90^{\circ}\).

Answer

\(\angle APB = 90^{\circ}\)
Angle relationships 36

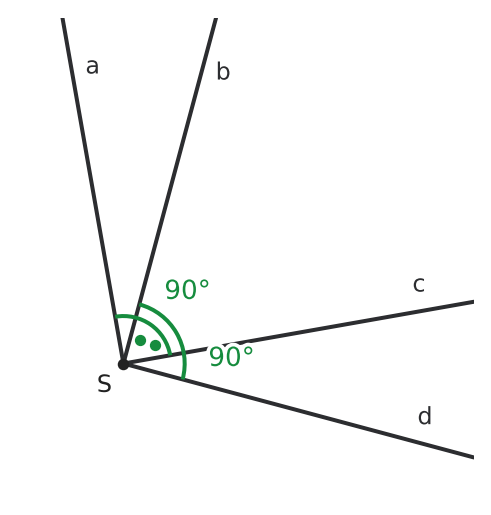

Rays \(a\), \(b\), \(c\), and \(d\) share endpoint \(S\) and occur in that order around \(S\). The angle from \(a\) to \(c\) is a right angle, and the angle from \(b\) to \(d\) is also a right angle. Explain without using specific angle measures why the angle between \(a\) and \(b\) must be congruent to the angle between \(c\) and \(d\).

Hints

- Let the shared middle angle between \(b\) and \(c\) have measure \(x^\circ\). - Express each of the two target angles as the remainder of a right angle. - What follows if both expressions are the same?

Solution

1. Let the angle between rays \(b\) and \(c\) have measure \(x^\circ\). 2. Since the angle from \(a\) to \(c\) is a right angle, the angle between \(a\) and \(b\) measures \(90^\circ - x^\circ\). 3. Since the angle from \(b\) to \(d\) is also a right angle, the angle between \(c\) and \(d\) measures \(90^\circ - x^\circ\). 4. The two angles have the same measure, so they are congruent.

Answer

Both angles are what remains after subtracting the shared angle between \(b\) and \(c\) from \(90^\circ\), so they are congruent.
Angle relationships 37
Adjacent supplementary angles \(\alpha\) and \(\beta\) form a straight angle. If \(\alpha = 124^{\circ}\), find the angle \(\delta\) between their angle bisectors \(w_\alpha\) and \(w_\beta\).

Hints

- First find the measure of the supplementary angle. - Bisect each angle. - Add the two half-angles that form the requested angle.

Solution

1. Since \(\alpha\) and \(\beta\) are supplementary, \(\beta = 180^{\circ} - 124^{\circ} = 56^{\circ}\). 2. Their half-angles are \(124^{\circ} \div 2 = 62^{\circ}\) and \(56^{\circ} \div 2 = 28^{\circ}\). 3. The angle between the bisectors is \(\delta = 62^{\circ} + 28^{\circ} = 90^{\circ}\).

Answer

The angle between the two angle bisectors is \(90^{\circ}\).
Angle relationships 38

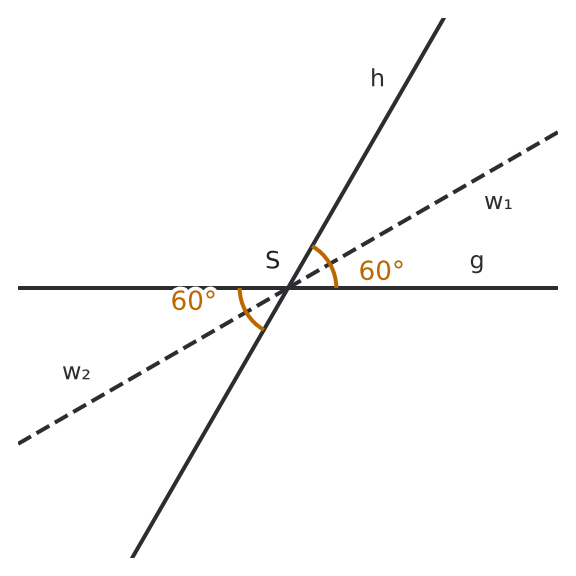

Lines \(g\) and \(h\) intersect at \(S\) to form a \(60^\circ\) angle. Rays \(w_1\) and \(w_2\) bisect the two opposite \(60^\circ\) vertical angles. Explain by calculation why \(w_1\) and \(w_2\) lie on the same line.

Hints

- What angle measure is required for two rays to form a straight line? - What does each bisector do to a \(60^\circ\) angle? - Include the angle supplementary to \(60^\circ\) between the two bisected angles.

Solution

1. The opposite vertical angle also measures \(60^\circ\). 2. Each angle bisector divides a \(60^\circ\) angle into two \(30^\circ\) angles. 3. An angle adjacent to a \(60^\circ\) angle measures \(180^\circ - 60^\circ = 120^\circ\). 4. The angle from \(w_1\) to \(w_2\) measures \(30^\circ + 120^\circ + 30^\circ = 180^\circ\). 5. Therefore, \(w_1\) and \(w_2\) are opposite rays and lie on the same line.

Answer

The angle between \(w_1\) and \(w_2\) is \(30^\circ + 120^\circ + 30^\circ = 180^\circ\), so the rays lie on one straight line.
Angle relationships 39
Use the marked angle as one unit. For each target, explain how to make the angle using repeated copies of that unit and, if needed, a straight angle. a) \(105^\circ\) b) \(140^\circ\) c) \(5^\circ\)
Figure for problem 537143

Hints

- How can repeated copies of the marked angle make a larger angle? - Which targets are whole-number multiples of that angle? - For the smallest target, compare a nearby multiple with a straight angle.

Solution

1. Three copies of the marked \(35^\circ\) angle make \(3\cdot35^\circ=105^\circ\). 2. Four copies make \(4\cdot35^\circ=140^\circ\). 3. Five copies make \(5\cdot35^\circ=175^\circ\). Its supplement in a straight angle is \(180^\circ-175^\circ=5^\circ\).

Answer

a) Use three copies of the marked angle. b) Use four copies of the marked angle. c) Use the supplement of five copies of the marked angle.
Angle relationships 40
Four rays \(a,b,c,d\) leave point \(S\), in that order around it. The angles between consecutive rays are \(\alpha,\beta,\gamma,\delta\), starting with the angle from \(a\) to \(b\). Suppose \(\alpha=\gamma\) and \(\beta=\delta\). Show that \(\alpha+\beta=180^\circ\). What can you conclude about rays \(a\) and \(c\), and rays \(b\) and \(d\)?

Hints

- What is the total of all four angles around the point? - Replace the two angles that are equal to others in that total. - What do you know about the outer rays of neighboring angles that total \(180^\circ\)?

Solution

1. Angles around a point total \(360^\circ\), so \(\alpha+\beta+\gamma+\delta=360^\circ\). 2. The given equalities make this \(2(\alpha+\beta)=360^\circ\), so \(\alpha+\beta=180^\circ\). 3. Rays \(a\) and \(c\), the outside rays of these two neighboring angles, must be opposite rays. 4. Also, \(\beta+\gamma=\beta+\alpha=180^\circ\), so rays \(b\) and \(d\) must be opposite rays. The four rays form two intersecting straight lines.

Answer

\(2(\alpha+\beta)=360^\circ\), so \(\alpha+\beta=180^\circ\). Rays \(a\) and \(c\) are opposite, as are rays \(b\) and \(d\). Thus, they form two intersecting lines.
Angle relationships 41
Angles \(\alpha\) and \(\beta\) are complementary. Angles \(\beta\) and \(\gamma\) are supplementary. If \(\alpha=34^\circ\), find \(\beta\) and \(\gamma\). Then compare \(\gamma\) with \(\alpha\).

Hints

- Use the complementary relationship first. - Then use the supplementary relationship that shares \(\beta\). - Compare the first and last angle only after both are known.

Solution

1. Since \(\alpha\) and \(\beta\) are complementary, \(\beta=90^\circ-34^\circ=56^\circ\). 2. Since \(\beta\) and \(\gamma\) are supplementary, \(\gamma=180^\circ-56^\circ=124^\circ\). 3. The difference is \(124^\circ-34^\circ=90^\circ\), so \(\gamma\) is \(90^\circ\) greater than \(\alpha\).

Answer

\(\beta=56^\circ\), \(\gamma=124^\circ\), and \(\gamma=\alpha+90^\circ\).
Angle relationships 42

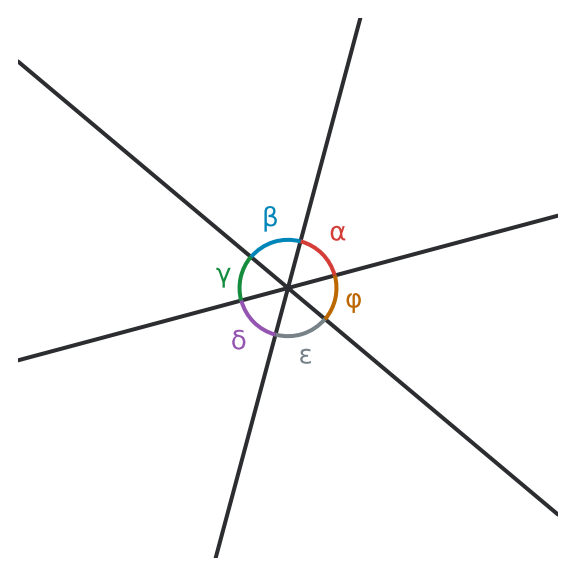

Three lines intersect at one point and form six angles, as shown. Consider these claims: 1. \(\alpha + \beta + \gamma = 180^\circ\) 2. \(\beta = \delta\) 3. \(\gamma = \varphi\) 4. \(\alpha + \beta + \delta + \varepsilon = 250^\circ\) Given \(\alpha = 60^\circ\) and \(\beta = 65^\circ\): a) Decide whether each claim is true or false. Briefly justify each answer using angle relationships. b) Find all six angle measures.
Figure for problem 531526

Hints

- Which angles are opposite each other when two lines intersect? - Which groups of adjacent angles form a straight angle? - Start with the two given measures and use vertical angles to find their opposites. - Check that all six angles sum to \(360^\circ\).

Solution

1. Claim 1 is true because \(\alpha\), \(\beta\), and \(\gamma\) form a straight angle. 2. Claim 2 is false. Angle \(\delta\) is vertical to \(\alpha\), so \(\delta = 60^\circ\), while \(\beta = 65^\circ\). 3. Claim 3 is true because \(\gamma\) and \(\varphi\) are vertical angles. 4. Claim 4 is true. Vertical angles give \(\delta = \alpha = 60^\circ\) and \(\varepsilon = \beta = 65^\circ\), so \(60^\circ + 65^\circ + 60^\circ + 65^\circ = 250^\circ\). 5. Since \(\alpha + \beta + \gamma = 180^\circ\), \(\gamma = 180^\circ - 60^\circ - 65^\circ = 55^\circ\). The vertical angle pairs then give \(\delta = 60^\circ\), \(\varepsilon = 65^\circ\), and \(\varphi = 55^\circ\).

Answer

a) Claims 1, 3, and 4 are true. Claim 2 is false. b) \(\alpha = 60^\circ\), \(\beta = 65^\circ\), \(\gamma = 55^\circ\), \(\delta = 60^\circ\), \(\varepsilon = 65^\circ\), and \(\varphi = 55^\circ\).

All problems may be used, copied and printed free of charge for school and tutoring, including paid tutoring. Commercial adaptations as well as publication or redistribution on the internet are not permitted.
