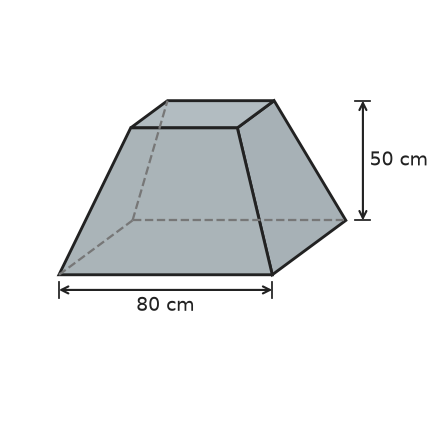

A concrete footing for a heavy metal post is shaped like a rectangular-pyramid frustum. The lower base measures \(120\,\text{cm}\times80\,\text{cm}\), the upper base measures \(60\,\text{cm}\times40\,\text{cm}\), and the vertical height is \(50\,\text{cm}\). Find the concrete volume in cubic meters.
Hints
- Compare corresponding dimensions of the two rectangular bases.
- Model the frustum as a large pyramid minus a smaller similar pyramid.
- Use the scale factor to determine the full and removed pyramid heights.
- Convert cubic centimeters to cubic meters only after finding the volume.
Solution
1. Each upper-base dimension is half the corresponding lower-base dimension, so the removed top pyramid has scale factor \(\frac{1}{2}\) relative to the full pyramid.
2. Let \(H\) be the full pyramid height. The removed pyramid height is \(\frac{H}{2}\), and the frustum height is also \(\frac{H}{2}=50\). Thus, \(H=100\,\text{cm}\).
3. The lower and upper base areas are \(120\cdot80=9{,}600\,\text{cm}^2\) and \(60\cdot40=2{,}400\,\text{cm}^2\).
4. The frustum volume is \(V=\frac{1}{3}\cdot9{,}600\cdot100-\frac{1}{3}\cdot2{,}400\cdot50=320{,}000-40{,}000=280{,}000\,\text{cm}^3\).
5. Since \(1\,\text{m}^3=1{,}000{,}000\,\text{cm}^3\), \(V=0.28\,\text{m}^3\).
Answer
The required concrete volume is \(0.28\,\text{m}^3\).
