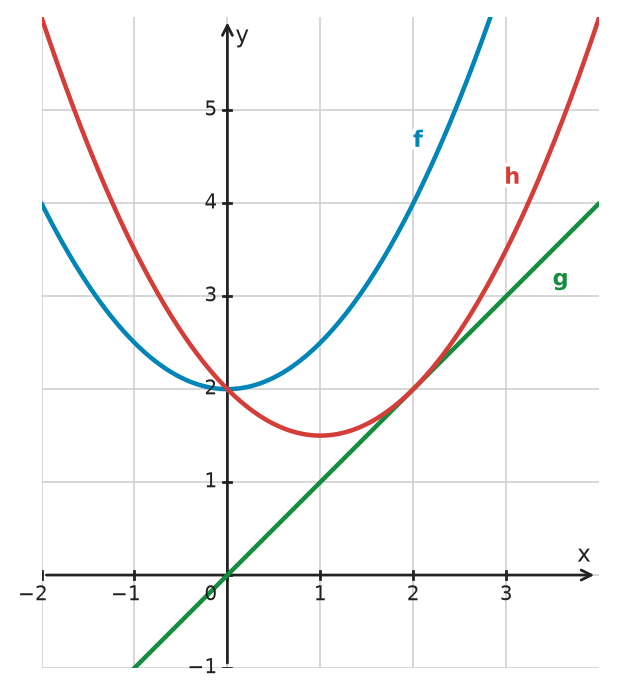

The graph shows the functions \(f\), \(g\), and their sum \(h\), where \(h(x)=f(x)+g(x)\).
Decide whether each statement is true or false. Justify your decisions.
a) If \(f\) has a zero at some x-value, then \(h\) also has a zero there.
b) At every x-value where the graphs of \(f\) and \(g\) intersect, \(h(x)\) is twice \(f(x)\).
c) If \(f(x)=-g(x)\), then \(h\) has a zero at that x-value.
Hints
- Use a specific zero of \(f\) from the graph to test part a.
- At an intersection, the two functions have equal outputs.
- Substitute \(f(x)=-g(x)\) into the definition of \(h\).
Solution
1. Statement a is false. For example, \(f(-2)=0\), but \(g(-2)=4\). Therefore, \(h(-2)=0+4=4\ne0\).
2. Statement b is true. At an intersection, \(f(x)=g(x)\). Therefore, \(h(x)=f(x)+g(x)=2f(x)\).
3. Statement c is true. If \(f(x)=-g(x)\), then \(h(x)=f(x)+g(x)=-g(x)+g(x)=0\).
Answer
a) False
b) True
c) True
