Algebra II math worksheets

Build your own math worksheets from 35,000+ problems for grades 3 to 12, from fractions to AP Calculus. Every problem comes with step-by-step solutions.

Quadratic models and interpretation

Learning goals

  • Builds quadratic models from contextual information or data.
  • Interprets vertex, intercepts, and axis of symmetry in context.
  • Uses the model to answer domain-appropriate questions.
  • Assesses whether solutions are meaningful in the original situation.

Click problems to add them to your worksheet.

Quadratic models and interpretation 1
The graph shows the height \(h\), in feet, of a toy rocket \(t\) seconds after launch. What is the maximum height, and when does it occur?
Figure for problem 551923

Hints

- Identify the highest point on the graphed path. - Read both coordinates of that point and match each coordinate to its axis label.

Solution

1. The maximum occurs at the highest point of the parabola. 2. The graph's highest point is \((3, 9)\), so the rocket reaches a maximum height of \(9\,\text{ft}\) at \(3\,\text{s}\).

Answer

The maximum height is \(9\,\text{ft}\), and it occurs at \(3\,\text{s}\).
Quadratic models and interpretation 2
A small business models its weekly profit by \(P(x)=-200(x-6)^2+7200\), where \(x\) is the number of hundreds of units sold and \(P(x)\) is the profit in dollars. Without expanding the expression, state the sales level that maximizes profit and the maximum weekly profit.

Hints

- Identify the vertex directly from the quadratic's vertex form. - Interpret the vertex's x-coordinate using the stated unit for \(x\), and interpret its y-coordinate using the stated unit for \(P(x)\).

Solution

1. The model is in vertex form, so its vertex is \((6, 7200)\). 2. Because the coefficient of the squared term is negative, the vertex gives the maximum. 3. Since \(x=6\) represents \(6\) hundreds of units, the maximizing sales level is \(600\) units, and the maximum weekly profit is \(\$7200\).

Answer

Sell \(600\) units for a maximum weekly profit of \(\$7200\).
Quadratic models and interpretation 3
A print shop models the total cost of running a printing press by \(C(t)=0.5t^2+4t+30\), where \(t\) is the number of hours since the shift began and \(C(t)\) is in dollars. What does \(C(0)\) mean, and what is its value?

Hints

- What time does the input \(t=0\) stand for? - Substitute that time into the function. - Interpret the constant term as the graph's y-intercept in this context.

Solution

1. The input \(t=0\) is the beginning of the shift. 2. Substituting gives \(C(0)=0.5\cdot0^2+4\cdot0+30=30\). 3. The model gives an initial operating cost of \(\$30\).

Answer

\(C(0)=\$30\), the modeled cost at the beginning of the shift.
Quadratic models and interpretation 4
The graph shows a company's modeled profit \(P\), where \(x\) is measured in hundreds of units sold and \(P(x)\) is measured in thousands of dollars. What do the two x-intercepts mean in this context?
Figure for problem 555727

Hints

- What does an x-intercept mean for the output value of a function? - Translate an output of \(0\) into the meaning of profit. - Convert the graph's x-values from hundreds of units to units.

Solution

1. The x-intercepts occur where profit is \(0\). 2. From the graph, the intercepts are at \(x=2\) and \(x=8\). 3. Because \(x\) is measured in hundreds of units, the company breaks even at \(200\) units and \(800\) units.

Answer

The x-intercepts are break-even sales levels: \(200\) units and \(800\) units.
Quadratic models and interpretation 5
The cross-section of an arch is modeled by \(h(x)=-0.5(x-4)^2+8\), where \(x\) is horizontal distance in feet from the left base. The model is used only for the physical arch between its ground contacts at \(x=0\) and \(x=8\). State a reasonable domain and range for the model in this context.

Hints

- Use only x-values that correspond to points on the physical arch. - Identify the smallest and largest heights attained on that interval. - The vertex gives one endpoint of the range.

Solution

1. The physical arch runs from the left base at \(x=0\) to the right base at \(x=8\), so the contextual domain is \([0,8]\). 2. The arch is at ground level at the endpoints, so the minimum modeled height is \(0\). 3. The vertex is \((4,8)\), so the maximum modeled height is \(8\). 4. Therefore, the contextual range is \([0,8]\) feet.

Answer

Domain: \([0,8]\) Range: \([0,8]\) feet
Quadratic models and interpretation 6
A model has the following values. <table><tr><th>\(x\)</th><th>0</th><th>1</th><th>2</th><th>3</th></tr><tr><th>\(y\)</th><td>2</td><td>5</td><td>10</td><td>17</td></tr></table> Is a linear or quadratic model more consistent with this pattern? Justify your choice using differences.

Hints

- Compare how much \(y\) changes each time \(x\) increases by \(1\). - Do those changes stay constant? - If the first changes are not constant, compare how those changes themselves vary.

Solution

1. The first differences are \(3\), \(5\), and \(7\), so they are not constant. 2. The differences between those first differences are \(2\) and \(2\), so the second differences are constant. 3. Constant second differences are consistent with a quadratic model.

Answer

A quadratic model is more consistent. The first differences are \(3,5,7\), and the second differences are constant at \(2\).
Quadratic models and interpretation 7
A toy car rolling down a ramp travels a modeled distance \(d(t)=2t^2\), where \(t\) is time in seconds and \(d(t)\) is distance in feet. What does \(d(3)\) mean, and what is its value?

Hints

- Which quantity does the input represent? - Substitute the stated time into the model. - Give the output with its distance unit.

Solution

1. The input \(t=3\) means \(3\,\text{s}\) after the car starts rolling. 2. Substitute: \(d(3)=2\cdot3^2=18\). 3. The car's modeled distance traveled in \(3\,\text{s}\) is \(18\,\text{ft}\).

Answer

\(d(3)=18\,\text{ft}\), the modeled distance traveled after \(3\,\text{s}\).
Quadratic models and interpretation 8
The area of a rectangular garden is modeled by \(A(w)=w(12-w)\), where \(w\) is its width in feet. What values of \(w\) make sense for a garden with positive side lengths?

Hints

- What do the two factors in the quadratic area rule represent? - At what width would one of the two sides shrink to zero? - Check that both factors stay positive throughout your proposed interval.

Solution

1. The quadratic area rule is a product of the two side lengths, \(w\) and \(12-w\). 2. Both factors must be positive: \(w>0\) and \(12-w>0\), which means \(w<12\). 3. Therefore the model makes sense for \(0<w<12\).

Answer

\(0<w<12\)
Quadratic models and interpretation 9
A plant nursery places \(n\) rows of \(n\) potted plants on a display and \(4\) more pots by the entrance. Write a rule \(P(n)\) for the total number of pots.

Hints

- Try counting a display with two rows of two pots. - Which pots are outside the square arrangement?

Solution

1. The display contains \(n\cdot n=n^2\) pots. 2. Include the four pots by the entrance: \(P(n)=n^2+4\).

Answer

\(P(n)=n^2+4\)
Quadratic models and interpretation 10

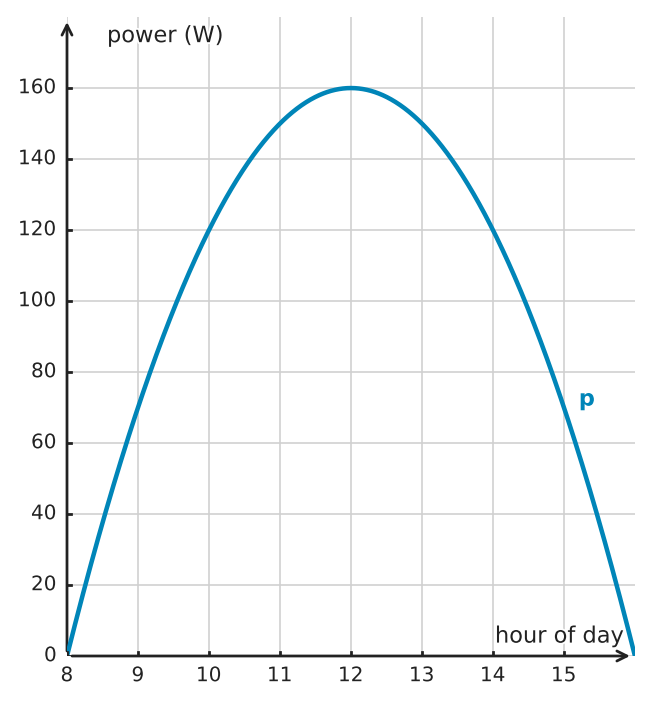

A solar panel's output during one day is modeled by the graph. At what time is its output highest, and what is the modeled maximum output?
Figure for problem 560746

Hints

- Look for the highest point of the parabola. - Read its horizontal coordinate using the time axis. - Use the vertical axis label for the output unit.

Solution

1. The graph reaches its highest point at \((12,160)\). 2. The hour \(12\) is noon, and the y-coordinate represents power in watts. 3. The modeled maximum is \(160\,\text{W}\) at noon.

Answer

Noon; \(160\,\text{W}\)
Quadratic models and interpretation 11
A town plans a square plaza. Choose a letter for its side length in feet, then write a quadratic rule for its area in square feet.

Hints

- If each side were \(20\) feet long, what multiplication would give the area? - Replace that sample length with your chosen variable so the rule works for any side length. - Check that the result has square-foot units, not foot units.

Solution

1. Let \(s\) be the plaza's side length in feet. 2. Since each side has length \(s\), the area is \(A(s)=s^2\).

Answer

For example, let \(s\) be the side length in feet. Then \(A(s)=s^2\).
Quadratic models and interpretation 12
Two test vehicles are observed beginning at \(t = 0\). Their distances \(s\), in meters, after \(t\) seconds are modeled by Vehicle A: \(s_A(t) = 1.2t^2\) Vehicle B: \(s_B(t) = 0.8t^2 + 2t\) a) How far has Vehicle A traveled after \(5\) seconds? b) When does Vehicle A reach \(120\,\text{m}\)? c) Which vehicle is farther ahead after \(10\) seconds? Justify by comparing the model values.

Hints

- Which variable represents time, and which represents distance? - How can you isolate the squared variable when the distance is given? - Compare both distances at the same time.

Solution

1. Evaluate Vehicle A's model: \(s_A(5) = 1.2 \cdot 5^2 = 1.2 \cdot 25 = 30\,\text{m}\). 2. Solve \(120 = 1.2t^2\): \(t^2 = 100\), so \(t = \pm 10\). Since time is nonnegative, \(t = 10\,\text{s}\). 3. Compare the distances at \(t = 10\): \(s_A(10) = 1.2 \cdot 10^2 = 120\,\text{m}\), while \(s_B(10) = 0.8 \cdot 10^2 + 2 \cdot 10 = 100\,\text{m}\). 4. Vehicle A is ahead because \(120\,\text{m} > 100\,\text{m}\).

Answer

a) \(30\,\text{m}\) b) \(10\,\text{s}\) c) Vehicle A; it has traveled \(120\,\text{m}\), compared with Vehicle B's \(100\,\text{m}\).
Quadratic models and interpretation 13
The path of a shot put is modeled by \(h(x) = -0.05x^2 + 0.6x + 2\), where \(x\) is the horizontal distance from the release line and \(h(x)\) is the height, both in meters. a) From what height is the shot released? b) What maximum height does it reach? c) What is its height when it is \(10\,\text{m}\) horizontally from the release line?

Hints

- What input represents the release point? - Which point of a downward-opening parabola gives the maximum value? - Substitute the specified horizontal distance into the model.

Solution

1. The release occurs at \(x = 0\): \(h(0) = 2\), so the release height is \(2\,\text{m}\). 2. The vertex occurs at \(x = -\frac{0.6}{2 \cdot (-0.05)} = 6\). Then \(h(6) = -0.05 \cdot 6^2 + 0.6 \cdot 6 + 2 = 3.8\). The maximum height is \(3.8\,\text{m}\). 3. Evaluate \(h(10) = -0.05 \cdot 10^2 + 0.6 \cdot 10 + 2 = 3\). The height is \(3\,\text{m}\).

Answer

a) \(2\,\text{m}\) b) \(3.8\,\text{m}\) c) \(3\,\text{m}\)
Quadratic models and interpretation 14
For speeds from \(40\) to \(90\,\text{mph}\), a car's fuel use in gallons per \(100\) miles is modeled by \(g(v) = 0.002v^2 - 0.24v + 10.7\), where \(v\) is the speed in miles per hour. a) Find the fuel use at \(40\,\text{mph}\) and \(80\,\text{mph}\). What do you notice? b) At what speed is the fuel use minimized, and what is the minimum fuel use?

Hints

- Substitute each requested speed into the model. - What does equal output at two speeds suggest about the axis of symmetry? - Which formula gives the vertex of a quadratic in standard form?

Solution

1. Evaluate the model: \(g(40) = 0.002 \cdot 40^2 - 0.24 \cdot 40 + 10.7 = 4.3\), and \(g(80) = 0.002 \cdot 80^2 - 0.24 \cdot 80 + 10.7 = 4.3\). The two speeds have the same modeled fuel use. 2. Since the leading coefficient is positive, the minimum occurs at the vertex. Its speed is \(v = -\frac{-0.24}{2 \cdot 0.002} = 60\,\text{mph}\). 3. Evaluate \(g(60) = 0.002 \cdot 60^2 - 0.24 \cdot 60 + 10.7 = 3.5\). The minimum fuel use is \(3.5\) gallons per \(100\) miles.

Answer

a) \(4.3\) gallons per \(100\) miles at both \(40\,\text{mph}\) and \(80\,\text{mph}\) b) The minimum occurs at \(60\,\text{mph}\) and is \(3.5\) gallons per \(100\) miles.
Quadratic models and interpretation 15
A tire manufacturer tests braking distance on a gravel track. The braking distance is modeled by a quadratic function of the form \(s(v) = kv^2\), where \(v\) is speed in miles per hour and \(s(v)\) is distance in feet. At \(20\,\text{mph}\), the braking distance is \(20\,\text{ft}\), and at \(40\,\text{mph}\), it is \(80\,\text{ft}\). a) Show that both measurements fit a model of the form \(s(v) = kv^2\), and find \(k\). b) Use the model to predict the braking distance at \(60\,\text{mph}\). c) According to the model, at what speed is the braking distance \(125\,\text{ft}\)?

Hints

- Substitute either measurement into \(s(v) = kv^2\). - Check the same value of \(k\) with the other measurement. - For part c, set the model equal to the given distance.

Solution

1. Use the first measurement: \(20 = k \cdot 20^2\), so \(k = \frac{20}{400} = 0.05\). 2. Check the second measurement: \(0.05 \cdot 40^2 = 80\), so both measurements fit the model \(s(v) = 0.05v^2\). 3. At \(60\,\text{mph}\), \(s(60) = 0.05 \cdot 60^2 = 180\). The predicted braking distance is \(180\,\text{ft}\). 4. Set \(0.05v^2 = 125\). Then \(v^2 = 2500\), so \(v = 50\) because speed is positive.

Answer

a) \(k = 0.05\), so \(s(v) = 0.05v^2\) b) \(180\,\text{ft}\) c) \(50\,\text{mph}\)
Quadratic models and interpretation 16
A bridge arch in a park is modeled by \(f(x) = -0.25x^2 + 2x\), where \(x\) is the horizontal distance from the left base of the arch and \(f(x)\) is the height above the ground, both in meters. a) Show algebraically that the arch has the same height at \(x = 2\,\text{m}\) and \(x = 6\,\text{m}\). b) Find the maximum height of the arch. c) How far apart are the two points where the arch meets the ground? Justify your answer by finding the zeros.

Hints

- Substitute each given horizontal distance into the function. - Where is the maximum of a downward-opening parabola? - What equation represents the points where the arch meets the ground?

Solution

1. Evaluate both heights: \(f(2) = -0.25 \cdot 2^2 + 2 \cdot 2 = 3\), and \(f(6) = -0.25 \cdot 6^2 + 2 \cdot 6 = 3\). Therefore, the arch is \(3\,\text{m}\) high at both locations. 2. The vertex occurs at \(x = -\frac{2}{2 \cdot (-0.25)} = 4\). Then \(f(4) = -0.25 \cdot 4^2 + 2 \cdot 4 = 4\), so the maximum height is \(4\,\text{m}\). 3. Set \(f(x) = 0\): \(-0.25x^2 + 2x = 0\). Factoring gives \(x(-0.25x + 2) = 0\), so the zeros are \(x = 0\) and \(x = 8\). The bases are \(8\,\text{m}\) apart.

Answer

a) \(f(2) = f(6) = 3\,\text{m}\) b) \(4\,\text{m}\) c) \(8\,\text{m}\), because the zeros are \(x = 0\) and \(x = 8\).
Quadratic models and interpretation 17
A car's braking distance on dry pavement is modeled by \(s(v) = 0.04v^2\), where \(v\) is speed in miles per hour and \(s(v)\) is distance in feet. a) Find the braking distances at \(25\,\text{mph}\) and \(50\,\text{mph}\). b) Use your results to explain how doubling the speed affects the braking distance. c) On wet pavement, the braking distance is twice the dry-pavement distance at every speed. Write a function \(s_{\text{wet}}(v)\) for the wet-pavement braking distance.

Hints

- Substitute each speed into the model. - Compare the factor by which the input changes with the factor by which the output changes. - If every output doubles, what happens to the coefficient?

Solution

1. Evaluate the model: \(s(25) = 0.04 \cdot 25^2 = 25\,\text{ft}\), and \(s(50) = 0.04 \cdot 50^2 = 100\,\text{ft}\). 2. The speed doubles from \(25\) to \(50\), while the braking distance changes from \(25\) to \(100\), which is multiplied by \(4\). This occurs because \((2v)^2 = 4v^2\). 3. Doubling every output doubles the coefficient: \(s_{\text{wet}}(v) = 2(0.04v^2) = 0.08v^2\).

Answer

a) \(25\,\text{ft}\) at \(25\,\text{mph}\); \(100\,\text{ft}\) at \(50\,\text{mph}\) b) Doubling the speed quadruples the braking distance. c) \(s_{\text{wet}}(v) = 0.08v^2\)
Quadratic models and interpretation 18
For circular steel plates of equal thickness, mass \(m\) is directly proportional to the square of radius \(r\). A plate with radius \(10\,\text{cm}\) has mass \(1.2\,\text{kg}\). a) Find the proportionality constant \(k\) in \(m(r) = kr^2\). b) Find the mass of a plate of the same material and thickness with diameter \(30\,\text{cm}\). c) How must the radius change for the mass to become four times the original mass? Explain without recalculating the mass.

Hints

- Distinguish carefully between radius and diameter. - Substitute the known radius and mass into \(m(r) = kr^2\). - What scale factor for the radius has a square equal to \(4\)?

Solution

1. Substitute \(m = 1.2\) and \(r = 10\): \(1.2 = k \cdot 10^2 = 100k\). Therefore, \(k = 0.012\,\frac{\text{kg}}{\text{cm}^2}\). 2. A diameter of \(30\,\text{cm}\) gives a radius of \(15\,\text{cm}\). Then \(m(15) = 0.012 \cdot 15^2 = 2.7\,\text{kg}\). 3. Since mass is proportional to \(r^2\), multiplying the radius by \(2\) multiplies the mass by \(2^2 = 4\). The radius must be doubled.

Answer

a) \(k = 0.012\,\frac{\text{kg}}{\text{cm}^2}\), so \(m(r) = 0.012r^2\) b) \(2.7\,\text{kg}\) c) The radius must be doubled.
Quadratic models and interpretation 19
The graph shows the height of a ball after release. The horizontal axis is time in seconds, and the vertical axis is height in meters. a) Use the graph to determine when the ball is at least \(8\,\text{m}\) high. Write an inequality for \(t\). b) After release and before the ball reaches the ground, during what time interval is the ball lower than its release height?
Figure for problem 533387

Hints

- For part a, locate where the curve meets the horizontal level \(8\). - Read the release height from the graph at \(t=0\). - On the descending side, identify when the curve returns to that release height and when it reaches the x-axis.

Solution

1. The graph reaches \(8\,\text{m}\) at \(t=1\) and \(t=3\). The curve is on or above that height between those times, so \(1\le t\le3\). 2. At release, the graph shows height \(5\,\text{m}\). 3. On the descending side, the graph returns to \(5\,\text{m}\) at \(t=4\) and reaches the ground at \(t=5\). 4. Therefore, after release and before ground contact, the ball is below its release height for \(4<t<5\).

Answer

a) \(1\le t\le3\) b) \(4<t<5\)
Quadratic models and interpretation 20
A theater models ticket revenue by \(R(p)=-50(p-8)^2+3200\), where \(p\) is the ticket price in dollars and \(R(p)\) is revenue in dollars. Interpret the numbers \(8\) and \(3200\) in context. Then explain what the coefficient \(-50\) means by comparing prices \(\$7\) and \(\$9\) with prices \(\$6\) and \(\$10\).

Hints

- Identify the vertex directly from the given form and connect both coordinates to the context. - Compare prices that are equally far from \(\$8\). What symmetry does the squared term create? - Compare a distance of \(1\) dollar from \(\$8\) with a distance of \(2\) dollars from \(\$8\). - Relate those squared distances to the outside coefficient.

Solution

1. The model is in vertex form, so its vertex is \((8,3200)\). 2. Because the leading coefficient is negative, the parabola opens downward. 3. Therefore, the model predicts maximum revenue of \(\$3200\) when the ticket price is \(\$8\). 4. At \(p=7\) or \(p=9\), the squared distance from \(8\) is \(1\), so revenue is \(\$50\) below the maximum: \(\$3150\). 5. At \(p=6\) or \(p=10\), the squared distance is \(4\), so revenue is \(4\cdot\$50=\$200\) below the maximum: \(\$3000\). 6. Thus, the coefficient \(-50\) means the modeled revenue decreases by \(\$50\) times the square of the dollar distance from the optimal price \(\$8\).

Answer

The model predicts maximum revenue of \(\$3200\) at a ticket price of \(\$8\). At \(\$7\) or \(\$9\), revenue is \(\$3150\); at \(\$6\) or \(\$10\), it is \(\$3000\). The coefficient \(-50\) scales the loss from the maximum by the square of the price's distance from \(\$8\).
Quadratic models and interpretation 21
A product line has modeled monthly profit \(P(x)=-100(x+2)(x-12)\), where \(x\) is the number of hundreds of units produced and \(x\ge0\). Profit is measured in dollars. Find both mathematical zeros of the model. Which zero is meaningful in context, and what does it represent?

Hints

- In factored form, each zero comes from one factor being zero. - Compare each zero with the stated contextual domain. - Translate the valid x-value from hundreds of units to units and interpret profit \(0\).

Solution

1. The factored form is zero when \(x=-2\) or \(x=12\). 2. The domain requires \(x\ge0\), so \(x=-2\) is not a possible production level. 3. The meaningful zero is \(x=12\), which represents \(1200\) units. 4. At that production level, modeled profit is \(0\), so it is a break-even point.

Answer

The mathematical zeros are \(x=-2\) and \(x=12\). Only \(x=12\) is meaningful, representing break-even production of \(1200\) units.
Quadratic models and interpretation 22
A computer simulation gives the following modeled maintenance cost \(C(x)\), where \(x\) is hundreds of operating hours and \(C(x)\) is hundreds of dollars. <table><tr><th>\(x\)</th><th>0</th><th>1</th><th>2</th><th>3</th></tr><tr><th>\(C(x)\)</th><td>5</td><td>8</td><td>15</td><td>26</td></tr></table> Assume \(C(x)=ax^2+bx+c\). a) Use differences in the table to determine \(a\). b) Determine the quadratic model and use it to predict the cost at \(x=4\), in dollars.

Hints

- Compare consecutive output changes before looking at the second differences. - For equally spaced inputs, connect a quadratic's constant second difference to its leading coefficient. - Use the row with \(x=0\) to identify one coefficient directly. - Substitute one additional table value to finish the model before predicting the next value.

Solution

1. The first differences are \(3\), \(7\), and \(11\), so the constant second difference is \(4\). 2. For unit x-steps in \(ax^2+bx+c\), the second difference is \(2a\). Thus, \(2a=4\), so \(a=2\). 3. Since \(C(0)=5\), \(c=5\). 4. Using \(C(1)=8\), \(2+b+5=8\), so \(b=1\). 5. Therefore, \(C(x)=2x^2+x+5\). 6. At \(x=4\), \(C(4)=2(4^2)+4+5=41\), which represents \(\$4100\).

Answer

a) \(a=2\) b) \(C(x)=2x^2+x+5\), and \(C(4)=41\), so the predicted cost is \(\$4100\).
Quadratic models and interpretation 23
A materials lab measures rebound height at six machine settings. Because of measurement noise, the points do not lie exactly on one quadratic. <table><tr><th>Setting \(x\)</th><th>0</th><th>1</th><th>2</th><th>3</th><th>4</th><th>5</th></tr><tr><th>Height \(y\) (cm)</th><td>3.2</td><td>6.2</td><td>9.1</td><td>10.9</td><td>10.8</td><td>10.3</td></tr></table> Use quadratic regression technology to model the data with \(y=ax^2+bx+c\). Round \(a\), \(b\), and \(c\) to the nearest thousandth. Then use the regression model to predict the height at \(x=6\), to the nearest tenth of a centimeter.

Hints

- Because the measurements are noisy, do not force an exact quadratic through a selected three-point subset. - Use every ordered pair in the quadratic regression calculation. - Check whether the sign of the leading coefficient agrees with the overall rise-then-fall pattern in the data. - Keep the calculator's unrounded coefficients for the prediction, then round the final height as requested.

Solution

1. Enter all six ordered pairs into a quadratic regression calculation rather than forcing an exact quadratic through only three points. 2. The regression gives \(a\approx-0.5267857\), \(b\approx4.0939286\), and \(c\approx3.0107143\). 3. To the nearest thousandth, the model is \(y\approx-0.527x^2+4.094x+3.011\). 4. Using the unrounded regression coefficients at \(x=6\) gives \(y\approx8.61\). 5. Therefore, the predicted height is about \(8.6\,\text{cm}\).

Answer

\(y\approx-0.527x^2+4.094x+3.011\) Predicted height at \(x=6\): \(8.6\,\text{cm}\)
Quadratic models and interpretation 24
A quadratic regression model for a launcher test is \(H(x)=-0.8x^2+6x+12\), where \(x\) is the machine setting and \(H(x)\) is the predicted range in feet. The measured ranges are shown below. <table><tr><th>\(x\)</th><th>1</th><th>2</th><th>3</th><th>4</th><th>5</th></tr><tr><th>Measured range (ft)</th><td>17.6</td><td>20.1</td><td>23.3</td><td>22.9</td><td>21.4</td></tr></table> Define residual as measured value minus predicted value. a) Find the residuals at \(x=2\) and \(x=4\). b) Interpret the sign of each residual in context. c) Which of the five measurements has the largest absolute residual?

Hints

- For each requested input, evaluate the regression model before comparing it with the measurement. - Keep the subtraction order consistent with the stated definition of residual. - Use the sign to decide whether the observed value lies above or below the model prediction. - For the final comparison, use absolute residuals so positive and negative signs do not hide the size of an error.

Solution

1. At \(x=2\), the model predicts \(H(2)=-0.8(2^2)+6(2)+12=20.8\). The residual is \(20.1-20.8=-0.7\,\text{ft}\). 2. At \(x=4\), the model predicts \(H(4)=-0.8(4^2)+6(4)+12=23.2\). The residual is \(22.9-23.2=-0.3\,\text{ft}\). 3. A negative residual means the measured range is below the model prediction. 4. The other residuals are \(0.4\), \(0.5\), and \(-0.6\) feet at \(x=1\), \(x=3\), and \(x=5\), respectively. 5. The largest absolute residual is \(0.7\,\text{ft}\), at \(x=2\).

Answer

a) At \(x=2\): \(-0.7\,\text{ft}\); at \(x=4\): \(-0.3\,\text{ft}\) b) Both are negative, so both measured ranges are below the model's predictions. c) The measurement at \(x=2\), with absolute residual \(0.7\,\text{ft}\)
Quadratic models and interpretation 25
A rectangular dog run is \(5\) feet longer than it is wide. Choose a letter for the width. State what it means, then write a rule for the area in square feet. You do not need to expand it.

Hints

- If the width were \(6\) feet, how would you find the length? Now use a letter instead. - Write the other side length using the stated difference. - What two measurements are multiplied to get a rectangle's area?

Solution

1. Let \(w\) be the width in feet. Its length is \(w+5\) feet. 2. Area is width times length, so \(A(w)=w(w+5)\).

Answer

For example, let \(w\) be the width in feet. Then \(A(w)=w(w+5)\).
Quadratic models and interpretation 26
A rectangular vegetable garden is enclosed by \(40\,\text{ft}\) of fencing. Let its width be \(w\) feet. a) Express its length in terms of \(w\). b) Write a quadratic rule \(A(w)\) for its area in square feet.

Hints

- A rectangle has two lengths and two widths in its perimeter. - Express the unknown length using the fencing total and \(w\). - Combine the two side lengths to model the area.

Solution

1. The perimeter condition is \(2w+2L=40\), where \(L\) is the length. 2. Solving gives \(L=20-w\). 3. The area is \(A(w)=wL=w(20-w)\).

Answer

a) \(20-w\) feet b) \(A(w)=w(20-w)\)
Quadratic models and interpretation 27
When a sprinkler first turns on, its wet patch has radius \(0\). Over the next \(3\) minutes, the radius grows at \(2\,\text{ft}\) per minute. Let \(t\) be the number of minutes since it turned on. Write a rule for the watered area \(A(t)\) in square feet.

Hints

- Express the radius in terms of elapsed time. - Which area formula uses the radius of a circle? - Square the entire expression for the radius.

Solution

1. The radius after \(t\) minutes is \(r=2t\) feet. 2. Using circle area, \(A(t)=\pi r^2=\pi(2t)^2=4\pi t^2\), for \(0\le t\le3\).

Answer

\(A(t)=4\pi t^2\), for \(0\le t\le3\)
Quadratic models and interpretation 28
A school art club sells handmade cards for \(\$6\) each. It estimates its total production cost for \(n\) cards by \(C(n)=10+0.5n^2\) dollars. Write a quadratic model for profit \(P(n)\) in standard form.

Hints

- What is the revenue from selling \(n\) cards at the given price? - Profit is the difference between revenue and cost. - Use parentheses so every cost term is subtracted.

Solution

1. Revenue from \(n\) sales is \(R(n)=6n\). 2. Profit equals revenue minus cost: \(P(n)=6n-(10+0.5n^2)\). 3. Simplifying gives \(P(n)=-0.5n^2+6n-10\).

Answer

\(P(n)=-0.5n^2+6n-10\)
Quadratic models and interpretation 29
A school theater has room for at most \(80\) ticket buyers. Its modeled profit is \(P(n)=-(n-20)(n-100)\) dollars, where \(n\) is the number of tickets sold. Find both zeros of the quadratic. Which zero could actually represent breaking even at this theater?

Hints

- The profit is zero when one of the two factors is zero. - Separate the mathematical solutions from what can happen in the setting. - Compare each zero with the theater's capacity.

Solution

1. Setting \(P(n)=0\) gives \(n-20=0\) or \(n-100=0\). 2. The mathematical zeros are \(n=20\) and \(n=100\). 3. Since the theater can sell at most \(80\) tickets, only \(n=20\) is attainable.

Answer

Zeros: \(n=20\) and \(n=100\). Only \(20\) tickets is a possible break-even sales level.
Quadratic models and interpretation 30
A triangular flower bed has a height that is \(3\) feet more than twice its base. Choose a variable for the base and write a quadratic rule for the area in square feet. You do not need to expand it.

Hints

- Can you write the height using only the base length? - How is a triangle's area related to a rectangle with the same base and height? - Check that your rule gives an area, measured in square feet.

Solution

1. Let \(b\) be the base length in feet. The height is \(2b+3\) feet. 2. The area of a triangle is half the base times the height. 3. Therefore, \(A(b)=\frac{1}{2}b(2b+3)\).

Answer

For example, let \(b\) be the base in feet. Then \(A(b)=\frac{1}{2}b(2b+3)\).
Quadratic models and interpretation 31
A builder makes a square patio. Paving stones cost \(\$4\) per square foot, and edging costs \(\$3\) per foot around the outside. Choose a variable for the side length and write a quadratic rule for the total material cost in dollars.

Hints

- Which price is charged for covering a surface, and which for its boundary? - If one side doubled, how would each of those measurements change? - Work out the two charges separately, then combine them.

Solution

1. Let \(s\) be the side length in feet. 2. The area is \(s^2\) square feet, so the paving stones cost \(4s^2\) dollars. 3. The perimeter is \(4s\) feet, so the edging costs \(3(4s)=12s\) dollars. 4. The total material cost is \(C(s)=4s^2+12s\).

Answer

For example, let \(s\) be the side length in feet. Then \(C(s)=4s^2+12s\) dollars.
Quadratic models and interpretation 32
In a chess tournament, every player competes against every other player exactly once. A total of \(190\) games are played. How many players are in the tournament? Explain your mathematical model.

Hints

- Model each game as a pair of different players. - Make sure each matchup is counted only once. - Write the number of pairs in terms of \(n\). - Interpret both algebraic solutions in the context.

Solution

1. Let \(n\) be the number of players. Each game corresponds to an unordered pair of players, so the total number of games is \(\frac{n(n-1)}{2}\). 2. Set up the equation: \(\frac{n(n-1)}{2}=190\). 3. Rearrange: \(n^2-n-380=0\). 4. Apply the quadratic formula: \(n=\frac{1\pm\sqrt{(-1)^2-4\cdot1\cdot(-380)}}{2}=\frac{1\pm39}{2}\). 5. The solutions are \(n=20\) and \(n=-19\). Only the positive value is meaningful, so there are \(20\) players.

Answer

\(20\) players
Quadratic models and interpretation 33
The number of diagonals \(d\) in a convex polygon with \(n\) sides is modeled by \(d(n) = \frac{1}{2}n^2 - 1.5n\). a) Find the number of diagonals in an octagon. b) A polygon has exactly \(54\) diagonals. Find the number of sides by solving a quadratic equation. c) Explain why only one mathematical solution from part b) is meaningful in context.

Hints

- What does \(n\) represent in this model? - When an output value is given, what equation should you solve? - What restrictions does the context place on \(n\)?

Solution

1. Evaluate the model at \(n = 8\): \(d(8) = \frac{1}{2} \cdot 8^2 - 1.5 \cdot 8 = 32 - 12 = 20\). 2. Set the model equal to \(54\): \(54 = \frac{1}{2}n^2 - 1.5n\). Multiplying by \(2\) gives \(n^2 - 3n - 108 = 0\). 3. Factor: \((n - 12)(n + 9) = 0\), so \(n = 12\) or \(n = -9\). 4. A polygon cannot have a negative number of sides, so only \(n = 12\) is meaningful.

Answer

a) \(20\) diagonals b) \(12\) sides c) The solution \(n = -9\) is not meaningful because a polygon cannot have a negative number of sides.
Quadratic models and interpretation 34
In a soccer league, each of the \(n\) teams plays every other team twice during the season, once at home and once away. a) Explain why the total number of games is \(S(n) = n^2 - n\). b) A completed season had \(240\) games. How many teams were in the league? c) If one more team joins, how many additional games must be scheduled? Express the increase in terms of \(n\).

Hints

- How many opponents does one team have? - Why does counting games team by team count each game twice? - What games must the new team play against the existing teams?

Solution

1. Each team has \(n - 1\) opponents and plays each opponent twice, giving \(2(n - 1)\) team-game counts per team. Multiplying by \(n\) counts each actual game twice, so \(S(n) = \frac{n \cdot 2(n - 1)}{2} = n(n - 1) = n^2 - n\). 2. Solve \(n^2 - n = 240\): \(n^2 - n - 240 = 0\). Factoring gives \((n - 16)(n + 15) = 0\), so \(n = 16\) or \(n = -15\). Only \(n = 16\) is meaningful. 3. The increase is \(S(n + 1) - S(n) = [(n + 1)^2 - (n + 1)] - (n^2 - n) = 2n\). Equivalently, the new team plays two games against each of the \(n\) existing teams.

Answer

a) \(S(n) = n(n - 1) = n^2 - n\) b) \(16\) teams c) \(2n\) additional games
Quadratic models and interpretation 35
In a computer network, every computer is directly connected to every other computer by one cable. a) How many computers are in the network if \(66\) cables are used? b) A technician claims, “If we double the number of computers, the required number of cables also doubles.” Test the claim mathematically.

Hints

- Use the formula for the number of pairs in a group. - Solve the equation in part a) before doubling the group size. - Recalculate the model for the doubled number of computers. - Compare the new result with twice the original value.

Solution

1. If there are \(n\) computers, the number of cables is \(\frac{n(n-1)}{2}\). For part a), solve \(\frac{n(n-1)}{2}=66\). 2. Rearranging gives \(n^2-n-132=0\). The quadratic formula gives \(n=\frac{1\pm23}{2}\), so \(n=12\) or \(n=-11\). Thus, the network has \(12\) computers. 3. Doubling the number of computers gives \(24\) computers. The required number of cables is \(\frac{24\cdot23}{2}=276\). 4. Twice the original number of cables is \(2\cdot66=132\). Since \(276\ne132\), the claim is false. The number of connections follows a quadratic, not linear, model.

Answer

a) \(12\) computers b) The claim is false. With \(24\) computers, the network needs \(276\) cables, not \(132\).
Quadratic models and interpretation 36
The product of two consecutive odd integers is \(195\). a) Let \(x\) be the smaller integer. Write a quadratic equation in \(x\) that models the condition. b) Solve the quadratic equation and give all ordered pairs of consecutive odd integers that satisfy the condition.

Hints

- Consecutive odd integers differ by \(2\). - Express both integers using one variable before using the product condition. - A positive product can come from two positive numbers or two negative numbers.

Solution

1. If \(x\) is the smaller odd integer, the next odd integer is \(x+2\). 2. The product condition gives \(x(x+2)=195\), so \(x^2+2x-195=0\). 3. Factor: \((x-13)(x+15)=0\), so \(x=13\) or \(x=-15\). 4. The corresponding ordered pairs are \((13,15)\) and \((-15,-13)\).

Answer

a) \(x^2+2x-195=0\) b) \((-15,-13)\) and \((13,15)\)
Quadratic models and interpretation 37
A rectangular building lot has an area of \(375\,\text{m}^2\). Its length is \(10\,\text{m}\) greater than its width, and the lot will be completely enclosed by a fence. a) Let \(x\) be the width. Write a quadratic equation that models the area condition. b) Solve the quadratic equation to find the lot dimensions. c) Find the total length of fencing needed.

Hints

- Express the length in terms of the width. - Use the area condition to create one equation in one variable. - Check which algebraic solution can represent a physical width. - The fencing length is the perimeter of the final rectangle.

Solution

1. Let \(x\) be the width in meters. Then the length is \(x+10\). 2. The area condition is \(x(x+10)=375\), so \(x^2+10x-375=0\). 3. Factor: \((x-15)(x+25)=0\), so \(x=15\) or \(x=-25\). 4. A width must be positive, so the lot is \(15\,\text{m}\) by \(25\,\text{m}\). 5. The perimeter is \(2(15+25)=80\,\text{m}\).

Answer

a) \(x^2+10x-375=0\) b) \(15\,\text{m}\) by \(25\,\text{m}\) c) \(80\,\text{m}\)
Quadratic models and interpretation 38
A right triangle has a hypotenuse of \(25\,\text{cm}\). One leg is exactly \(5\,\text{cm}\) shorter than the other. a) Let \(x\) be the longer leg. Use the side relationship and the Pythagorean theorem to write a quadratic equation in \(x\). b) Solve the quadratic equation to find both leg lengths. c) Find the area of the triangle.

Hints

- Express the shorter leg in terms of the longer leg. - The two leg expressions and the hypotenuse must satisfy one relationship. - After solving, reject any value that cannot be a side length. - Use the two valid legs as the base and height for the area.

Solution

1. Let \(x\) be the longer leg in centimeters. The shorter leg is \(x-5\). 2. The Pythagorean theorem gives \(x^2+(x-5)^2=25^2\). 3. Expand and simplify: \(2x^2-10x-600=0\), so \(x^2-5x-300=0\). 4. Factor: \((x-20)(x+15)=0\), so \(x=20\) or \(x=-15\). 5. The valid legs are \(20\,\text{cm}\) and \(15\,\text{cm}\). 6. The area is \(\frac{1}{2}\cdot20\cdot15=150\,\text{cm}^2\).

Answer

a) \(x^2+(x-5)^2=25^2\), equivalently \(x^2-5x-300=0\) b) \(20\,\text{cm}\) and \(15\,\text{cm}\) c) \(150\,\text{cm}^2\)
Quadratic models and interpretation 39
A small fountain sprays water along the path \(h(x) = -0.25x^2 + x + 1.25\), where \(x\) is the horizontal distance from the nozzle and \(h(x)\) is the height above the water surface, both in meters. a) How high above the water surface is the nozzle? b) Find the coordinates of the highest point of the stream. c) How far from the nozzle does the water hit the surface?

Hints

- What input represents the nozzle location? - How do you find the vertex of a quadratic model? - What value must \(h(x)\) have when the water reaches the surface? - Which root is meaningful as a distance from the nozzle?

Solution

1. At the nozzle, \(x = 0\): \(h(0) = 1.25\). The nozzle is \(1.25\,\text{m}\) above the water surface. 2. The vertex occurs at \(x = -\frac{1}{2 \cdot (-0.25)} = 2\). Then \(h(2) = -0.25 \cdot 2^2 + 2 + 1.25 = 2.25\). The highest point is \((2, 2.25)\). 3. Set \(h(x) = 0\): \(-0.25x^2 + x + 1.25 = 0\). Multiplying by \(-4\) gives \(x^2 - 4x - 5 = 0\), or \((x - 5)(x + 1) = 0\). 4. The solutions are \(x = 5\) and \(x = -1\). Only the positive distance is meaningful, so the water hits the surface \(5\,\text{m}\) from the nozzle.

Answer

a) \(1.25\,\text{m}\) b) \((2, 2.25)\) c) \(5\,\text{m}\)
Quadratic models and interpretation 40
Two consecutive natural numbers have squares whose sum is \(313\). Let \(n\) be the smaller number. Write a quadratic equation in \(n\) that models the condition, solve the quadratic algebraically, and state the two natural numbers.

Hints

- Represent the second number in terms of the smaller number. - Translate the sum-of-squares condition into one equation before simplifying. - After solving the quadratic, check which root satisfies the natural-number condition.

Solution

1. The next natural number is \(n+1\), so the condition gives \(n^2+(n+1)^2=313\). 2. Expand and simplify: \(2n^2+2n-312=0\), so \(n^2+n-156=0\). 3. Solve the quadratic: \(n=\frac{-1\pm\sqrt{1-4(1)(-156)}}{2}=\frac{-1\pm25}{2}\). 4. Thus, \(n=12\) or \(n=-13\). Only \(12\) is a natural number, so the two numbers are \(12\) and \(13\).

Answer

The quadratic equation is \(n^2+n-156=0\), and the two natural numbers are \(12\) and \(13\).
Quadratic models and interpretation 41
A square is changed into a rectangle by increasing one side by \(3\,\text{cm}\) and decreasing the adjacent side by \(2\,\text{cm}\). The new rectangle has an area of \(84\,\text{cm}^2\). a) Let \(x\) be the side length of the original square. Write a quadratic equation that models the new rectangle's area. b) Solve the quadratic equation and determine the original side length. c) Determine how much the area increased.

Hints

- Express both new rectangle dimensions in terms of the original square side. - Use the new area to create one equation in \(x\). - Check which algebraic solution can represent a side length. - Compare the original square area with the new rectangle area.

Solution

1. Let \(x\) be the side length of the square. The rectangle has side lengths \(x+3\) and \(x-2\). 2. The area condition is \((x+3)(x-2)=84\). 3. Expanding and rearranging gives \(x^2+x-90=0\). 4. Factor: \((x-9)(x+10)=0\), so \(x=9\) or \(x=-10\). Only \(x=9\,\text{cm}\) is a valid length. 5. The original area was \(9^2=81\,\text{cm}^2\), so the increase was \(84-81=3\,\text{cm}^2\).

Answer

a) \((x+3)(x-2)=84\), equivalently \(x^2+x-90=0\) b) \(9\,\text{cm}\) c) \(3\,\text{cm}^2\)
Quadratic models and interpretation 42
Two square floor tiles have different side lengths. The larger tile has a side that is \(10\,\text{cm}\) longer than the smaller tile. Together, the tiles have an area of \(2500\,\text{cm}^2\). a) Let \(s\) be the smaller side length. Write a quadratic equation that models the total area. b) Solve your quadratic equation algebraically and use its roots to determine both side lengths. c) Explain why only one root for \(s\) is meaningful in this context.

Hints

- Write each square area in terms of its side length. - Express the larger side using the smaller side. - Your quadratic has two mathematical roots; connect each root back to the side-length variable. - Which root satisfies the physical constraint on a length?

Solution

1. Let \(s\) be the smaller side length in centimeters. The larger side length is \(s+10\). 2. The sum of the areas gives \(s^2+(s+10)^2=2500\). 3. Simplify: \(2s^2+20s-2400=0\), or \(s^2+10s-1200=0\). 4. Factor: \((s-30)(s+40)=0\), so \(s=30\) or \(s=-40\). 5. A side length cannot be negative, so the smaller tile has side \(30\,\text{cm}\), and the larger tile has side \(40\,\text{cm}\).

Answer

a) \(s^2+(s+10)^2=2500\), equivalently \(s^2+10s-1200=0\) b) The roots are \(s=30\) and \(s=-40\), so the tile side lengths are \(30\,\text{cm}\) and \(40\,\text{cm}\). c) The root \(s=-40\) is rejected because a physical length cannot be negative.
Quadratic models and interpretation 43
A signal flare is launched from a height of \(1.5\,\text{m}\). Its height is modeled by \(h(t) = -5t^2 + v_0t + h_0\), where \(h\) is in meters, \(t\) is in seconds, \(v_0\) is the initial velocity in meters per second, and \(h_0\) is the initial height. After \(2\,\text{s}\), the flare is at a height of \(31.5\,\text{m}\). a) Find the height function. b) Find the flare's height after \(4\,\text{s}\).

Hints

- What is the value of \(h_0\) at launch? - Substitute the known time and height to solve for the missing coefficient. - Once the model is complete, substitute the requested time.

Solution

1. The initial height is \(h_0 = 1.5\). Substitute \(t = 2\) and \(h(2) = 31.5\): \(31.5 = -5 \cdot 2^2 + 2v_0 + 1.5\). 2. Simplify: \(31.5 = -18.5 + 2v_0\), so \(50 = 2v_0\) and \(v_0 = 25\). 3. The height function is \(h(t) = -5t^2 + 25t + 1.5\). 4. Evaluate at \(t = 4\): \(h(4) = -5 \cdot 4^2 + 25 \cdot 4 + 1.5 = 21.5\).

Answer

a) \(h(t) = -5t^2 + 25t + 1.5\) b) \(21.5\,\text{m}\)
Quadratic models and interpretation 44
A diver jumps from a \(10\,\text{m}\) platform. The diver's height above the water is modeled by \(h(t) = -5t^2 + v_0t + h_0\). After \(0.8\,\text{s}\), the diver is again at the platform's height of \(10\,\text{m}\). Find the maximum height reached during the dive.

Hints

- What equation follows from being at the same height at \(t = 0\) and \(t = 0.8\)? - How does parabola symmetry locate the vertex between two equal-height times? - Evaluate the completed model at that time.

Solution

1. Since \(h_0 = 10\) and \(h(0.8) = 10\), substitute into the model: \(10 = -5 \cdot 0.8^2 + 0.8v_0 + 10\). 2. Simplify: \(0 = -3.2 + 0.8v_0\), so \(v_0 = 4\). Thus, \(h(t) = -5t^2 + 4t + 10\). 3. The equal heights at \(t = 0\) and \(t = 0.8\) are symmetric about the vertex, so the maximum occurs at \(t = 0.4\,\text{s}\). 4. Evaluate \(h(0.4) = -5 \cdot 0.4^2 + 4 \cdot 0.4 + 10 = 10.8\). The maximum height is \(10.8\,\text{m}\).

Answer

The maximum height is \(10.8\,\text{m}\).
Quadratic models and interpretation 45
Two balls are thrown upward at the same time. Ball A's height is modeled by \(h_A(t) = -5t^2 + 20t + 2\). Ball B is thrown from a height of \(1\,\text{m}\) and reaches its highest point after exactly \(1.5\,\text{s}\). Assume Ball B also has leading coefficient \(-5\) in the model \(h(t) = at^2 + v_0t + h_0\). Which ball reaches the greater maximum height? Justify your answer with calculations.

Hints

- First find the maximum of the fully specified model. - How does the vertex-time formula determine Ball B's initial-velocity coefficient? - Evaluate both models at their vertex times and compare.

Solution

1. Ball A reaches its vertex at \(t = -\frac{20}{2 \cdot (-5)} = 2\). Its maximum height is \(h_A(2) = -5 \cdot 2^2 + 20 \cdot 2 + 2 = 22\,\text{m}\). 2. For Ball B, the vertex time satisfies \(1.5 = -\frac{v_0}{2 \cdot (-5)} = \frac{v_0}{10}\), so \(v_0 = 15\). 3. Ball B's model is \(h_B(t) = -5t^2 + 15t + 1\). Its maximum height is \(h_B(1.5) = -5 \cdot 1.5^2 + 15 \cdot 1.5 + 1 = 12.25\,\text{m}\). 4. Since \(22\,\text{m} > 12.25\,\text{m}\), Ball A reaches the greater maximum height.

Answer

Ball A reaches the greater maximum height: \(22\,\text{m}\), compared with Ball B's \(12.25\,\text{m}\).
Quadratic models and interpretation 46
A basketball's path is modeled by \(h(x) = -0.1x^2 + x + 2\), where \(x\) is the horizontal distance from the release point in meters and \(h(x)\) is the ball's height above the floor in meters. a) From what height is the ball released? b) What maximum height does the ball reach? c) An obstacle \(9\,\text{m}\) from the release point is \(3\,\text{m}\) high. Does the ball clear it? Justify your answer.

Hints

- What input represents the release point? - Where is the maximum of a downward-opening quadratic? - Evaluate the model at the obstacle's horizontal position. - What comparison determines whether the ball clears the obstacle?

Solution

1. At release, \(x = 0\): \(h(0) = 2\), so the release height is \(2\,\text{m}\). 2. The vertex occurs at \(x = -\frac{1}{2 \cdot (-0.1)} = 5\). Then \(h(5) = -0.1 \cdot 5^2 + 5 + 2 = 4.5\). The maximum height is \(4.5\,\text{m}\). 3. Evaluate the model at \(x = 9\): \(h(9) = -0.1 \cdot 9^2 + 9 + 2 = 2.9\). Since \(2.9\,\text{m} < 3\,\text{m}\), the ball does not clear the obstacle.

Answer

a) \(2\,\text{m}\) b) \(4.5\,\text{m}\) c) No. At \(x = 9\), the ball is \(2.9\,\text{m}\) high.
Quadratic models and interpretation 47
At a track-and-field meet, two shot-put paths are modeled by the following functions, where \(x\) is horizontal distance and \(h\) is height, both in meters: Athlete A: \(h_A(x) = -0.05x^2 + 0.6x + 2\) Athlete B: \(h_B(x) = -0.04x^2 + 0.5x + 2.1\) a) Which shot reaches the greater maximum height? b) Which shot travels farther before reaching the ground? Justify by finding the positive zeros.

Hints

- How do you find the maximum of each downward-opening quadratic? - What does a positive zero represent in this context? - Keep only the positive solution because distance is measured forward from \(x = 0\). - Compare the two landing distances.

Solution

1. Athlete A's vertex occurs at \(x = -\frac{0.6}{2 \cdot (-0.05)} = 6\). The maximum height is \(h_A(6) = 3.8\,\text{m}\). 2. Athlete B's vertex occurs at \(x = -\frac{0.5}{2 \cdot (-0.04)} = 6.25\). The maximum height is \(h_B(6.25) = 3.6625\,\text{m}\). Therefore, Athlete A's shot reaches the greater maximum height. 3. For Athlete A, solve \(-0.05x^2 + 0.6x + 2 = 0\). The positive zero is \(x = 6 + \sqrt{76} \approx 14.72\,\text{m}\). 4. For Athlete B, solve \(-0.04x^2 + 0.5x + 2.1 = 0\). The positive zero is \(x = \frac{25 + \sqrt{1465}}{4} \approx 15.82\,\text{m}\). 5. Since \(15.82\,\text{m} > 14.72\,\text{m}\), Athlete B's shot travels farther.

Answer

a) Athlete A, with a maximum height of \(3.8\,\text{m}\), compared with Athlete B's \(3.6625\,\text{m}\) b) Athlete B; its shot travels about \(15.82\,\text{m}\), compared with Athlete A's \(14.72\,\text{m}\).
Quadratic models and interpretation 48
A farmer is building a rectangular animal enclosure against a long, straight barn wall. The wall forms one side, so only the other three sides need fencing. The farmer has \(120\,\text{ft}\) of fencing. Find the enclosure dimensions that maximize the area. Then compare the maximum area with the area of a square enclosure that also uses the barn wall as its fourth side and the same amount of fencing.

Hints

- Draw the enclosure and identify which three sides require fencing. - Use the fencing constraint to express one dimension in terms of the other. - Write the area as a quadratic function and find its vertex. - For the square comparison, all three fenced sides have the same length.

Solution

1. Let \(x\) be the length of each side perpendicular to the barn and \(y\) the fenced side parallel to the barn. The fencing constraint is \(2x + y = 120\), so \(y = 120 - 2x\). 2. The area is \(A(x) = x(120 - 2x) = -2x^2 + 120x\). 3. The maximum occurs at the vertex: \(x = -\frac{120}{2 \cdot (-2)} = 30\). Then \(y = 120 - 2 \cdot 30 = 60\). 4. The maximum area is \(30 \cdot 60 = 1800\,\text{ft}^2\). 5. For a square with three fenced sides, \(3s = 120\), so \(s = 40\,\text{ft}\). Its area is \(40^2 = 1600\,\text{ft}^2\), which is smaller than the maximum rectangular area.

Answer

The maximizing dimensions are \(30\,\text{ft}\) perpendicular to the barn and \(60\,\text{ft}\) parallel to it, giving \(1800\,\text{ft}^2\). A square would have side length \(40\,\text{ft}\) and area \(1600\,\text{ft}^2\), so it has less area.
Quadratic models and interpretation 49
A bakery sells an average of \(200\) granola bars per day at \(\$1.50\) each. For every \(\$0.10\) increase in price, the bakery sells \(10\) fewer bars per day; for every \(\$0.10\) decrease, it sells \(10\) more. Prices may change only in \(\$0.10\) increments. Find the price or prices that maximize daily revenue.

Hints

- Let an integer variable count the number of 10-cent price changes. - Revenue equals price times quantity sold. - The vertex lies between two allowable integer inputs, so compare both neighboring values.

Solution

1. Let \(x\) be the integer number of \(\$0.10\) price increases, where a negative value represents a decrease. The price is \(P(x) = 1.50 + 0.10x\), and the number sold is \(Q(x) = 200 - 10x\). 2. The revenue is \(R(x) = (1.50 + 0.10x)(200 - 10x) = -x^2 + 5x + 300\). 3. The continuous vertex occurs at \(x = -\frac{5}{2 \cdot (-1)} = 2.5\). Because \(x\) must be an integer, compare \(x = 2\) and \(x = 3\). 4. \(R(2) = 306\) and \(R(3) = 306\). The corresponding prices are \(P(2) = \$1.70\) and \(P(3) = \$1.80\). Both maximize the daily revenue.

Answer

The maximizing prices are \(\$1.70\) and \(\$1.80\). Each gives daily revenue of \(\$306\).
Quadratic models and interpretation 50
A community center is planning a concert. Renting the venue and equipment costs a fixed \(\$750\). The expected attendance depends on ticket price \(x\), in dollars, according to \(N(x) = 200 - 10x\). a) Find the ticket price that maximizes profit. b) For what range of ticket prices does the community center avoid a loss? Include the break-even prices.

Hints

- Profit equals revenue minus fixed cost. - Use the vertex of the profit function for part a. - For part b, find the zeros and determine where the downward-opening parabola is on or above the x-axis.

Solution

1. Revenue is \(xN(x)\), so profit is \(P(x) = x(200 - 10x) - 750 = -10x^2 + 200x - 750\). 2. The maximum occurs at the vertex: \(x = -\frac{200}{2 \cdot (-10)} = 10\). The profit-maximizing ticket price is \(\$10\). 3. To find the no-loss interval, solve \(-10x^2 + 200x - 750 = 0\). Dividing by \(-10\) gives \(x^2 - 20x + 75 = 0\). 4. Factor: \((x - 5)(x - 15) = 0\). The break-even prices are \(\$5\) and \(\$15\). 5. Since the profit parabola opens downward, profit is nonnegative between the zeros, including the endpoints. Thus, \(5 \leq x \leq 15\).

Answer

a) \(\$10\) b) Ticket prices from \(\$5\) through \(\$15\), including both break-even prices
Quadratic models and interpretation 51
A car's braking distance is modeled differently for dry and wet pavement. For speeds in miles per hour, the distances in feet are \(s_d(v) = 0.04v^2\) on dry pavement and \(s_w(v) = 0.064v^2\) on wet pavement. a) Find both braking distances at \(30\,\text{mph}\). By what percent is the wet-pavement distance greater than the dry-pavement distance? b) On wet pavement, the braking distance at \(50\,\text{mph}\) is the same as the dry-pavement braking distance at what speed? Round to the nearest tenth of a mile per hour.

Hints

- Evaluate both models at the same speed. - Use the dry-pavement distance as the original amount when finding the percent increase. - For part b, first find the wet-pavement distance, then set the dry model equal to it.

Solution

1. At \(30\,\text{mph}\), \(s_d(30) = 0.04 \cdot 30^2 = 36\,\text{ft}\), and \(s_w(30) = 0.064 \cdot 30^2 = 57.6\,\text{ft}\). 2. The increase is \(57.6 - 36 = 21.6\,\text{ft}\). Relative to the dry distance, the percent increase is \(\frac{21.6}{36} \cdot 100\% = 60\%\). 3. The wet-pavement distance at \(50\,\text{mph}\) is \(s_w(50) = 0.064 \cdot 50^2 = 160\,\text{ft}\). 4. Set the dry-pavement model equal to \(160\): \(0.04v^2 = 160\). Then \(v^2 = 4000\), so \(v = \sqrt{4000} \approx 63.2\).

Answer

a) Dry: \(36\,\text{ft}\); wet: \(57.6\,\text{ft}\). The wet-pavement distance is \(60\%\) greater. b) Approximately \(63.2\,\text{mph}\)
Quadratic models and interpretation 52
A car's total stopping distance is modeled by \(S(v) = 1.1v + 0.04v^2\), where \(v\) is the speed in miles per hour and \(S(v)\) is the distance in feet. The linear term models reaction distance, and the quadratic term models braking distance. a) Find the total stopping distance at \(65\,\text{mph}\). b) Explain how doubling the speed affects the reaction-distance term and the braking-distance term. c) At what speed is the braking-distance term exactly \(144\,\text{ft}\)?

Hints

- Evaluate each term of the model separately before adding. - Replace \(v\) with \(2v\) to compare the two parts of the model. - In part c, use only the quadratic braking-distance term.

Solution

1. Evaluate the model at \(65\): \(S(65) = 1.1 \cdot 65 + 0.04 \cdot 65^2 = 71.5 + 169 = 240.5\). The total stopping distance is \(240.5\,\text{ft}\). 2. If the speed changes from \(v\) to \(2v\), the reaction term becomes \(1.1(2v) = 2(1.1v)\), so it doubles. The braking term becomes \(0.04(2v)^2 = 4(0.04v^2)\), so it quadruples. 3. Set the braking term equal to \(144\): \(0.04v^2 = 144\). Then \(v^2 = 3600\), so \(v = 60\) because speed is positive.

Answer

a) \(240.5\,\text{ft}\) b) Doubling the speed doubles the reaction-distance term and quadruples the braking-distance term. c) \(60\,\text{mph}\)
Quadratic models and interpretation 53
The path of a tennis ball is modeled by \(h(x) = -0.5x^2 + 2x + 2.5\), where \(x\) is the horizontal distance from the point of contact and \(h(x)\) is the ball's height, both in meters. a) Find the ball's maximum height. b) Find how far the ball travels horizontally before it hits the ground. c) Suppose the ball starts \(1\,\text{m}\) higher under otherwise identical conditions. Write the new function.

Hints

- Where is the maximum of a downward-opening parabola? - What equation represents the moment the ball reaches the ground? - Which coefficient gives the height when \(x = 0\)?

Solution

1. The maximum occurs at the vertex. Its horizontal coordinate is \(x = -\frac{2}{2 \cdot (-0.5)} = 2\). 2. Evaluate the height: \(h(2) = -0.5 \cdot 2^2 + 2 \cdot 2 + 2.5 = 4.5\). The maximum height is \(4.5\,\text{m}\). 3. To find when the ball reaches the ground, solve \(-0.5x^2 + 2x + 2.5 = 0\). Multiplying by \(-2\) gives \(x^2 - 4x - 5 = 0\), which factors as \((x - 5)(x + 1) = 0\). The context-valid solution is \(x = 5\), so the horizontal distance is \(5\,\text{m}\). 4. Raising the initial height by \(1\,\text{m}\) increases the constant term from \(2.5\) to \(3.5\). The new function is \(h_{\text{new}}(x) = -0.5x^2 + 2x + 3.5\).

Answer

a) \(4.5\,\text{m}\) b) \(5\,\text{m}\) c) \(h_{\text{new}}(x) = -0.5x^2 + 2x + 3.5\)
Quadratic models and interpretation 54
A gardener records the height of a bamboo plant. At week \(0\), the plant is \(50\,\text{cm}\) tall. At week \(2\), it is \(90\,\text{cm}\) tall, and at week \(4\), it is \(170\,\text{cm}\) tall. a) Find a linear model \(h_{\text{lin}}(t)\) using the data from weeks \(0\) and \(4\). Then find a quadratic model \(h_{\text{quad}}(t)\) using all three data points. b) At week \(5\), the measured height is \(222.5\,\text{cm}\). Determine which model gives the better prediction and justify your answer.

Hints

- How many points determine a linear model? How many determine a quadratic model? - Substitute the data points into each model's general form. - Compare each week-\(5\) prediction with the measured height using absolute error.

Solution

1. For the linear model, \(h_{\text{lin}}(0) = 50\), so the y-intercept is \(50\). The slope through \((0, 50)\) and \((4, 170)\) is \(\frac{170 - 50}{4 - 0} = 30\). Thus, \(h_{\text{lin}}(t) = 30t + 50\). 2. Let \(h_{\text{quad}}(t) = at^2 + bt + c\). From \(h_{\text{quad}}(0) = 50\), \(c = 50\). 3. Using \((2, 90)\) gives \(4a + 2b = 40\), or \(2a + b = 20\). Using \((4, 170)\) gives \(16a + 4b = 120\), or \(4a + b = 30\). 4. Subtract the equations: \(2a = 10\), so \(a = 5\). Then \(2 \cdot 5 + b = 20\), so \(b = 10\). Therefore, \(h_{\text{quad}}(t) = 5t^2 + 10t + 50\). 5. At week \(5\), the linear model predicts \(h_{\text{lin}}(5) = 200\,\text{cm}\), with an absolute error of \(22.5\,\text{cm}\). The quadratic model predicts \(h_{\text{quad}}(5) = 225\,\text{cm}\), with an absolute error of \(2.5\,\text{cm}\). The quadratic model gives the better prediction.

Answer

a) \(h_{\text{lin}}(t) = 30t + 50\) \(h_{\text{quad}}(t) = 5t^2 + 10t + 50\) b) The quadratic model is better. Its prediction is \(225\,\text{cm}\), which is \(2.5\,\text{cm}\) from the measured value; the linear prediction is \(200\,\text{cm}\), which is \(22.5\,\text{cm}\) away.
Quadratic models and interpretation 55
A start-up company tracks monthly users after launching an app. The table shows the number of users, in thousands, at several times after launch. <table> <thead> <tr><th>Months after launch \(x\)</th><th>0</th><th>5</th><th>10</th></tr> </thead> <tbody> <tr><th>Users \(y\) (thousands)</th><td>0</td><td>25</td><td>80</td></tr> </tbody> </table> a) Find a linear function \(f(x) = mx\) that passes through the starting point and the final data point \((10, 80)\). b) Find a quadratic function \(g(x) = ax^2 + bx\) that passes through all three data points. c) Use both models to predict the number of users in month \(12\). If the user base is growing at an increasing rate, which model is more consistent with that assumption?

Hints

- Use the point \((10, 80)\) to find the slope of the linear model. - Substitute the two nonzero data points into \(g(x) = ax^2 + bx\). - Compare whether each model has a constant or increasing rate of change.

Solution

1. For the linear model, substitute \((10, 80)\): \(80 = 10m\), so \(m = 8\). Therefore, \(f(x) = 8x\). 2. For the quadratic model, use \((5, 25)\): \(25a + 5b = 25\), so \(5a + b = 5\). 3. Use \((10, 80)\): \(100a + 10b = 80\), so \(10a + b = 8\). Subtracting the equations gives \(5a = 3\), so \(a = 0.6\). Then \(5 \cdot 0.6 + b = 5\), so \(b = 2\). Thus, \(g(x) = 0.6x^2 + 2x\). 4. In month \(12\), \(f(12) = 8 \cdot 12 = 96\), so the linear model predicts \(96{,}000\) users. Also, \(g(12) = 0.6 \cdot 12^2 + 2 \cdot 12 = 110.4\), so the quadratic model predicts \(110{,}400\) users. 5. A linear model has a constant growth rate, while this quadratic model has an increasing growth rate for \(x \geq 0\). Under the stated assumption, the quadratic model is more consistent.

Answer

a) \(f(x) = 8x\) b) \(g(x) = 0.6x^2 + 2x\) c) Linear model: \(96{,}000\) users Quadratic model: \(110{,}400\) users The quadratic model is more consistent with an increasing growth rate.
Quadratic models and interpretation 56
Two basketballs are thrown from the same point. Their paths are modeled by \(h_1(x) = -0.1x^2 + 1.2x + 6\) and \(h_2(x) = -0.05x^2 + 0.8x + 6\), where \(x\) is horizontal distance and each height is measured in feet. a) From what height are both balls released? b) Which ball reaches the greater maximum height? Support your answer with calculations. c) If there are no obstacles, which ball travels farther horizontally before hitting the ground? Find both horizontal distances.

Hints

- Evaluate both functions at \(x = 0\). - Find the vertex of each downward-opening parabola. - To find horizontal distance, solve each equation when the height is \(0\) and keep the positive solution.

Solution

1. At release, \(x = 0\). Since \(h_1(0) = h_2(0) = 6\), both balls are released from \(6\,\text{ft}\). 2. For the first ball, the vertex occurs at \(x = -\frac{1.2}{2 \cdot (-0.1)} = 6\). Its maximum height is \(h_1(6) = -0.1 \cdot 6^2 + 1.2 \cdot 6 + 6 = 9.6\,\text{ft}\). 3. For the second ball, the vertex occurs at \(x = -\frac{0.8}{2 \cdot (-0.05)} = 8\). Its maximum height is \(h_2(8) = -0.05 \cdot 8^2 + 0.8 \cdot 8 + 6 = 9.2\,\text{ft}\). Therefore, the first ball reaches the greater maximum height. 4. For the first ball, solve \(-0.1x^2 + 1.2x + 6 = 0\). This is equivalent to \(x^2 - 12x - 60 = 0\), so the positive zero is \(x = 6 + 4\sqrt{6} \approx 15.80\,\text{ft}\). 5. For the second ball, solve \(-0.05x^2 + 0.8x + 6 = 0\). This is equivalent to \(x^2 - 16x - 120 = 0\), so the positive zero is \(x = 8 + 2\sqrt{46} \approx 21.56\,\text{ft}\). Therefore, the second ball travels farther.

Answer

a) \(6\,\text{ft}\) b) The first ball; its maximum height is \(9.6\,\text{ft}\), compared with \(9.2\,\text{ft}\) for the second ball. c) The second ball travels farther. The first travels about \(15.80\,\text{ft}\), and the second travels about \(21.56\,\text{ft}\).
Quadratic models and interpretation 57
Campus Ink, a student-run business, sells custom T-shirts. Its monthly profit \(P\), in dollars, is modeled by \(P(x)=-2x^2+60x-400\), where \(x\) is the price of one shirt in dollars. a) Find the two prices at which the business breaks even. b) What price maximizes the monthly profit, and what is the maximum profit? c) Interpret \(P(0)=-400\) in this context.

Hints

- What profit value represents breaking even? - Which feature of a downward-opening parabola gives the maximum profit? - Interpret the input and output when \(x=0\).

Solution

1. At a break-even price, \(P(x)=0\). Solve \(-2x^2+60x-400=0\). Dividing by \(-2\) gives \(x^2-30x+200=0\), which factors as \((x-10)(x-20)=0\). The break-even prices are \(\$10\) and \(\$20\). 2. The maximum occurs at the vertex because the parabola opens downward. Its horizontal coordinate is \(x=-\frac{60}{2\cdot(-2)}=15\). Then \(P(15)=-2\cdot15^2+60\cdot15-400=50\). The profit is maximized at a price of \(\$15\), and the maximum modeled monthly profit is \(\$50\). 3. The value \(P(0)=-400\) means that the model predicts a \(\$400\) monthly loss if the shirts are priced at \(\$0\). The model alone does not show that the entire amount represents fixed costs.

Answer

a) \(\$10\) and \(\$20\) b) A price of \(\$15\) gives a maximum monthly profit of \(\$50\). c) The model predicts a monthly loss of \(\$400\) when the price is \(\$0\); the model does not establish that this amount consists entirely of fixed costs.
Quadratic models and interpretation 58
In a right triangle, the two legs have a total length of \(31\,\text{cm}\), and the hypotenuse is \(25\,\text{cm}\). Use a quadratic equation to find the lengths of the legs.

Hints

- Use the given sum to express one leg in terms of the other. - Apply the Pythagorean theorem. - Expand the square of a difference carefully. - Factor the resulting quadratic equation.

Solution

1. Let one leg be \(a\). Then the other leg is \(31-a\). 2. Apply the Pythagorean theorem: \(a^2+(31-a)^2=25^2\). 3. Expand and simplify: \(2a^2-62a+336=0\), so \(a^2-31a+168=0\). 4. Factor: \((a-7)(a-24)=0\), so \(a=7\) or \(a=24\). 5. The corresponding other leg is \(24\) or \(7\). Therefore, the legs are \(7\,\text{cm}\) and \(24\,\text{cm}\).

Answer

\(7\,\text{cm}\) and \(24\,\text{cm}\)
Quadratic models and interpretation 59
A right triangle has an area of \(30\,\text{cm}^2\). One leg is \(7\,\text{cm}\) longer than the other. a) Let \(x\) be the shorter leg. Write a quadratic equation that models the area condition. b) Solve the quadratic equation to find the two leg lengths. c) Find the length of the hypotenuse.

Hints

- Express the longer leg in terms of the shorter leg. - Use the two leg expressions in the triangle area formula. - Check which algebraic solution can represent a length. - Once the legs are known, use their right-angle relationship to find the remaining side.

Solution

1. Let the shorter leg be \(x\). The longer leg is \(x+7\). 2. The area condition is \(30=\frac{1}{2}x(x+7)\), so \(x^2+7x-60=0\). 3. Factor: \((x-5)(x+12)=0\), so \(x=5\) or \(x=-12\). 4. A leg length must be positive, so the legs are \(5\,\text{cm}\) and \(12\,\text{cm}\). 5. By the Pythagorean theorem, \(c^2=5^2+12^2=169\), so \(c=13\,\text{cm}\).

Answer

a) \(x^2+7x-60=0\) b) \(5\,\text{cm}\) and \(12\,\text{cm}\) c) \(13\,\text{cm}\)
Quadratic models and interpretation 60
A tunnel opening is modeled by \(y = -0.2x^2 + 5\), where \(x\) and \(y\) are measured in meters and the x-axis represents the ground. a) Find the width of the tunnel at ground level. b) A rectangular vehicle is \(4\,\text{m}\) high and drives through the center of the tunnel. What is the greatest possible width of the vehicle if it is to fit exactly beneath the arch?

Hints

- What value of \(y\) represents ground level? - For part b, what height corresponds to the vehicle's top corners? - Because the vehicle is centered, its width spans equal distances on both sides of the y-axis.

Solution

1. At ground level, \(y = 0\). Solve \(0 = -0.2x^2 + 5\): \(0.2x^2 = 5\), so \(x^2 = 25\) and \(x = \pm 5\). The tunnel is \(5 - (-5) = 10\,\text{m}\) wide at the ground. 2. At the top corners of a \(4\,\text{m}\)-high vehicle, set \(y = 4\): \(4 = -0.2x^2 + 5\). Then \(0.2x^2 = 1\), so \(x^2 = 5\) and \(x = \pm\sqrt{5}\). 3. The greatest possible width is the distance between these two horizontal positions: \(\sqrt{5} - (-\sqrt{5}) = 2\sqrt{5} \approx 4.47\,\text{m}\).

Answer

a) \(10\,\text{m}\) b) \(2\sqrt{5}\,\text{m} \approx 4.47\,\text{m}\)
Quadratic models and interpretation 61
A valley's cross section is modeled by \(y = 0.005x^2\), with the origin at the lowest point of the valley and both coordinates measured in meters. Two monitoring stations are at the same elevation on opposite slopes, and the horizontal distance between them is \(120\,\text{m}\). a) Find the elevation \(h\) of the stations above the lowest point. b) After heavy rain, the water reaches exactly half the stations' elevation, \(\frac{1}{2}h\). Find the width of the water surface.

Hints

- Split the total distance equally on both sides of the y-axis. - Substitute a station's horizontal coordinate into the model. - At the water elevation, find both symmetric horizontal coordinates and calculate the full width.

Solution

1. Because the stations are at equal heights on opposite sides of the y-axis and are \(120\,\text{m}\) apart, their horizontal coordinates are \(x = -60\) and \(x = 60\). 2. Evaluate the model: \(h = 0.005 \cdot 60^2 = 18\). The stations are \(18\,\text{m}\) above the lowest point. 3. The water elevation is \(\frac{1}{2} \cdot 18 = 9\,\text{m}\). Set \(9 = 0.005x^2\), so \(x^2 = 1800\) and \(x = \pm\sqrt{1800} = \pm 30\sqrt{2}\). 4. The water surface extends from \(-30\sqrt{2}\) to \(30\sqrt{2}\), so its width is \(60\sqrt{2}\,\text{m} \approx 84.85\,\text{m}\).

Answer

a) \(18\,\text{m}\) b) \(60\sqrt{2}\,\text{m} \approx 84.85\,\text{m}\)
Quadratic models and interpretation 62
A \(20\,\text{cm}\times30\,\text{cm}\) photo is placed in a frame of uniform width \(x\). The total area of the photo and frame is \(1064\,\text{cm}^2\). a) Write a quadratic equation that models the total area in terms of \(x\). b) Solve the quadratic equation to find the frame width. c) Explain why the other algebraic solution is not meaningful in this context.

Hints

- A uniform frame adds the width on both sides of each photo dimension. - Use the outer rectangle's area to form one equation in \(x\). - A quadratic model can produce a mathematical root that violates the physical meaning of the variable.

Solution

1. The outer dimensions are \(20+2x\) and \(30+2x\). 2. The area condition is \((20+2x)(30+2x)=1064\). 3. Expanding and simplifying gives \(4x^2+100x-464=0\), or \(x^2+25x-116=0\). 4. The quadratic formula gives \(x=\frac{-25\pm33}{2}\), so \(x=4\) or \(x=-29\). 5. A frame width cannot be negative, so the frame width is \(4\,\text{cm}\).

Answer

a) \((20+2x)(30+2x)=1064\), equivalently \(x^2+25x-116=0\) b) \(4\,\text{cm}\) c) The root \(x=-29\) is rejected because a frame width cannot be negative.
Quadratic models and interpretation 63
A farmer has \(60\,\text{m}\) of fencing to build a rectangular sheep enclosure. The entire amount will be used for the perimeter, and the enclosure must have an area of \(221\,\text{m}^2\). a) Let \(x\) be one side length. Use the perimeter condition to write the other side in terms of \(x\), then write a quadratic equation for the area. b) Solve the quadratic equation and give the enclosure dimensions. c) Explain why the two positive roots describe the same rectangle rather than two different enclosures.

Hints

- Use all \(60\,\text{m}\) of fencing to relate the two side lengths. - Substitute that relationship into the area condition. - After solving, pair each root with the corresponding value of the other side. - Compare the two resulting ordered side pairs.

Solution

1. If one side is \(x\), the perimeter condition gives \(x+y=30\), so the other side is \(30-x\). 2. The area condition is \(x(30-x)=221\), so \(x^2-30x+221=0\). 3. Factor: \((x-13)(x-17)=0\), so \(x=13\) or \(x=17\). 4. When \(x=13\), the other side is \(17\); when \(x=17\), the other side is \(13\). 5. Both roots therefore describe the same \(13\,\text{m}\) by \(17\,\text{m}\) rectangle with the side labels exchanged.

Answer

a) The other side is \(30-x\), and \(x(30-x)=221\), equivalently \(x^2-30x+221=0\). b) \(13\,\text{m}\) by \(17\,\text{m}\) c) The roots exchange which side is called \(x\), so they describe the same rectangle.
Quadratic models and interpretation 64
A patio is \(15\,\text{ft}\) long and \(10\,\text{ft}\) wide. A border of uniform width \(x\) will be tiled along the inside edges. The untiled rectangle in the center has an area of \(84\,\text{ft}^2\). a) Write a quadratic equation for the untiled area and state the physically reasonable domain for \(x\). b) Solve the quadratic equation and use the domain to determine the border width.

Hints

- An inside border reduces each center dimension on two sides. - Before solving, ask how wide the border can be while leaving a positive center rectangle. - Compare every algebraic solution with that physical domain.

Solution

1. The center rectangle has dimensions \(15-2x\) and \(10-2x\). 2. The area condition is \((15-2x)(10-2x)=84\), which simplifies to \(2x^2-25x+33=0\). 3. Because the smaller outside dimension is \(10\,\text{ft}\), the center must have positive width, so \(0<x<5\). 4. The quadratic formula gives \(x=\frac{25\pm19}{4}\), so \(x=11\) or \(x=1.5\). 5. Only \(x=1.5\) lies in the physical domain. The border width is \(1.5\,\text{ft}\).

Answer

a) \((15-2x)(10-2x)=84\), equivalently \(2x^2-25x+33=0\), with \(0<x<5\) b) \(1.5\,\text{ft}\)
Quadratic models and interpretation 65
A parabolic bridge arch spans a river that is \(40\,\text{m}\) wide. The arch meets the ground at both riverbanks. At a point \(10\,\text{m}\) horizontally from the left bank, the arch is \(15\,\text{m}\) high. a) Find a function \(h(x)\) that models the height of the arch, where \(x\) is the horizontal distance from the left bank. b) Find the maximum height of the arch.

Hints

- Use the two ground-level points as the zeros of the quadratic. - Substitute the additional point to determine the leading coefficient. - Where is the vertex relative to two symmetric zeros?

Solution

1. The arch has zeros at \(x = 0\) and \(x = 40\), so write \(h(x) = ax(x - 40)\). 2. Use the point \((10, 15)\): \(15 = a \cdot 10 \cdot (10 - 40) = -300a\). Thus, \(a = -0.05\). 3. The model is \(h(x) = -0.05x(x - 40) = -0.05x^2 + 2x\). 4. The vertex lies midway between the zeros at \(x = 20\). Evaluate \(h(20) = -0.05 \cdot 20^2 + 2 \cdot 20 = 20\). The maximum height is \(20\,\text{m}\).

Answer

a) \(h(x) = -0.05x^2 + 2x\) b) \(20\,\text{m}\)
Quadratic models and interpretation 66
A fountain stream starts at ground level at \(x = 0\) and lands on the ground again \(8\,\text{m}\) away. At a horizontal distance of \(2\,\text{m}\), the stream is \(3\,\text{m}\) high. a) Find a quadratic function that models the stream's path. b) Find the maximum height of the stream. c) At what two horizontal distances is the stream exactly \(2\,\text{m}\) high? Round to the nearest hundredth of a meter.

Hints

- Use the starting and landing positions as zeros. - The maximum lies midway between the two zeros. - For part c, set the function equal to the specified height and solve the resulting quadratic equation.

Solution

1. The zeros are \(x = 0\) and \(x = 8\), so write \(f(x) = ax(x - 8)\). 2. Use the point \((2, 3)\): \(3 = a \cdot 2 \cdot (2 - 8) = -12a\), so \(a = -0.25\). Thus, \(f(x) = -0.25x^2 + 2x\). 3. The vertex lies midway between the zeros at \(x = 4\). Evaluate \(f(4) = -0.25 \cdot 4^2 + 2 \cdot 4 = 4\). The maximum height is \(4\,\text{m}\). 4. Set the height equal to \(2\): \(-0.25x^2 + 2x = 2\). This is equivalent to \(x^2 - 8x + 8 = 0\). 5. Using the quadratic formula, \(x = \frac{8 \pm \sqrt{64 - 32}}{2} = 4 \pm 2\sqrt{2}\). Therefore, \(x \approx 1.17\,\text{m}\) and \(x \approx 6.83\,\text{m}\).

Answer

a) \(f(x) = -0.25x^2 + 2x\) b) \(4\,\text{m}\) c) Approximately \(1.17\,\text{m}\) and \(6.83\,\text{m}\)
Quadratic models and interpretation 67
A gardener has \(40\,\text{ft}\) of edging for a rectangular garden bed. a) Find the area of a bed that is \(8\,\text{ft}\) by \(12\,\text{ft}\). b) Determine whether a square bed with the same perimeter has a greater area. c) Use a quadratic function to find the side lengths that maximize the area and state the maximum area.

Hints

- Use the perimeter to relate the two side lengths. - Express one side in terms of the other and write the area as a quadratic. - The vertex of the downward-opening area function gives the maximum.

Solution

1. The \(8\)-by-\(12\) bed has area \(8 \cdot 12 = 96\,\text{ft}^2\). 2. A square with perimeter \(40\,\text{ft}\) has side length \(40 \div 4 = 10\,\text{ft}\), so its area is \(10^2 = 100\,\text{ft}^2\). This is greater than \(96\,\text{ft}^2\). 3. Let the rectangle's side lengths be \(x\) and \(y\). From \(2x + 2y = 40\), \(y = 20 - x\). 4. The area is \(A(x) = x(20 - x) = -x^2 + 20x\). Its vertex occurs at \(x = -\frac{20}{2 \cdot (-1)} = 10\). 5. Then \(y = 10\), so the maximum-area rectangle is a \(10\,\text{ft}\) by \(10\,\text{ft}\) square with area \(100\,\text{ft}^2\).

Answer

a) \(96\,\text{ft}^2\) b) Yes. The square has area \(100\,\text{ft}^2\). c) \(10\,\text{ft}\) by \(10\,\text{ft}\), with maximum area \(100\,\text{ft}^2\)
Quadratic models and interpretation 68
Two fountain streams cross in a park. Their paths are modeled by \(f(x) = -0.5x^2 + 2x + 1\) and \(g(x) = -x^2 + 3x + 1\), where \(x\) is horizontal distance and each output is height, all in meters. a) Find the point where the streams cross other than their shared starting point at \(x = 0\). b) Which stream reaches the greater maximum height? Justify your answer by finding both vertices.

Hints

- At an intersection, set the two function values equal. - Factor the resulting quadratic equation. - Use the vertex formula to find each maximum height.

Solution

1. At an intersection, the heights are equal: \(-0.5x^2 + 2x + 1 = -x^2 + 3x + 1\). 2. Simplify: \(0.5x^2 - x = 0\). Factoring gives \(x(0.5x - 1) = 0\), so \(x = 0\) or \(x = 2\). The nonstarting intersection has \(x = 2\). 3. Evaluate either function: \(f(2) = -0.5 \cdot 2^2 + 2 \cdot 2 + 1 = 3\). The second intersection is \((2, 3)\). 4. For \(f\), the vertex occurs at \(x = -\frac{2}{2 \cdot (-0.5)} = 2\), and \(f(2) = 3\). Its vertex is \((2, 3)\), so its maximum height is \(3\,\text{m}\). 5. For \(g\), the vertex occurs at \(x = -\frac{3}{2 \cdot (-1)} = 1.5\), and \(g(1.5) = 3.25\). Its vertex is \((1.5, 3.25)\), so its maximum height is \(3.25\,\text{m}\). Therefore, the stream modeled by \(g\) reaches the greater maximum height.

Answer

a) \((2, 3)\) b) The stream modeled by \(g\). Its vertex is \((1.5, 3.25)\), compared with \((2, 3)\) for \(f\), so its maximum height is \(3.25\,\text{m}\) rather than \(3\,\text{m}\).
Quadratic models and interpretation 69
A tunnel entrance is modeled by \(h(x) = -0.15x^2 + 5.4\), where the x-axis represents the roadway and both coordinates are measured in meters. a) Find the tunnel's total width at ground level. b) A truck is \(3.20\,\text{m}\) wide and \(3.80\,\text{m}\) high. Can it pass through the center of the tunnel? Justify your answer algebraically. c) What is the greatest possible width of a rectangular vehicle that is \(4.50\,\text{m}\) high and centered in the tunnel?

Hints

- Set the height equal to \(0\) to find the ground-level intercepts. - A centered vehicle extends half its width to each side of the y-axis. - For part c, find the two horizontal positions where the tunnel height equals the vehicle height.

Solution

1. At ground level, set \(h(x) = 0\): \(0 = -0.15x^2 + 5.4\). Then \(x^2 = 36\), so \(x = \pm 6\). The total ground-level width is \(12\,\text{m}\). 2. A centered \(3.20\,\text{m}\)-wide truck extends \(1.60\,\text{m}\) on either side of the center. At an outer edge, \(h(1.60) = -0.15 \cdot 1.60^2 + 5.4 = 5.016\,\text{m}\). 3. Since \(5.016\,\text{m} > 3.80\,\text{m}\), the truck can pass through the center. 4. For a vehicle height of \(4.50\,\text{m}\), solve \(4.50 = -0.15x^2 + 5.4\). Then \(0.15x^2 = 0.90\), so \(x^2 = 6\) and \(x = \pm\sqrt{6}\). 5. The greatest possible width is \(2\sqrt{6}\,\text{m} \approx 4.90\,\text{m}\).

Answer

a) \(12\,\text{m}\) b) Yes. The tunnel is \(5.016\,\text{m}\) high at the truck's outer edges, which exceeds \(3.80\,\text{m}\). c) \(2\sqrt{6}\,\text{m} \approx 4.90\,\text{m}\)
Quadratic models and interpretation 70
The path of a basketball during a free throw is modeled by \(h(x) = -\frac{4}{75}x^2 + \frac{16}{15}x + 6\), where \(x\) is the horizontal distance from the release point and \(h(x)\) is the ball's height, both in feet. a) Interpret the constant term \(6\) in context. b) Find the ball's maximum height. c) A basketball hoop is \(10\,\text{ft}\) high. At what horizontal distance must the hoop be located for the ball to reach it on the descending part of its path?

Hints

- Evaluate the function at \(x = 0\) to interpret the constant term. - Use the vertex formula to find the maximum. - Setting the function equal to \(10\) gives two distances; which one is on the descending side of the vertex?

Solution

1. Since \(h(0) = 6\), the ball is released from a height of \(6\,\text{ft}\). 2. The vertex occurs at \(x = -\frac{\frac{16}{15}}{2 \cdot \left(-\frac{4}{75}\right)} = 10\). Evaluate the height: \(h(10) = -\frac{4}{75} \cdot 10^2 + \frac{16}{15} \cdot 10 + 6 = \frac{34}{3}\). The maximum height is \(\frac{34}{3}\,\text{ft} \approx 11.33\,\text{ft}\). 3. Set the height equal to the hoop height: \(-\frac{4}{75}x^2 + \frac{16}{15}x + 6 = 10\). 4. Multiplying by \(75\) and simplifying gives \(x^2 - 20x + 75 = 0\), which factors as \((x - 5)(x - 15) = 0\). The ball is at hoop height at \(x = 5\) on the way up and at \(x = 15\) on the way down. 5. Therefore, the hoop must be \(15\,\text{ft}\) horizontally from the release point.

Answer

a) The ball is released from a height of \(6\,\text{ft}\). b) \(\frac{34}{3}\,\text{ft} \approx 11.33\,\text{ft}\) c) \(15\,\text{ft}\)
Quadratic models and interpretation 71
A free-fall experiment is performed from heights \(h_1=45\,\text{m}\) and \(h_2=180\,\text{m}\). a) Find the fall times \(t_1\) and \(t_2\) in seconds. Use \(h=\frac{1}{2}gt^2\) with \(g=9.81\,\frac{\text{m}}{\text{s}^2}\), and round to the nearest hundredth. b) By what factor does the fall time change when the height is multiplied by \(4\)?

Hints

- Isolate \(t^2\) before taking the physically meaningful positive square root. - Keep the two calculations unrounded until the final requested hundredths. - For the factor comparison, compare the heights inside the square root rather than relying only on rounded times.

Solution

1. Solve the model for positive time: \(t=\sqrt{\frac{2h}{g}}\). 2. For \(h_1=45\,\text{m}\), \(t_1=\sqrt{\frac{2\cdot45}{9.81}}\,\text{s}\approx3.03\,\text{s}\). 3. For \(h_2=180\,\text{m}\), \(t_2=\sqrt{\frac{2\cdot180}{9.81}}\,\text{s}\approx6.06\,\text{s}\). 4. Exactly, \(\frac{t_2}{t_1}=\sqrt{\frac{180}{45}}=\sqrt{4}=2\). Multiplying the height by \(4\) doubles the fall time.

Answer

a) \(t_1\approx3.03\,\text{s}\); \(t_2\approx6.06\,\text{s}\) b) The fall time is multiplied by \(2\).
Quadratic models and interpretation 72
A theater has \(500\) seats. At a ticket price of \(\$40\), every performance sells out. The theater estimates that for each \(\$1\) increase in the ticket price, \(10\) fewer tickets will be sold. What price increases would produce exactly \(\$20{,}210\) in ticket revenue for one performance?

Hints

- Express the new price and the number of tickets sold using the same variable. - Revenue equals ticket price times tickets sold. - Factor the resulting quadratic equation. - Verify both possible price increases in the original revenue model.

Solution

1. Let \(x\) be the price increase in dollars. The new ticket price is \(40+x\), and the number of tickets sold is \(500-10x\). 2. Set revenue equal to the target: \((40+x)(500-10x)=20{,}210\). 3. Expand: \(20{,}000+100x-10x^2=20{,}210\). 4. Rearrange and divide by \(-10\): \(x^2-10x+21=0\). 5. Factor: \((x-3)(x-7)=0\), so \(x=3\) or \(x=7\). 6. Both values are meaningful: \(43\cdot470=20{,}210\) and \(47\cdot430=20{,}210\).

Answer

The ticket price could be increased by \(\$3\) or by \(\$7\).
Quadratic models and interpretation 73
An investment of \(\$2000\) earns interest for two years. The annual interest rate is \(p\%\) during the first year. During the second year, the rate increases by one percentage point to \((p+1)\%\). Interest is added to the account at the end of each year. After two years, the balance is \(\$2226\). Find the first-year interest rate \(p\).

Hints

- Write a growth factor for each year. - Remember that the second year begins with the first year's ending balance. - A one-percentage-point increase changes \(p\%\) to \((p+1)\%\). - Check whether each algebraic solution is meaningful as an interest rate.

Solution

1. The two annual growth factors are \(1+\frac{p}{100}\) and \(1+\frac{p+1}{100}\). 2. Model the final balance: \(2000\left(1+\frac{p}{100}\right)\left(1+\frac{p+1}{100}\right)=2226\). 3. Rewrite the factors and simplify: \(\frac{(p+100)(p+101)}{5}=2226\), so \((p+100)(p+101)=11{,}130\). 4. Expand and rearrange: \(p^2+201p-1030=0\). 5. Factor: \((p-5)(p+206)=0\), so \(p=5\) or \(p=-206\). 6. The value \(p=-206\) would represent a loss greater than \(100\%\) in the first year, which is not meaningful for this investment model. Therefore, \(p=5\).

Answer

\(5\%\)
Quadratic models and interpretation 74
The number of diagonals \(d\) in a convex polygon with \(n\) vertices is \(d=\frac{n(n-3)}{2}\). A convex polygon has exactly \(12\) more diagonals than vertices. Let \(n\) be the number of vertices. Use the diagonal formula to write the quadratic equation implied by the condition, solve it algebraically, and explain why only one root is a valid polygon vertex count.

Hints

- Translate the comparison between diagonals and vertices into an equation using the supplied formula. - Rearrange the resulting relation into quadratic standard form. - After solving, apply the geometric restriction on a polygon's number of vertices.

Solution

1. The condition “\(12\) more diagonals than vertices” gives \(\frac{n(n-3)}{2}=n+12\). 2. Multiply by \(2\) and rearrange: \(n^2-5n-24=0\). 3. Factor: \((n-8)(n+3)=0\), so \(n=8\) or \(n=-3\). 4. A polygon must have at least \(3\) vertices, so only \(n=8\) is valid.

Answer

The quadratic equation is \(n^2-5n-24=0\). Its roots are \(8\) and \(-3\), and only \(8\) is a valid polygon vertex count.
Quadratic models and interpretation 75
The number of diagonals \(d\) in a convex polygon with \(n\) vertices is \(d=\frac{n(n-3)}{2}\). Two different convex polygons have \(14\) diagonals altogether, and one polygon has exactly one more vertex than the other. Let \(n\) be the number of vertices of the smaller polygon. Form one quadratic equation for \(n\), solve it algebraically, and state the number of vertices of each polygon.

Hints

- Express the two vertex counts using one variable. - Apply the diagonal formula separately to each polygon before combining their counts. - Solve the resulting quadratic and check the geometric restriction on the smaller polygon.

Solution

1. The larger polygon has \(n+1\) vertices. 2. The total-diagonal condition is \(\frac{n(n-3)}{2}+\frac{(n+1)(n-2)}{2}=14\). 3. Simplify: \(2n^2-4n-2=28\), so \(n^2-2n-15=0\). 4. Factor: \((n-5)(n+3)=0\), giving \(n=5\) or \(n=-3\). 5. The smaller polygon must have at least \(3\) vertices, so \(n=5\). The polygons therefore have \(5\) and \(6\) vertices.

Answer

The quadratic equation is \(n^2-2n-15=0\). The valid solution is \(n=5\), so the polygons have \(5\) and \(6\) vertices.
Quadratic models and interpretation 76
The number of diagonals \(d\) in a convex polygon with \(n\) vertices is \(d=\frac{n(n-3)}{2}\). When the number of vertices is doubled, the number of diagonals increases by \(18\). Write expressions for the original and doubled-vertex diagonal counts, derive a quadratic equation for \(n\), solve it algebraically, and state the original number of vertices.

Hints

- Write the diagonal formula once with \(n\) and once with \(2n\). - Represent the stated increase by subtracting the original count from the new count. - Simplify to a quadratic before solving and checking the valid domain for \(n\).

Solution

1. The original diagonal count is \(D(n)=\frac{n(n-3)}{2}\). 2. With \(2n\) vertices, the count is \(D(2n)=\frac{2n(2n-3)}{2}=n(2n-3)\). 3. The increase condition gives \(n(2n-3)-\frac{n(n-3)}{2}=18\). 4. Multiply by \(2\) and simplify: \(4n^2-6n-n^2+3n=36\), so \(n^2-n-12=0\). 5. Factor: \((n-4)(n+3)=0\), giving \(n=4\) or \(n=-3\). 6. Only \(n=4\) is a valid polygon vertex count.

Answer

The quadratic equation is \(n^2-n-12=0\), and the original polygon had \(4\) vertices.
Quadratic models and interpretation 77
A rectangular park measures \(120\,\text{ft}\times80\,\text{ft}\). A walking path of uniform width \(x\) will be built along the inside edge of the park. The lawn remaining in the center must have exactly \(62.5\%\) of the park's original area. a) Write a quadratic equation for the remaining lawn area and state the physical domain for \(x\). b) Solve the quadratic equation and determine the path width.

Hints

- First determine the lawn area represented by \(62.5\%\) of the original park. - An inside path reduces each lawn dimension on two sides. - Decide the largest possible path width before solving the equation. - Use that domain to evaluate the algebraic roots.

Solution

1. The original area is \(120\cdot80=9600\,\text{ft}^2\), so the target lawn area is \(0.625\cdot9600=6000\,\text{ft}^2\). 2. The lawn dimensions are \(120-2x\) and \(80-2x\), so \((120-2x)(80-2x)=6000\). 3. Expanding and simplifying gives \(x^2-100x+900=0\). 4. The path must satisfy \(0<x<40\), because the smaller lawn dimension must remain positive. 5. Factoring gives \((x-10)(x-90)=0\), so \(x=10\) or \(x=90\). 6. Only \(x=10\) lies in the physical domain. The path width is \(10\,\text{ft}\).

Answer

a) \((120-2x)(80-2x)=6000\), equivalently \(x^2-100x+900=0\), with \(0<x<40\) b) \(10\,\text{ft}\)
Quadratic models and interpretation 78
A rectangular poster has a uniform border of width \(x\) around the printed design. The border's area is \(144\,\text{in}^2\). The sketch is not drawn to scale. a) Find the border width \(x\). b) Wei Jun says, “If the width were cut in half, the border area would also be cut exactly in half.” Is this true? Justify your answer.
Figure for problem 525246

Hints

- Subtract the border area from the full poster area to find the printed region's area. - How does a uniform border change both dimensions of the inner rectangle? - Reject a calculated width that would leave no printed region. - Compare the actual new border area with half of the original area.

Solution

1. The poster area is \(24\cdot16=384\,\text{in}^2\), so the printed region has area \(384-144=240\,\text{in}^2\). 2. The printed region has dimensions \(24-2x\) and \(16-2x\). Thus \((24-2x)(16-2x)=240\). 3. Expanding gives \(4x^2-80x+144=0\), or \((x-2)(x-18)=0\). 4. Only \(0<x<8\) is possible for a border, so \(x=2\,\text{in}\). 5. Half the width is \(1\,\text{in}\). The new interior area is \(22\cdot14=308\,\text{in}^2\), leaving border area \(384-308=76\,\text{in}^2\). 6. Since half the original border area would be \(72\,\text{in}^2\), the claim is false.

Answer

a) \(x=2\,\text{in}\) b) No. A \(1\,\text{in}\) border has area \(76\,\text{in}^2\), not \(72\,\text{in}^2\).
Quadratic models and interpretation 79
A square sheet of metal will be made into an open-top box. A \(2\,\text{in}\) square is cut from each corner, and the sides are folded up. The box has a volume of \(72\,\text{in}^3\). Find the side length of the original sheet.

Hints

- Determine the base dimensions after the corner squares are removed. - The cutout side length becomes the box height. - Use the volume formula for a rectangular prism. - Check which algebraic solution can represent the original sheet.

Solution

1. Let \(a\) be the original side length in inches. 2. Cutting \(2\)-inch squares from both ends of each side leaves a square base with side length \(a-4\). The box height is \(2\,\text{in}\). 3. Use the volume: \(2(a-4)^2=72\). 4. Divide by \(2\): \((a-4)^2=36\). 5. Therefore, \(a-4=6\) or \(a-4=-6\), giving \(a=10\) or \(a=-2\). 6. A side length must be positive and greater than \(4\), so \(a=10\,\text{in}\).

Answer

\(10\,\text{in}\)
Quadratic models and interpretation 80
A rectangular flower bed is \(5\,\text{ft}\) longer than it is wide. A walkway \(2\,\text{ft}\) wide is built around the bed. The flower bed and walkway together cover \(150\,\text{ft}^2\). a) Let \(x\) be the flower bed width. Write a quadratic equation that models the total outside area. b) Solve the quadratic equation and determine the original dimensions of the flower bed.

Hints

- Express the bed length in terms of its width. - A surrounding walkway adds its width on both sides of each dimension. - Use the outside area to form one equation in \(x\). - Check which root can represent a physical width.

Solution

1. Let \(x\) be the flower bed's width in feet. Its length is \(x+5\). 2. The walkway adds \(4\,\text{ft}\) to each overall dimension, so the outside dimensions are \(x+4\) and \(x+9\). 3. The area condition is \((x+4)(x+9)=150\), so \(x^2+13x-114=0\). 4. Factor: \((x-6)(x+19)=0\), so \(x=6\) or \(x=-19\). 5. A width must be positive, so the bed is \(6\,\text{ft}\) wide and \(11\,\text{ft}\) long.

Answer

a) \((x+4)(x+9)=150\), equivalently \(x^2+13x-114=0\) b) \(6\,\text{ft}\) wide and \(11\,\text{ft}\) long
Quadratic models and interpretation 81
A rectangle has a perimeter of \(26\,\text{in}\) and an area of \(40\,\text{in}^2\). Use a quadratic equation to find the side lengths.

Hints

- Use the perimeter to find the sum of the two side lengths. - Express one side length in terms of the other. - Use the area to form a quadratic equation. - Factor the resulting quadratic equation.

Solution

1. Let one side length be \(x\) inches. The perimeter gives a total side-length sum of \(13\), so the other side is \(13-x\). 2. Use the area: \(x(13-x)=40\). 3. Rearrange: \(x^2-13x+40=0\). 4. Factor: \((x-5)(x-8)=0\), so \(x=5\) or \(x=8\). 5. The corresponding other side is \(8\) or \(5\), so the rectangle's side lengths are \(5\,\text{in}\) and \(8\,\text{in}\).

Answer

\(5\,\text{in}\) and \(8\,\text{in}\)
Quadratic models and interpretation 82
A gardener has \(400\) flower bulbs to plant in an array with the same number of bulbs in each row. Using \(4\) fewer rows and \(5\) more bulbs in each row would create an array containing \(360\) bulbs. a) Let \(r\) be the original number of rows and \(b\) the original number of bulbs per row. Write two equations for the two arrangements. b) Eliminate \(b\) and obtain a quadratic equation in \(r\). c) Solve the quadratic equation and determine the original number of rows.

Hints

- Write one product equation for each array arrangement. - Expanding the revised equation lets you use the original product without immediately dividing by a variable. - After eliminating one variable, check that the remaining equation is quadratic. - Reject any root that cannot represent a number of rows.

Solution

1. The original arrangement gives \(rb=400\). The revised arrangement gives \((r-4)(b+5)=360\). 2. Expand the revised equation: \(rb+5r-4b-20=360\). 3. Substitute \(rb=400\): \(5r-4b=-20\), so \(b=\frac{5r+20}{4}\). 4. Substitute into \(rb=400\): \(r\left(\frac{5r+20}{4}\right)=400\), which simplifies to \(r^2+4r-320=0\). 5. Factor: \((r-16)(r+20)=0\), so \(r=16\) or \(r=-20\). 6. A row count must be positive, so the original plan used \(16\) rows.

Answer

a) \(rb=400\) and \((r-4)(b+5)=360\) b) \(r^2+4r-320=0\) c) \(16\) rows
Quadratic models and interpretation 83
A rectangular vegetable garden is twice as long as it is wide. A gravel path \(2\,\text{ft}\) wide is built around the garden. The garden and path together cover \(160\,\text{ft}^2\). a) Let \(x\) be the garden width. Write a quadratic equation that models the total outside area. b) Solve the quadratic equation and determine the original garden dimensions. c) Explain why the other algebraic root is not meaningful.

Hints

- Express the garden length using the width variable. - A surrounding path adds its width on both sides of each dimension. - Use the outside area to create one quadratic equation. - Interpret both roots in terms of the physical meaning of \(x\).

Solution

1. Let \(x\) be the garden's width in feet. Its length is \(2x\). 2. The path adds \(4\,\text{ft}\) to each overall dimension, so the outside dimensions are \(x+4\) and \(2x+4\). 3. The area condition is \((x+4)(2x+4)=160\), which simplifies to \(x^2+6x-72=0\). 4. Factor: \((x-6)(x+12)=0\), so \(x=6\) or \(x=-12\). 5. Width must be positive, so the garden is \(6\,\text{ft}\) wide and \(12\,\text{ft}\) long.

Answer

a) \((x+4)(2x+4)=160\), equivalently \(x^2+6x-72=0\) b) \(6\,\text{ft}\) wide and \(12\,\text{ft}\) long c) The root \(x=-12\) is rejected because a garden width cannot be negative.
Quadratic models and interpretation 84
The daily production cost \(K(x)=0.5x^2-12x+120\) is measured in hundreds of dollars, where \(x\) is the number of production units and \(0\le x\le20\). a) At what production level is the daily cost minimized? What is the minimum cost in dollars? b) Find the increase in cost when production rises from \(14\) to \(15\) units. c) Compare that increase with the increase from \(18\) to \(19\) units. What does the comparison show about costs to the right of the minimum?

Hints

- Use the vertex of the quadratic to find the minimum. - Convert each function value from hundreds of dollars to dollars. - Subtract the earlier cost from the later cost. - Compare the two first differences.

Solution

1. The parabola opens upward. Its vertex occurs at \(x=-\frac{b}{2a}=\frac{12}{1}=12\). 2. Evaluate \(K(12)=0.5\cdot 12^2-12\cdot 12+120=48\). Because the units are hundreds of dollars, the minimum cost is \(\$4800\). 3. Evaluate \(K(15)=52.5\) and \(K(14)=50\). The increase is \(2.5\) hundreds of dollars, or \(\$250\). 4. Evaluate \(K(19)=72.5\) and \(K(18)=66\). The increase is \(6.5\) hundreds of dollars, or \(\$650\). 5. The one-unit cost increase is larger farther to the right of the minimum. The cost graph becomes steeper as production increases in that region.

Answer

a) Minimum at \(x=12\); minimum cost \(\$4800\) b) \(\$250\) c) The increase from \(18\) to \(19\) is \(\$650\). Costs rise at an increasing rate to the right of the minimum.
Quadratic models and interpretation 85
A car's braking distance \(s\), in feet, is modeled by \(s(v)=0.02v^2+0.5v\), where \(v\) is speed in miles per hour. a) Find the braking distance at \(30\) mph and at \(60\) mph. b) How many feet does the braking distance increase when speed rises from \(50\) mph to \(55\) mph? c) At what physically meaningful speed is the braking distance exactly \(75\) feet?

Hints

- Substitute each speed directly into the model. - Find an increase by subtracting the earlier output from the later output. - Set the model equal to the given distance and solve the quadratic equation. - Reject solutions that are not meaningful speeds.

Solution

1. Evaluate \(s(30)=0.02\cdot 30^2+0.5\cdot 30=18+15=33\) feet. 2. Evaluate \(s(60)=0.02\cdot 60^2+0.5\cdot 60=72+30=102\) feet. 3. Compute \(s(50)=75\) and \(s(55)=88\), so the increase is \(13\) feet. 4. Set \(s(v)=75\): \(0.02v^2+0.5v-75=0\). Multiplying by \(50\) gives \(v^2+25v-3750=0\). 5. The quadratic formula gives \(v=\frac{-25\pm125}{2}\), so \(v=50\) or \(v=-75\). A negative speed is not meaningful in this context, so the answer is \(50\) mph.

Answer

a) \(33\) ft at \(30\) mph; \(102\) ft at \(60\) mph b) \(13\) ft c) \(50\) mph
Quadratic models and interpretation 86
A fountain stream is modeled by the family of parabolas \(f_k(x)=0.8x-\frac{k}{100}x^2\), where \(x\) is the horizontal distance from the nozzle and \(f_k(x)\) is the height above the ground, both in feet. The adjustable parameter satisfies \(k>0\). The nozzle is at the center of a circular pool. a) The pool has a radius of \(16\,\text{ft}\). Find the smallest possible value of \(k\) that keeps the water from traveling past the edge of the pool. b) For the value of \(k\) from part a, find the maximum height of the stream.

Hints

- Find the positive zero of the quadratic in terms of \(k\). - Translate “does not travel past the edge” into an inequality. - The vertex lies halfway between the two zeros of a parabola.

Solution

1. The water returns to ground level at the positive zero of \(f_k\). Solve \(0.8x-\frac{k}{100}x^2=0\): \(x\left(0.8-\frac{k}{100}x\right)=0\). The positive zero is \(x=\frac{80}{k}\). 2. The water must land no farther than \(16\,\text{ft}\) from the nozzle, so \(\frac{80}{k}\le16\). Because \(k>0\), this gives \(k\ge5\). The smallest possible value is \(k=5\). 3. For \(k=5\), the zeros are \(0\) and \(16\), so the vertex lies halfway between them at \(x=8\). 4. Evaluate the function at the vertex: \(f_5(8)=0.8\cdot 8-0.05\cdot 8^2=6.4-3.2=3.2\).

Answer

a) \(k=5\) b) \(3.2\,\text{ft}\)
Quadratic models and interpretation 87
The path of a toy projectile is modeled by \(h_c(x)=cx-0.01x^2\), where \(x\) and \(h_c(x)\) are measured in feet and \(c>0\). a) The projectile must return to the ground after traveling exactly \(50\,\text{ft}\) horizontally. Find \(c\). b) A \(7\,\text{ft}\)-tall obstacle is \(25\,\text{ft}\) from the launch point. Does the projectile clear the obstacle for the value of \(c\) from part a? Support your answer with a calculation.

Hints

- Use the given horizontal range to write an equation involving \(c\). - Substitute the obstacle's horizontal position into the function. - Compare the resulting height with the obstacle's height.

Solution

1. Returning to the ground at \(x=50\) means \(h_c(50)=0\). Thus, \(50c-0.01\cdot 50^2=0\). 2. Simplify: \(50c-25=0\), so \(c=0.5\). 3. Evaluate the height at the obstacle: \(h_{0.5}(25)=0.5\cdot 25-0.01\cdot 25^2=12.5-6.25=6.25\). 4. Since \(6.25<7\), the projectile does not clear the obstacle.

Answer

a) \(c=0.5\) b) No. Its height at \(x=25\) is \(6.25\,\text{ft}\), which is less than \(7\,\text{ft}\).
Quadratic models and interpretation 88

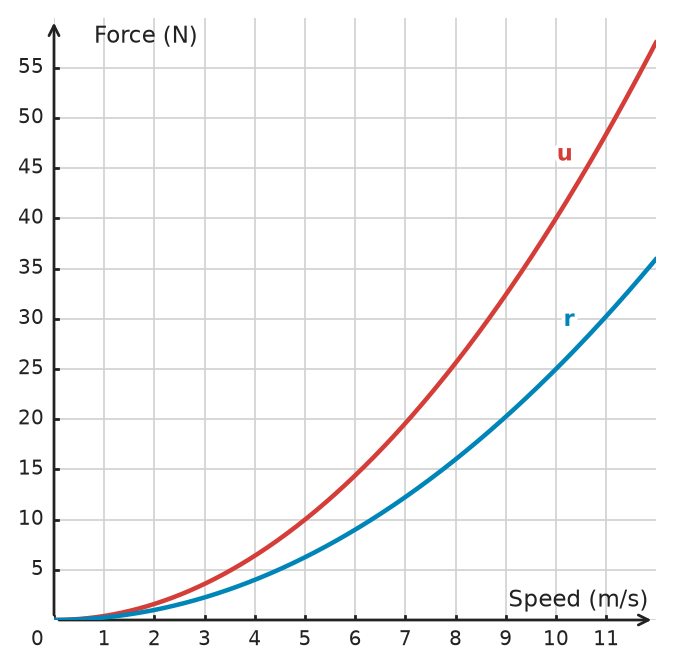

A cyclist's air resistance \(F\), in newtons, is modeled by \(F = av^2\), where \(v\) is speed in meters per second. The graph shows two riding positions: \(u\) for an upright position and \(r\) for an aerodynamic racing position. a) Use the graph to find the value of \(a\) for each riding position. b) At \(10\,\text{m/s}\), by what percent is the air resistance in the upright position greater than in the racing position?
Figure for problem 532275

Hints

- Choose an exact point on each graph. - Substitute the point's speed and force into \(F = av^2\). - For “percent greater,” use the racing-position force as the reference value.

Solution

1. For the upright position, the graph includes the point \((10, 40)\). Substitute into \(F = av^2\): \(40 = a \cdot 10^2\), so \(a = 0.4\). 2. For the racing position, the graph includes the point \((10, 25)\). Then \(25 = a \cdot 10^2\), so \(a = 0.25\). 3. At \(10\,\text{m/s}\), the difference is \(40 - 25 = 15\,\text{N}\). Relative to the racing-position value, the percent increase is \(\frac{15}{25} \cdot 100\% = 60\%\).

Answer

a) Upright position: \(a = 0.4\) Racing position: \(a = 0.25\) b) \(60\%\) greater
Quadratic models and interpretation 89

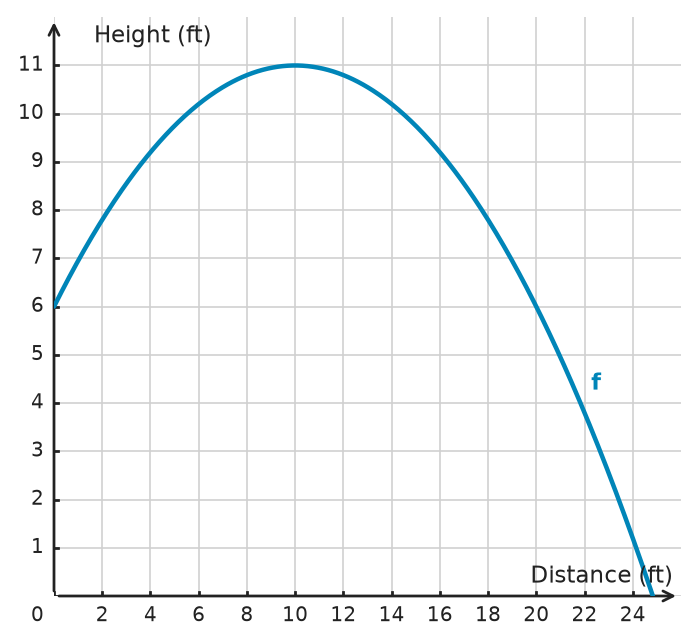

The graph shows the path of a basketball, where horizontal distance and height are measured in feet. a) Determine which function matches the graph. Justify your choice using key points or features. (1) \(f(x) = -0.05x^2 + x + 6\) (2) \(g(x) = -0.05x^2 + 11\) (3) \(h(x) = 0.05x^2 - x + 6\) b) A basketball hoop is \(10\,\text{ft}\) high. At what horizontal distance does the ball reach hoop height on the descending part of its path? Round to the nearest hundredth of a foot. c) A second shot is modeled by \(k(x) = -0.04x^2 + 0.8x + 6\). Does the second ball travel higher and farther than the first? Compare the maximum heights and positive ground-level intercepts.
Figure for problem 532281

Hints

- Compare the graph's y-intercept, opening direction, and vertex with each option. - Set the correct function equal to the hoop height and choose the solution after the vertex. - For each shot, compare the vertex height and the positive zero.

Solution

1. The graph starts at \((0, 6)\), opens downward, and has vertex \((10, 11)\). Function (1) has \(f(0) = 6\), opens downward, and has vertex at \(x = -\frac{1}{2 \cdot (-0.05)} = 10\), with \(f(10) = 11\). Therefore, function (1) matches the graph. 2. Set the first function equal to the hoop height: \(-0.05x^2 + x + 6 = 10\). This is equivalent to \(x^2 - 20x + 80 = 0\), so \(x = 10 \pm 2\sqrt{5}\). The descending solution is \(x = 10 + 2\sqrt{5} \approx 14.47\,\text{ft}\). 3. The first ball has maximum height \(11\,\text{ft}\). Its positive ground-level intercept solves \(-0.05x^2 + x + 6 = 0\), giving \(x = 10 + 2\sqrt{55} \approx 24.83\,\text{ft}\). 4. For the second ball, the vertex occurs at \(x = -\frac{0.8}{2 \cdot (-0.04)} = 10\), and \(k(10) = 10\,\text{ft}\). Its positive ground-level intercept solves \(-0.04x^2 + 0.8x + 6 = 0\), giving \(x = 10 + 5\sqrt{10} \approx 25.81\,\text{ft}\). 5. The second ball does not travel higher, but it travels farther.

Answer

a) Function (1), \(f(x) = -0.05x^2 + x + 6\) b) \(10 + 2\sqrt{5}\,\text{ft} \approx 14.47\,\text{ft}\) c) The second ball travels lower but farther. Its maximum height is \(10\,\text{ft}\), compared with \(11\,\text{ft}\) for the first; its range is about \(25.81\,\text{ft}\), compared with about \(24.83\,\text{ft}\).
Quadratic models and interpretation 90

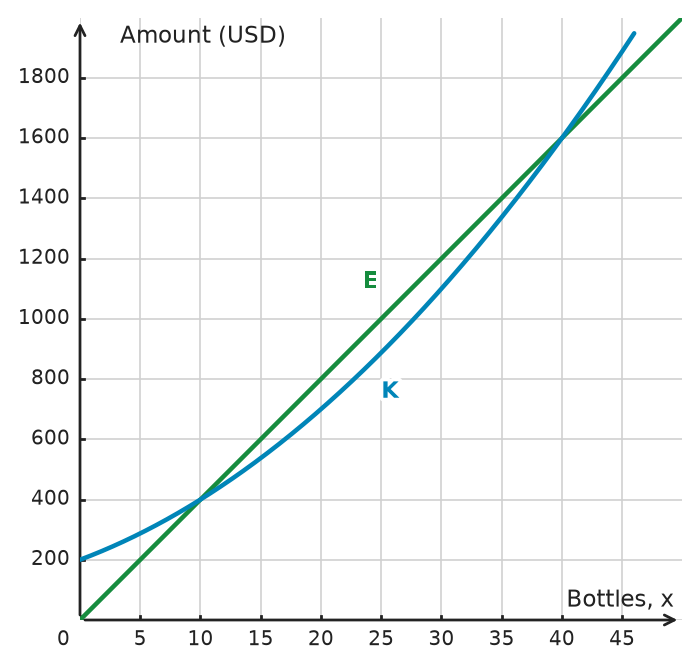

A startup makes reusable water bottles. Its revenue from selling \(x\) bottles is modeled by the linear function \(E\), which is shown in the graph. Its weekly total cost, in dollars, is \(K(x)=0.5x^2+15x+200\). a) Determine the equation of the revenue function \(E(x)\) from the graph. b) Find the two production levels at which the startup breaks even. c) Find the profit when exactly \(30\) bottles are produced and sold.
Figure for problem 532285

Hints

- Use two points on the revenue line to find its slope. - Break-even occurs where revenue equals cost. - Factor the resulting quadratic equation. - Profit equals revenue minus cost.

Solution

1. The revenue graph is a line through \((0, 0)\) and \((10, 400)\). Its slope is \(\frac{400-0}{10-0}=40\), so \(E(x)=40x\). 2. At a break-even point, revenue equals cost: \(40x=0.5x^2+15x+200\). 3. Rearrange and multiply by \(2\): \(x^2-50x+400=0\). 4. Factor: \((x-10)(x-40)=0\), so the break-even production levels are \(x=10\) and \(x=40\). 5. At \(x=30\), the revenue is \(E(30)=40\cdot30=1200\), or \(\$1200\). 6. The cost is \(K(30)=0.5\cdot30^2+15\cdot30+200=1100\), or \(\$1100\). 7. The profit is \(\$1200-\$1100=\$100\).

Answer

a) \(E(x)=40x\) b) \(10\) bottles and \(40\) bottles c) \(\$100\)
Quadratic models and interpretation 91
The lateral force \(F\), in kilonewtons, on a vehicle turning along a curve increases quadratically with speed \(v\), in meters per second. The relationship is modeled by \(F=k\left(\frac{v}{10}\right)^2\). The graph shows the forces for curves \(f\) and \(g\). a) Determine \(k\) for each curve. b) At \(v=25\,\text{m/s}\), by what percent is the force on curve \(f\) greater than the force on curve \(g\)?
Figure for problem 533443

Hints

- Substitute a clearly readable point from each curve into the quadratic model. - Keep the scale factor \(\frac{v}{10}\) together before squaring. - For the percent comparison, identify which curve supplies the reference value.

Solution

1. Curve \(f\) contains the point \((20,8)\). Substituting gives \(8=k\left(\frac{20}{10}\right)^2=4k\), so \(k_f=2\). 2. Curve \(g\) contains the point \((20,4)\). Substituting gives \(4=4k\), so \(k_g=1\). 3. At \(v=25\), \(F_f=2(2.5)^2=12.5\,\text{kN}\), and \(F_g=(2.5)^2=6.25\,\text{kN}\). 4. The percent increase from \(g\) to \(f\) is \(\frac{12.5-6.25}{6.25}\cdot100\%=100\%\).

Answer

a) Curve \(f\): \(k=2\); curve \(g\): \(k=1\) b) The force on curve \(f\) is \(100\%\) greater.
Quadratic models and interpretation 92

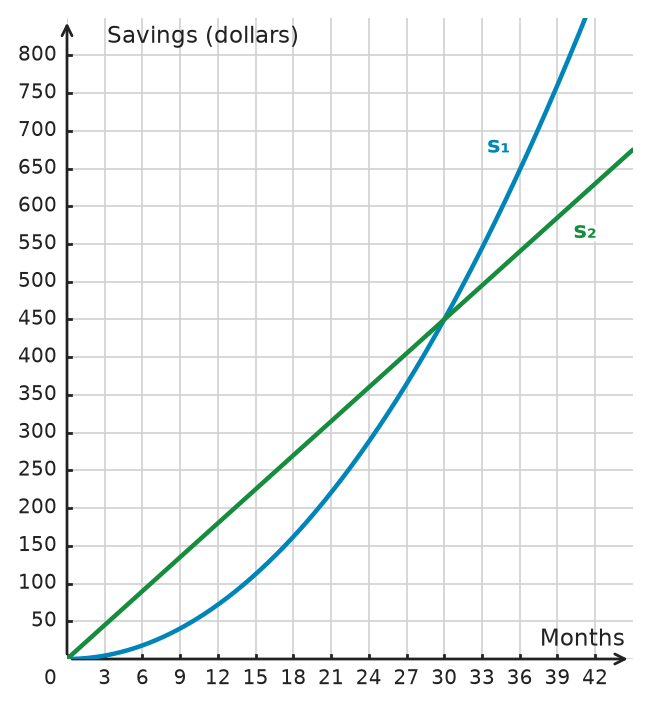

Two savings plans for a new bicycle are compared. Plan \(s_1\) is modeled by \(y=0.5x^2\), where \(x\) is time in months and \(y\) is the amount saved in dollars. The graph shows Plan \(s_2\). a) Use the graph to find the linear function for Plan \(s_2\). b) After the start, when do the two plans next have exactly the same balance? c) After exactly \(3\) years, a person wants to buy an e-bike that costs \(\$600\). Does Plan \(s_1\) provide enough money? Find the amount left over or still needed.
Figure for problem 533461

Hints

- Use two exact points on the linear graph to find its slope. - At an intersection, the two plans have equal balances. - Convert \(3\) years to months before evaluating \(s_1\).

Solution

1. The linear graph for \(s_2\) passes through \((0, 0)\) and \((30, 450)\). Its slope is \(\frac{450}{30} = 15\), so \(s_2(x) = 15x\). 2. Set the balances equal: \(0.5x^2 = 15x\). Factoring gives \(x(0.5x - 15) = 0\), so \(x = 0\) or \(x = 30\). After the start, the plans next have the same balance at \(30\) months. 3. Three years is \(36\) months. Plan \(s_1\) gives \(s_1(36) = 0.5 \cdot 36^2 = 648\). Since \(\$648 > \$600\), the purchase is affordable, with \(\$48\) left over.

Answer

a) \(s_2(x) = 15x\) b) \(30\) months c) Yes. The balance is \(\$648\), so \(\$48\) remains.
Quadratic models and interpretation 93

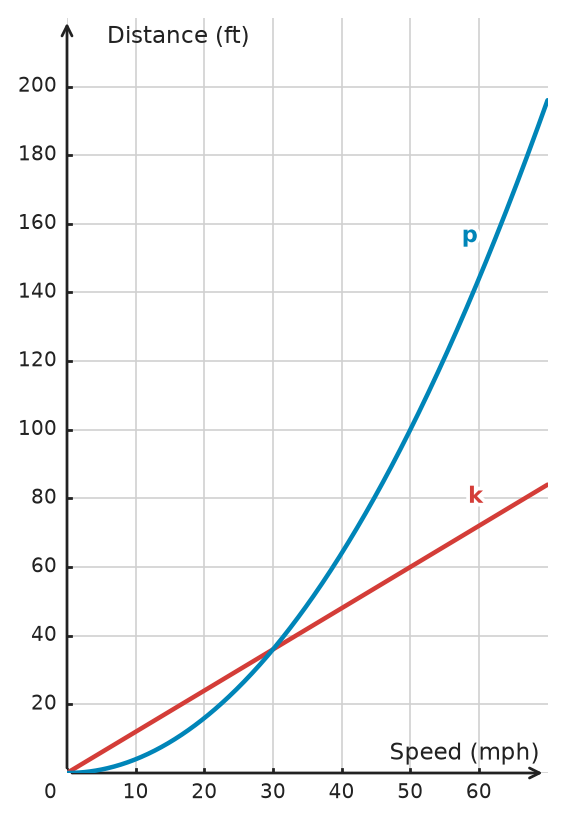

A car's stopping distance is the sum of its reaction distance and braking distance. The graph shows both distances as functions of speed in miles per hour. a) Which graph, \(k\) or \(p\), represents braking distance if doubling speed quadruples that distance? Explain briefly. b) Use the graph to find the linear reaction-distance function \(k(v)\). c) Find the total stopping distance at \(50\,\text{mph}\).
Figure for problem 533462

Hints

- Which graph has an increasing rate of change? - Use an exact point on the line to find its slope. - At the given speed, read both component distances before adding them.

Solution

1. Braking distance grows quadratically, so it is represented by the curved graph \(p\). 2. The linear graph \(k\) passes through \((0, 0)\) and \((50, 60)\). Its slope is \(\frac{60}{50}=1.2\), so \(k(v)=1.2v\). 3. At \(50\,\text{mph}\), the reaction distance is \(k(50)=1.2\cdot50=60\,\text{ft}\). 4. From graph \(p\), the braking distance at \(50\,\text{mph}\) is \(100\,\text{ft}\). 5. The total stopping distance is \(60+100=160\,\text{ft}\).

Answer

a) Graph \(p\), because it has quadratic growth b) \(k(v)=1.2v\) c) \(160\,\text{ft}\)
Quadratic models and interpretation 94

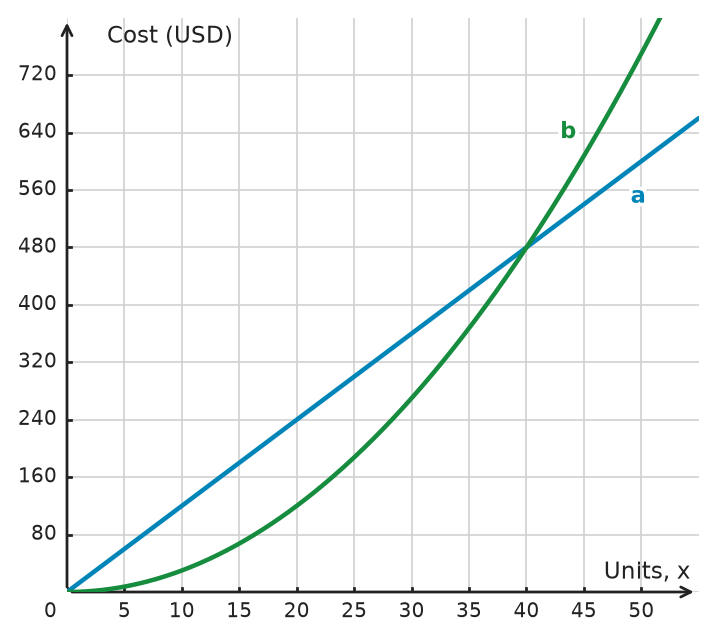

Two production machines have different daily operating costs based on the number of units \(x\) produced. In the graph, the line labeled \(a\) represents machine A, and the curve labeled \(b\) represents machine B. Machine B's cost is given by \(B(x)=0.3x^2\), in dollars. a) Determine the cost function \(A(x)\) for machine A from the graph. b) For what production level \(x>0\) are the daily costs equal? Estimate the value from the graph and verify it algebraically. c) If production increases to \(50\) units per day, how much would the company save each day by choosing the less expensive machine?
Figure for problem 533463

Hints

- Use the origin and another clear point on line \(a\) to find its slope. - Equal costs occur where the two graphs intersect. - Verify the positive intersection by setting the functions equal. - Substitute \(50\) into both functions and compare.

Solution

1. The graph for machine A is a line through the origin and \((40, 480)\). Its slope is \(\frac{480}{40}=12\), so \(A(x)=12x\). 2. Set the costs equal: \(0.3x^2=12x\). 3. Since \(x>0\), divide by \(x\): \(0.3x=12\), so \(x=40\). 4. At \(x=40\), both machines cost \(\$480\). 5. At \(x=50\), machine A costs \(A(50)=12\cdot50=600\), or \(\$600\). 6. Machine B costs \(B(50)=0.3\cdot50^2=750\), or \(\$750\). 7. Machine A is less expensive by \(\$150\) per day.

Answer

a) \(A(x)=12x\) b) The costs are equal at \(x=40\) units, when each costs \(\$480\). c) The company would save \(\$150\) per day by choosing machine A.
Quadratic models and interpretation 95

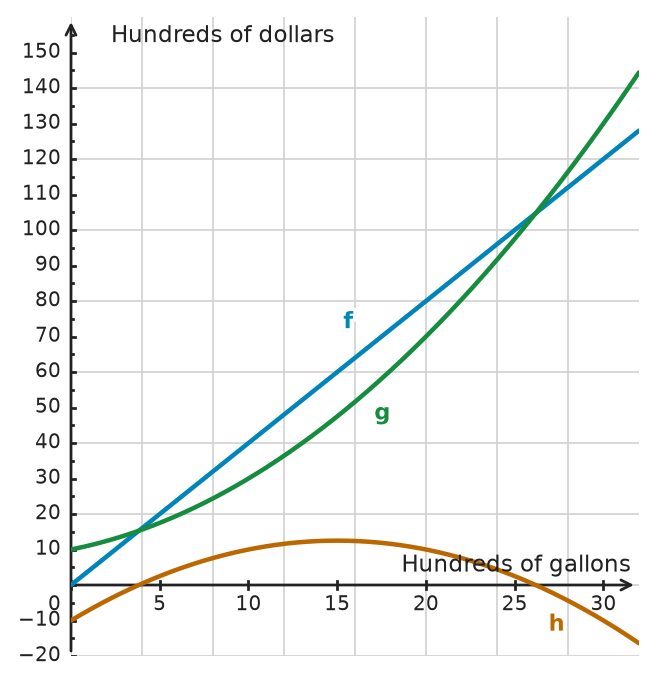

An orchard produces and sells apple juice. The graph shows three functions \(f\), \(g\), and \(h\), where \(x\) is measured in hundreds of gallons and function values are measured in hundreds of dollars. Revenue is \(R\), total cost is \(C\), and profit is \(P=R-C\). a) Match graphs \(f\), \(g\), and \(h\) with revenue, total cost, and profit. Explain your choices. b) Determine the fixed production cost. c) Estimate, to the nearest \(100\) gallons, the production range over which the orchard earns a profit. d) Determine the maximum possible profit and the production quantity where it occurs.
Figure for problem 533591

Hints

- Revenue is zero when nothing is sold; look for the graph that passes through the origin. - Fixed cost is read where the cost graph meets the y-axis. - Profit is positive where its graph lies above the x-axis. - The maximum profit is represented by the vertex of the profit parabola.

Solution

1. Graph \(f\) is revenue because it is a line through the origin. Graph \(g\) is total cost because it has a positive y-intercept representing fixed cost. Graph \(h\) is profit because it is negative when costs exceed revenue and positive between its two x-intercepts. 2. Graph \(g\) has y-intercept \(10\). Since the vertical scale is hundreds of dollars, the fixed cost is \(\$1000\). 3. Graph \(h\) crosses the x-axis at about \(x=3\) and \(x=17\). Profit is positive between those intercepts, corresponding to about \(300\) to \(1700\) gallons. 4. The vertex of graph \(h\) is \((10,10)\). Therefore, the maximum profit is \(\$1000\) at a production quantity of \(1000\) gallons.

Answer

a) \(f\): revenue, \(g\): total cost, \(h\): profit b) \(\$1000\) c) About \(300\) to \(1700\) gallons d) A maximum profit of \(\$1000\) at \(1000\) gallons
Quadratic models and interpretation 96
A shot-put athlete releases the shot from a height of \(2.0\,\text{m}\). Its path is modeled by \(h(x) = -0.05x^2 + 0.6x + 2\), where \(x\) is horizontal distance from the release point and \(h(x)\) is height above the ground, both in meters. a) Find the vertex of the path. Interpret both coordinates in context. b) Find the horizontal distance at which the shot reaches the ground. Round to the nearest hundredth of a meter.

Hints

- Use the vertex formula to find the horizontal coordinate of the maximum. - Ground contact means the height is \(0\). - Keep only the root that represents a positive horizontal distance.

Solution

1. The vertex occurs at \(x = -\frac{0.6}{2 \cdot (-0.05)} = 6\). 2. Evaluate the height: \(h(6) = -0.05 \cdot 6^2 + 0.6 \cdot 6 + 2 = 3.8\). The vertex is \((6, 3.8)\). This means the shot reaches its maximum height of \(3.8\,\text{m}\) after traveling \(6\,\text{m}\) horizontally. 3. Set the height equal to \(0\): \(-0.05x^2 + 0.6x + 2 = 0\). Dividing by \(-0.05\) gives \(x^2 - 12x - 40 = 0\). 4. Using the quadratic formula, \(x = 6 \pm \sqrt{76}\). The context-valid solution is \(x = 6 + \sqrt{76} \approx 14.72\,\text{m}\).

Answer

a) \((6, 3.8)\). The shot reaches its maximum height of \(3.8\,\text{m}\) after \(6\,\text{m}\) of horizontal travel. b) \(6 + \sqrt{76}\,\text{m} \approx 14.72\,\text{m}\)
Quadratic models and interpretation 97
A park fits the model \(A(T)=-2(T-70)^2+900\) to attendance data collected only for temperatures from \(50^\circ\text{F}\) through \(90^\circ\text{F}\), where \(A(T)\) is the predicted number of visitors. A manager uses the model to predict attendance at \(20^\circ\text{F}\). Calculate the model's prediction and evaluate whether that prediction should be trusted.

Hints

- First evaluate the model exactly at the proposed input. - Compare the resulting output with what is possible for a visitor count. - Compare the proposed temperature with the interval on which the model was fitted.

Solution

1. Substitute \(T=20\): \(A(20)=-2(20-70)^2+900\). 2. This gives \(A(20)=-2(2500)+900=-4100\). 3. A prediction of \(-4100\) visitors is not physically meaningful. 4. Also, \(20^\circ\text{F}\) lies far outside the observed interval from \(50^\circ\text{F}\) to \(90^\circ\text{F}\). The model should not be trusted for that extrapolation.

Answer

The model gives \(A(20)=-4100\), which is not a meaningful attendance count. The prediction should not be trusted because \(20^\circ\text{F}\) is far outside the temperature range used to fit the model.
Quadratic models and interpretation 98
A company's profit model has break-even points at \(x=2\) and \(x=10\), where \(x\) is hundreds of units sold. The modeled profit at \(x=6\) is \(\$6400\). The production system can handle at most \(800\) units, so the feasible domain is \(0\le x\le8\). a) Build a quadratic profit model \(P(x)\) in factored form. b) Within the feasible domain, for what sales levels is the modeled profit positive? c) Find the modeled profit at full capacity and determine whether increasing sales from \(600\) to \(800\) units raises or lowers profit.

Hints

- Begin with a factored quadratic containing an unknown scale factor and the two break-even inputs. - Use the given profit at \(x=6\) to determine that factor. - Profit is positive only on the part of the between-roots interval that also lies inside the feasible domain. - Evaluate the model at the capacity endpoint before comparing it with the given profit at \(x=6\).

Solution

1. The break-even points give \(P(x)=a(x-2)(x-10)\). 2. Use \(P(6)=6400\): \(6400=a(4)(-4)=-16a\), so \(a=-400\). 3. Thus, \(P(x)=-400(x-2)(x-10)\). 4. The model is positive between its zeros, \(2<x<10\). Intersecting with the feasible domain \(0\le x\le8\) gives \(2<x\le8\), corresponding to more than \(200\) and at most \(800\) units. 5. At full capacity, \(P(8)=-400(6)(-2)=4800\), so the modeled profit is \(\$4800\). 6. Since \(P(6)=\$6400\), increasing sales from \(600\) to \(800\) units lowers the modeled profit by \(\$1600\).

Answer

a) \(P(x)=-400(x-2)(x-10)\) b) \(2<x\le8\), meaning more than \(200\) and at most \(800\) units c) \(P(8)=\$4800\); increasing sales from \(600\) to \(800\) units lowers the modeled profit by \(\$1600\).
Quadratic models and interpretation 99
The graph shows two quadratic models, \(f\) and \(g\), for the increase in tomato yield as fertilizer amount changes over the displayed range. a) Which model has the higher maximum yield increase, and at what fertilizer amount does each model reach its maximum? b) At \(4\) ounces of fertilizer, which model predicts the larger yield increase, and by how much? c) At what positive fertilizer amount do the models predict the same yield increase? Which model is higher after that point within the displayed range?
Figure for problem 555735

Hints

- Compare the vertices of the two curves first. - Use the grid to read both outputs at the specified fertilizer amount. - An equal prediction occurs where the two curves intersect. - After the positive intersection, compare which curve lies above the other.

Solution

1. From the graph, \(f\) has vertex \((6,18)\), while \(g\) has vertex \((8,16)\). Thus, \(f\) has the higher maximum: \(18\) pounds at \(6\) ounces; \(g\) reaches \(16\) pounds at \(8\) ounces. 2. At \(4\) ounces, the graph gives \(f(4)=16\) and \(g(4)=12\), so \(f\) is higher by \(4\) pounds. 3. Besides the origin, the curves intersect at \((8,16)\). Thus, the positive fertilizer amount at which the predictions are equal is \(8\) ounces. 4. For fertilizer amounts greater than \(8\) ounces through the displayed endpoint at \(12\) ounces, graph \(g\) lies above graph \(f\).

Answer

a) \(f\) has the higher maximum: \(18\) pounds at \(6\) ounces. Model \(g\) reaches \(16\) pounds at \(8\) ounces. b) At \(4\) ounces, \(f\) is higher by \(4\) pounds. c) The positive intersection is at \(8\) ounces. After that point, \(g\) is higher through the displayed range.
Quadratic models and interpretation 100
Software fits both a linear model and a quadratic model to the same noisy data set. Residual means observed value minus predicted value. The residuals are shown below. <table><tr><th>\(x\)</th><th>0</th><th>1</th><th>2</th><th>3</th><th>4</th></tr><tr><th>Linear-model residual</th><td>2</td><td>-1</td><td>-2</td><td>-1</td><td>2</td></tr><tr><th>Quadratic-model residual</th><td>0.5</td><td>-0.5</td><td>0</td><td>0.5</td><td>-0.5</td></tr></table> a) Compute the sum of squared residuals for each model. b) Describe the residual pattern for each model. c) Which model gives the better fit to these data? Justify your choice using both parts a) and b).

Hints

- Do not add signed residuals directly; positive and negative errors can cancel. - Square each residual before comparing the total error for the two models. - Beyond error size, inspect whether the signs follow a visible pattern across increasing \(x\). - A useful model should leave relatively small residuals without a strong systematic shape.

Solution

1. For the linear model, the sum of squared residuals is \(2^2+(-1)^2+(-2)^2+(-1)^2+2^2=14\). 2. For the quadratic model, the sum of squared residuals is \(0.5^2+(-0.5)^2+0^2+0.5^2+(-0.5)^2=1\). 3. The linear residuals are positive at both ends and negative through the middle, showing a curved systematic pattern rather than random scatter around zero. 4. The quadratic residuals are much smaller and alternate around zero without the same systematic curvature. 5. The quadratic model is the better fit because it has the much smaller sum of squared residuals and leaves no comparable systematic pattern.

Answer

a) Linear model: \(14\); quadratic model: \(1\) b) The linear residuals show a systematic positive-at-the-ends, negative-in-the-middle pattern. The quadratic residuals are small and lie on both sides of zero without that curved pattern. c) The quadratic model is better because its squared-residual total is much smaller and its residuals show less systematic structure.
Quadratic models and interpretation 101
The graph shows a quadratic model \(q\) for the height of a sprinkler stream and seven measured points \(A\) through \(G\). For a measured point, define residual as measured height minus the height predicted by \(q\) at the same horizontal distance. a) Which measured point has the largest absolute residual? b) Is that residual positive or negative? Estimate it to the nearest foot. c) Suppose that measurement is confirmed to be a sensor error and removed. Do the remaining six measurements support \(q\) as a reasonable model? Explain using the sizes and signs of their residuals.
Figure for problem 555739

Hints

- A residual is represented visually by the vertical difference between a measured point and the model at the same horizontal input. - Compare vertical gaps, not horizontal distances from the curve. - Use whether the point lies above or below the curve to determine the residual's sign. - After setting aside the largest discrepancy, examine both the size and the direction of the remaining deviations.

Solution

1. Compare each measured point with the model curve at the same horizontal distance. Point \(D\) has by far the largest vertical separation from \(q\). 2. At \(D\), the measured height is about \(10\,\text{ft}\), while the model predicts about \(16\,\text{ft}\). The residual is therefore about \(-6\,\text{ft}\). 3. The residual is negative because \(D\) lies below the model curve. 4. After removing \(D\), each remaining point lies within about \(1\,\text{ft}\) of \(q\), with some points above and some below the curve. 5. Thus, the remaining measurements support \(q\) as a reasonable model over the displayed interval; they show small residuals without a one-sided pattern.

Answer

a) \(D\) b) Negative, approximately \(-6\,\text{ft}\) c) Yes. After removing \(D\), the other six points are all within about \(1\,\text{ft}\) of the model and occur on both sides of the curve, so their residuals are small without a systematic one-sided pattern.
Quadratic models and interpretation 102
A community theater expects to sell \(150\) tickets at \(\$10\) each. For every \(\$1\) increase in ticket price, it expects to sell \(10\) fewer tickets. Choose a variable for the number of \(\$1\) increases. Write a quadratic model for total ticket revenue in standard form.

Hints

- Choose a variable for the number of price changes, not for the revenue itself. - How do the price and ticket count each change when the variable increases by one? - Multiply price by the expected number of sales before expanding.

Solution

1. Let \(x\) be the number of \(\$1\) price increases. 2. Then the price is \(10+x\) dollars and the expected number of tickets is \(150-10x\). 3. Revenue is price times tickets: \(R(x)=(10+x)(150-10x)\). 4. Expanding gives \(R(x)=-10x^2+50x+1500\).

Answer

For example, let \(x\) be the number of \(\$1\) price increases. Then \(R(x)=-10x^2+50x+1500\) dollars.
Quadratic models and interpretation 103
A pottery studio estimates the cost of firing \(n\) batches of mugs with a quadratic rule \(C(n)=an^2+bn+c\). The estimated costs are shown below. Find the rule. <table><tr><th>\(n\) (batches)</th><th>0</th><th>1</th><th>2</th></tr><tr><th>\(C(n)\) (dollars)</th><td>6</td><td>12</td><td>22</td></tr></table>

Hints

- Which table value gives the constant term immediately? - Use the other two rows to find equations for the two remaining coefficients. - Check the completed rule against all the costs.

Solution

1. Since \(C(0)=6\), the constant term is \(c=6\). 2. Using \(C(1)=12\) gives \(a+b=6\). Using \(C(2)=22\) gives \(4a+2b=16\), or \(2a+b=8\). 3. Subtracting the equations gives \(a=2\), and then \(b=4\). 4. Therefore, \(C(n)=2n^2+4n+6\). This matches all three table values.

Answer

\(C(n)=2n^2+4n+6\)
Quadratic models and interpretation 104
A pop-up shop simulates the number of people waiting in line over its first \(4\) minutes. <table><tr><th>\(t\) (minutes)</th><th>0</th><th>1</th><th>2</th><th>3</th><th>4</th></tr><tr><th>Simulated people waiting</th><td>5</td><td>11</td><td>13</td><td>11</td><td>5</td></tr></table> Two proposed models are \(Q(t)=-2(t-2)^2+13\) and \(L(t)=5+2t\). a) Which model matches all five simulated counts? Check all five values for your chosen model and show one value that the other model gets wrong. b) Use the chosen model to predict the count at \(t=6\). Explain whether that prediction makes sense.

Hints

- Work out each model's predictions at the times in the table. - A match at one time is not enough. Check all five times before choosing. - What limits must a count of people satisfy, especially when predicting beyond the table?

Solution

1. The quadratic gives \(Q(0)=5\), \(Q(1)=11\), \(Q(2)=13\), \(Q(3)=11\), and \(Q(4)=5\), matching every table value. 2. The linear model gives \(L(1)=7\) and \(L(4)=13\), which do not match the table; choose \(Q\). 3. Extrapolating gives \(Q(6)=-2(6-2)^2+13=-19\). 4. A negative number of people is impossible, and \(t=6\) is beyond the simulated \(0\)-to-\(4\)-minute period. The prediction should not be trusted.

Answer

a) \(Q\) matches all five values: \(Q(0)=5\), \(Q(1)=11\), \(Q(2)=13\), \(Q(3)=11\), and \(Q(4)=5\). The other model fails, for example \(L(1)=7\) instead of \(11\). b) \(Q(6)=-19\); it is not a sensible prediction because it is negative and beyond the simulation's time range.
Quadratic models and interpretation 105
A drone follows an automated climb-and-descent path. Its recorded heights are: <table> <tr><td>Time \(t\) (\(\text{s}\))</td><td>1</td><td>2</td><td>3</td></tr> <tr><td>Height \(h\) (\(\text{m}\))</td><td>15</td><td>18</td><td>17</td></tr> </table> The height can be modeled by a quadratic function. a) Find the function \(h(t)\). b) What was the drone's height at \(t = 0\)? c) When does the drone reach the ground, where \(h = 0\)? Round to the nearest hundredth of a second.

Hints

- Use the three data points to create a system for \(a\), \(b\), and \(c\). - How can subtracting equations reduce the system? - What height represents landing? - Which quadratic-equation solution is meaningful as time?

Solution

1. Let \(h(t) = at^2 + bt + c\). Substituting the three data points gives \(a + b + c = 15\), \(4a + 2b + c = 18\), and \(9a + 3b + c = 17\). 2. Subtract consecutive equations: \(3a + b = 3\) and \(5a + b = -1\). Their difference gives \(2a = -4\), so \(a = -2\). Then \(b = 9\), and \(c = 8\). 3. The model is \(h(t) = -2t^2 + 9t + 8\). 4. The initial height is \(h(0) = 8\,\text{m}\). 5. Solve \(-2t^2 + 9t + 8 = 0\): \(t = \frac{9 \pm \sqrt{145}}{4}\). The positive solution is \(t \approx 5.26\), so the drone reaches the ground after about \(5.26\,\text{s}\).

Answer

a) \(h(t) = -2t^2 + 9t + 8\) b) \(8\,\text{m}\) c) About \(5.26\,\text{s}\)
Quadratic models and interpretation 106
A low bridge arch is modeled by \(f(x)=ax^2+c\). The arch is \(40\,\text{ft}\) wide at road level and \(10\,\text{ft}\) high at its center. The origin is on the road directly below the highest point. a) Find the quadratic model. b) Find the arch's height \(15\,\text{ft}\) horizontally from the center. c) A delivery truck is \(6\,\text{ft}\) wide and \(9.5\,\text{ft}\) high. Will it fit if it drives exactly through the center? Explain.

Hints

- Use the maximum and the two points where the arch meets the road. - The truck's full width matters, not just the clearance above its center. - Which horizontal positions give the lowest clearance over the truck? - Compare that clearance with the truck's height.

Solution

1. The vertex is \((0,10)\), so \(c=10\). The road-level zeros are at \(x=-20\) and \(x=20\). 2. Substituting \((20,0)\) gives \(0=400a+10\), so \(a=-0.025\) and \(f(x)=-0.025x^2+10\). 3. At \(x=15\), the arch height is \(f(15)=-0.025\cdot 15^2+10=4.375\,\text{ft}\). 4. The centered truck's edges lie at \(x=-3\) and \(x=3\). The lowest clearance across its width is \(f(3)=10-0.025\cdot9=9.775\,\text{ft}\). 5. Since \(9.775\,\text{ft}>9.5\,\text{ft}\), the truck fits in this model.

Answer

a) \(f(x)=-0.025x^2+10\) b) \(4.375\,\text{ft}\) c) Yes. The clearance at the truck's outer edges is \(9.775\,\text{ft}\), which is more than \(9.5\,\text{ft}\).
Quadratic models and interpretation 107
The silver ratio is defined using two positive lengths \(a\) and \(b\), where \(\delta=\frac{a}{b}\) and \(\frac{2a+b}{a}=\frac{a}{b}\). a) Show that \(\delta^2-2\delta-1=0\). b) Find the exact value of \(\delta\). Explain why only one algebraic solution is possible for a ratio of positive lengths.

Hints

- Split the left-hand fraction into two terms. - How is \(\frac{b}{a}\) related to \(\delta\)? - Check which algebraic root matches the stated lengths.

Solution

1. Rewrite \(\frac{2a+b}{a}=2+\frac{b}{a}=2+\frac{1}{\delta}\). 2. Thus \(2+\frac{1}{\delta}=\delta\). Multiplying by \(\delta\) gives \(\delta^2-2\delta-1=0\). 3. The quadratic formula gives \(\delta=\frac{2\pm\sqrt{4+4}}{2}=1\pm\sqrt{2}\). 4. Since \(a\) and \(b\) are positive lengths, \(\delta>0\); reject \(1-\sqrt{2}<0\).

Answer

a) \(\delta^2-2\delta-1=0\) b) \(\delta=1+\sqrt{2}\). A ratio of positive lengths cannot be negative.
Quadratic models and interpretation 108
A decorative fountain's water stream starts at \((0, 0)\) and reaches a maximum height of \(4\,\text{m}\) at a horizontal distance of \(2\,\text{m}\). a) Find the quadratic function in the form \(f(x) = ax^2 + bx\). b) How far from the outlet does the water return to the surface? c) The pump is adjusted so that the new stream has the same leading coefficient \(a\) but twice the horizontal range. Determine how the maximum height changes.

Hints

- Use the maximum point to write vertex form. - Substitute the starting point to find \(a\). - If the new range is doubled, where is the second zero? - The vertex lies midway between the zeros.

Solution

1. Use vertex form with vertex \((2, 4)\): \(f(x) = a(x - 2)^2 + 4\). 2. Since the stream passes through \((0, 0)\), \(0 = a(0 - 2)^2 + 4\), so \(4a = -4\) and \(a = -1\). 3. Expand: \(f(x) = -(x - 2)^2 + 4 = -x^2 + 4x\). 4. Factor \(f(x) = -x(x - 4)\). The zeros are \(x = 0\) and \(x = 4\), so the water returns to the surface \(4\,\text{m}\) from the outlet. 5. Doubling the range places the second zero at \(x = 8\). With the same leading coefficient, the new function is \(g(x) = -x(x - 8) = -x^2 + 8x\). 6. The new vertex lies midway between the zeros at \(x = 4\). Its height is \(g(4) = -4^2 + 8 \cdot 4 = 16\). The maximum height increases from \(4\,\text{m}\) to \(16\,\text{m}\), so it is quadrupled.

Answer

a) \(f(x) = -x^2 + 4x\) b) \(4\,\text{m}\) c) The maximum height quadruples, increasing from \(4\,\text{m}\) to \(16\,\text{m}\).
Quadratic models and interpretation 109
Two model rockets follow paths modeled by \(f(x) = -0.05x^2 + 2x\) and \(g(x) = -0.05x^2 + 4x\), where \(x\) is horizontal distance and each output is height, all in meters. a) Find the maximum height and horizontal range of each rocket. b) Compare the results. For a function \(y = ax^2 + bx\) with a fixed negative value of \(a\), what happens to the range and maximum height when \(b\) is doubled? Justify your conclusion algebraically.

Hints

- Factor out \(x\) to find each pair of zeros. - The vertex lies midway between the zeros. - Write the nonzero zero and the vertex height in terms of \(a\) and \(b\).

Solution

1. For \(f\), the vertex occurs at \(x = -\frac{2}{2 \cdot (-0.05)} = 20\). Then \(f(20) = -0.05 \cdot 20^2 + 2 \cdot 20 = 20\), so the maximum height is \(20\,\text{m}\). 2. Factor \(f(x) = x(-0.05x + 2)\). The zeros are \(x = 0\) and \(x = 40\), so the range is \(40\,\text{m}\). 3. For \(g\), the vertex occurs at \(x = -\frac{4}{2 \cdot (-0.05)} = 40\). Then \(g(40) = -0.05 \cdot 40^2 + 4 \cdot 40 = 80\), so the maximum height is \(80\,\text{m}\). 4. Factor \(g(x) = x(-0.05x + 4)\). The zeros are \(x = 0\) and \(x = 80\), so the range is \(80\,\text{m}\). 5. In general, the nonzero zero of \(ax^2 + bx = x(ax + b)\) is \(x = -\frac{b}{a}\). With \(a\) fixed, doubling \(b\) doubles the range. 6. The vertex height is \(-\frac{b^2}{4a}\). With \(a < 0\) fixed, doubling \(b\) multiplies the maximum height by \(2^2 = 4\).

Answer

a) For \(f\): maximum height \(20\,\text{m}\), range \(40\,\text{m}\) For \(g\): maximum height \(80\,\text{m}\), range \(80\,\text{m}\) b) Doubling \(b\) doubles the range and quadruples the maximum height when \(a\) remains fixed and negative.
Quadratic models and interpretation 110
Two identical rectangular community garden plots will be placed side by side and share one interior fence. A total of \(120\,\text{ft}\) of fencing is available for the outside boundary and the divider. Find the dimensions of the entire rectangular layout that maximize the total planting area. Determine whether the maximizing layout is a square.

Hints

- Draw the two plots and count the two outer side fences plus the shared divider. - Write the fencing constraint using the depth and total width. - Express the total area as a quadratic in one variable. - Compare the two maximizing dimensions to decide whether the layout is square.

Solution

1. Let \(x\) be the depth of the layout. Three fence segments have length \(x\): the two outer sides and the divider. Let \(y\) be the total width, so two outer fence segments have length \(y\). 2. The fencing constraint is \(3x + 2y = 120\), so \(y = 60 - 1.5x\). 3. The total area is \(A(x) = xy = x(60 - 1.5x) = -1.5x^2 + 60x\). 4. The maximum occurs at the vertex: \(x = -\frac{60}{2 \cdot (-1.5)} = 20\). Then \(y = 60 - 1.5 \cdot 20 = 30\). 5. The maximum total area is \(20 \cdot 30 = 600\,\text{ft}^2\). Since \(20 \neq 30\), the entire layout is not a square.

Answer

The maximizing layout is \(20\,\text{ft}\) by \(30\,\text{ft}\), with total area \(600\,\text{ft}^2\). It is not a square.
Quadratic models and interpretation 111
The underside of a stone bridge is modeled by a parabola. The arch is \(12\,\text{m}\) wide at ground level. At a point \(2\,\text{m}\) horizontally from either ground-level support, the clearance is \(4\,\text{m}\). A centered rectangular truck is \(3.2\,\text{m}\) wide and \(4.5\,\text{m}\) high. Determine algebraically whether the truck can pass beneath the bridge.

Hints

- Use the two ground-level supports as the zeros of the quadratic. - Substitute the known clearance point to determine the leading coefficient. - Find the horizontal positions of the truck's outer edges and evaluate the arch height there.

Solution

1. Place the left support at \((0, 0)\) and the right support at \((12, 0)\). Write the arch in intercept form: \(f(x) = ax(x - 12)\). 2. Use the point \((2, 4)\): \(4 = a \cdot 2 \cdot (2 - 12) = -20a\), so \(a = -0.2\). Therefore, \(f(x) = -0.2x(x - 12) = -0.2x^2 + 2.4x\). 3. The bridge center is at \(x = 6\). A centered \(3.2\,\text{m}\)-wide truck extends from \(x = 6 - 1.6 = 4.4\) to \(x = 6 + 1.6 = 7.6\). 4. The lowest clearance above the truck occurs at its outer edges. By symmetry, evaluate one edge: \(f(4.4) = -0.2 \cdot 4.4^2 + 2.4 \cdot 4.4 = 6.688\,\text{m}\). 5. Since \(6.688\,\text{m} > 4.5\,\text{m}\), the truck can pass beneath the bridge while centered.

Answer

Yes. The clearance at the truck's outer top corners is \(6.688\,\text{m}\), which is greater than the truck's height of \(4.5\,\text{m}\).
Quadratic models and interpretation 112
A rectangular building lot has an area of \(1500\,\text{ft}^2\). If its length were increased by \(10\,\text{ft}\) and its width were decreased by \(5\,\text{ft}\), the area would remain unchanged. a) Write equations that model the original and changed lots. b) Eliminate one variable so that your work includes a quadratic equation in one original dimension. Solve the quadratic and identify the physically valid root. c) Find the original length and width of the lot.

Hints

- Represent each area as length times width, once before the change and once after it. - Use one equation to express one original dimension in terms of the other. - After substitution, clear any denominator and simplify until the required quadratic appears. - Check the roots against the fact that both dimensions must be positive.

Solution

1. Let \(l\) be the original length and \(w\) the original width, in feet. The two area conditions are \(lw=1500\) and \((l+10)(w-5)=1500\). 2. From \(lw=1500\), write \(w=\frac{1500}{l}\). Substitute into the changed-area equation: \((l+10)\left(\frac{1500}{l}-5\right)=1500\). 3. Multiply by \(l\) and simplify: \((l+10)(1500-5l)=1500l\), which gives \(l^2+10l-3000=0\). 4. Factor: \((l-50)(l+60)=0\). Thus, \(l=50\) or \(l=-60\). 5. A length must be positive, so the valid root is \(l=50\). Then \(w=\frac{1500}{50}=30\).

Answer

a) \(lw=1500\) and \((l+10)(w-5)=1500\) b) One valid eliminated equation is \(l^2+10l-3000=0\), with roots \(l=50\) and \(l=-60\). The physically valid root is \(l=50\). c) The original lot was \(50\,\text{ft}\) long and \(30\,\text{ft}\) wide.
Quadratic models and interpretation 113
A parking lot currently has \(300\) spaces arranged in equal rows. During a renovation, the number of rows will increase by \(5\), and each row will contain \(2\) more spaces. After the renovation, the lot will have \(440\) spaces. a) Write equations that model the original and renovated arrangements. b) Eliminate one variable so that your work includes a quadratic equation in the original number of rows. Solve the quadratic. c) Find the possible numbers of rows after the renovation, and explain why both answers are mathematically valid.

Hints

- Model each arrangement as number of rows times spaces per row. - Use the original-total equation to express spaces per row in terms of the number of rows. - Substitute into the renovated-total equation and simplify to the requested quadratic. - After solving, translate each original row count to the corresponding renovated row count and check both arrangements.

Solution

1. Let \(r\) be the original number of rows and \(s\) the original number of spaces per row. The two arrangements give \(rs=300\) and \((r+5)(s+2)=440\). 2. From \(rs=300\), write \(s=\frac{300}{r}\). Substitute into the renovated-arrangement equation: \((r+5)\left(\frac{300}{r}+2\right)=440\). 3. Multiply by \(r\) and simplify: \((r+5)(300+2r)=440r\), so \(r^2-65r+750=0\). 4. Factor: \((r-15)(r-50)=0\). Thus, \(r=15\) or \(r=50\). 5. After adding \(5\) rows, the renovated lot could have \(20\) rows or \(55\) rows. 6. If \(r=15\), then \(s=20\), so the renovated arrangement is \(20\) rows of \(22\) spaces, giving \(20\cdot22=440\). If \(r=50\), then \(s=6\), so the renovated arrangement is \(55\) rows of \(8\) spaces, giving \(55\cdot8=440\). Both configurations satisfy all stated conditions.

Answer

a) \(rs=300\) and \((r+5)(s+2)=440\) b) \(r^2-65r+750=0\), so \(r=15\) or \(r=50\). c) The renovated parking lot could have \(20\) rows or \(55\) rows. Both answers satisfy the original and renovated space totals.
Quadratic models and interpretation 114
A rectangular piece of cardboard is \(10\,\text{cm}\) longer than it is wide. A \(2\,\text{cm}\) square is cut from each corner, and the sides are folded up to form an open-top box. The box has a volume of \(192\,\text{cm}^3\). a) Let \(x\) be the original width. Write a quadratic equation that models the box volume and state the physical domain for \(x\). b) Solve the quadratic equation and determine the original length and width of the cardboard.

Hints

- Cutting a square from each corner changes both base dimensions by twice the cut size. - Express the folded box dimensions using the original width variable. - What restriction must the original width satisfy so the base dimensions remain positive? - Compare each algebraic root with that restriction.

Solution

1. Let \(x\) be the original width in centimeters. The original length is \(x+10\). 2. After the corner squares are removed, the box is \(2\,\text{cm}\) high and has base dimensions \(x-4\) and \(x+6\). The cardboard must satisfy \(x>4\). 3. The volume condition is \(2(x-4)(x+6)=192\). 4. Dividing by \(2\) and expanding gives \(x^2+2x-120=0\). 5. Factor: \((x-10)(x+12)=0\), so \(x=10\) or \(x=-12\). 6. Only \(x=10\) satisfies the physical domain. The original width is \(10\,\text{cm}\), and the original length is \(20\,\text{cm}\).

Answer

a) \(2(x-4)(x+6)=192\), equivalently \(x^2+2x-120=0\), with \(x>4\) b) \(20\,\text{cm}\) long and \(10\,\text{cm}\) wide
Quadratic models and interpretation 115
The number of diagonals \(d\) in a convex polygon with \(n\) vertices is given by \(d=\frac{n(n-3)}{2}\). a) A polygon has exactly \(90\) diagonals. Find its number of vertices. b) When one vertex is added to a polygon with \(n\) vertices, how many additional diagonals are created? Write the increase in terms of \(n\), and then evaluate it for the polygon in part a).

Hints

- a) Substitute \(90\) for \(d\) and solve the resulting quadratic equation. - b) Replace \(n\) with \(n+1\) in the diagonal formula. - Subtract the original formula from the new formula. - Consider why adding a vertex also changes one former side into a diagonal.

Solution

1. For part a), set the diagonal formula equal to \(90\): \(\frac{n(n-3)}{2}=90\). 2. Rearrange: \(n^2-3n-180=0\). 3. Factor: \((n-15)(n+12)=0\), so \(n=15\) or \(n=-12\). 4. A polygon cannot have a negative number of vertices, so \(n=15\). 5. For part b), a polygon with \(n+1\) vertices has \(d_{n+1}=\frac{(n+1)(n-2)}{2}\) diagonals. 6. Find the increase: \(d_{n+1}-d_n=\frac{(n+1)(n-2)-n(n-3)}{2}=n-1\). 7. For \(n=15\), the increase is \(15-1=14\) diagonals.

Answer

a) \(15\) vertices b) The increase is \(n-1\) diagonals. For the polygon in part a), the increase is \(14\) diagonals.
Quadratic models and interpretation 116
A \(4\,\text{in} \times 6\,\text{in}\) photo is surrounded by a frame of uniform width. The frame alone has an area of \(24\,\text{in}^2\). a) Find the frame width \(x\). b) A second photo measures \(3\,\text{in} \times 8\,\text{in}\), so it has the same area as the first photo. If the second photo receives a frame of the same width \(x\), will its frame area be greater than, less than, or equal to \(24\,\text{in}^2\)? Justify your answer without solving another quadratic equation.

Hints

- a) Subtract the photo area from the outside rectangle's area. - b) Expand the general frame-area expression before substituting dimensions. - Compare the sums of the two photos' side lengths. - The two photos have equal area, but they do not have equal perimeters.

Solution

1. For part a), the frame area is \((4+2x)(6+2x)-4\cdot6\). Set it equal to \(24\): \((4+2x)(6+2x)-24=24\). 2. Expand and simplify: \(4x^2+20x-24=0\), so \(x^2+5x-6=0\). 3. Factor: \((x-1)(x+6)=0\). Since a width must be positive, \(x=1\,\text{in}\). 4. For a rectangle with side lengths \(a\) and \(b\), a frame of width \(x\) has area \((a+2x)(b+2x)-ab=2x(a+b)+4x^2\). 5. The first photo has \(a+b=4+6=10\), while the second has \(a+b=3+8=11\). 6. With the same positive width \(x\), the larger value of \(a+b\) gives a larger frame area. In fact, the second frame area is \((3+2)(8+2)-24=26\,\text{in}^2\).

Answer

a) \(1\,\text{in}\) b) The second frame area is greater. It is \(26\,\text{in}^2\), because the second photo has the larger sum of side lengths.
Quadratic models and interpretation 117
A tank is filled with \(18\) gallons of pure vinegar. A certain amount is removed and replaced with the same amount of water. After the liquid is thoroughly mixed, the same amount of the mixture is removed and replaced with water again. The tank then contains exactly \(8\) gallons of pure vinegar. How many gallons were removed each time?

Hints

- Find the amount and fraction of vinegar after the first replacement. - The second removal contains the same vinegar fraction as the mixed tank. - Write an expression for the vinegar remaining after both removals. - Check the possible values against the tank capacity.

Solution

1. Let \(x\) be the number of gallons removed each time. 2. After the first removal and replacement, \(18-x\) gallons of vinegar remain, so the vinegar fraction is \(\frac{18-x}{18}\). 3. During the second removal, the amount of vinegar removed is \(x\left(\frac{18-x}{18}\right)\). 4. The vinegar remaining is \((18-x)-x\left(\frac{18-x}{18}\right)=\frac{(18-x)^2}{18}\). 5. Set this equal to \(8\): \(\frac{(18-x)^2}{18}=8\), so \((18-x)^2=144\). 6. Thus, \(18-x=12\) or \(18-x=-12\), giving \(x=6\) or \(x=30\). 7. The amount removed cannot exceed the tank capacity, so \(x=6\) gallons.

Answer

\(6\) gallons were removed each time.

All problems may be used, copied and printed free of charge for school and tutoring, including paid tutoring. Commercial adaptations as well as publication or redistribution on the internet are not permitted.
