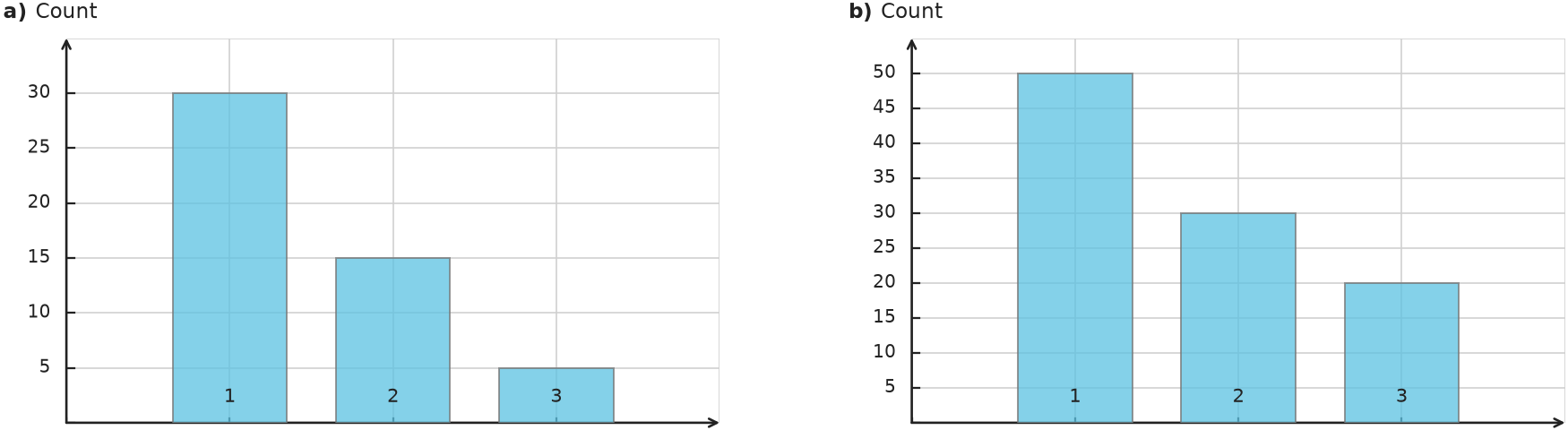

Panels a) and b) show counts for the same three response categories in two groups. Panel a) is Group A and panel b) is Group B.
a) Reconstruct the \(2\times3\) observed table and compute the expected counts under independence.
b) Categories 1 and 3 have raw residuals of the same absolute size in each row. Compute the total chi-square contribution from each of those two categories.
c) Explain why category 3 contributes more even though the raw residual magnitudes tie.

Hints
- Read each panel as one row of the observed two-way table.
- Compare raw residuals first, then remember that chi-square contributions divide squared residuals by expected counts.
- Equal raw departures need not have equal chi-square contributions when their expected counts differ.
Solution
1. The observed rows are Group A \((30,15,5)\) and Group B \((50,30,20)\). The row totals are \(50\) and \(100\), the column totals are \(80,45,25\), and the grand total is \(150\).
2. The expected rows are Group A \((26.67,15,8.33)\) and Group B \((53.33,30,16.67)\), rounded to two decimals.
3. For category 1, the two contributions are approximately \(0.417\) and \(0.208\), totaling \(0.625\).
4. For category 3, the two contributions are approximately \(1.333\) and \(0.667\), totaling \(2.000\).
5. The raw residual magnitudes tie, but category 3 has smaller expected counts. Dividing the same squared residual by smaller expected counts produces larger chi-square contributions.
Answer
a) Observed rows: \((30,15,5)\) and \((50,30,20)\). Expected rows: approximately \((26.67,15,8.33)\) and \((53.33,30,16.67)\).
b) Category 1 contributes \(0.625\); category 3 contributes \(2.000\).
c) Category 3 has smaller expected counts, so the same raw residual size is more substantial after standardization.
